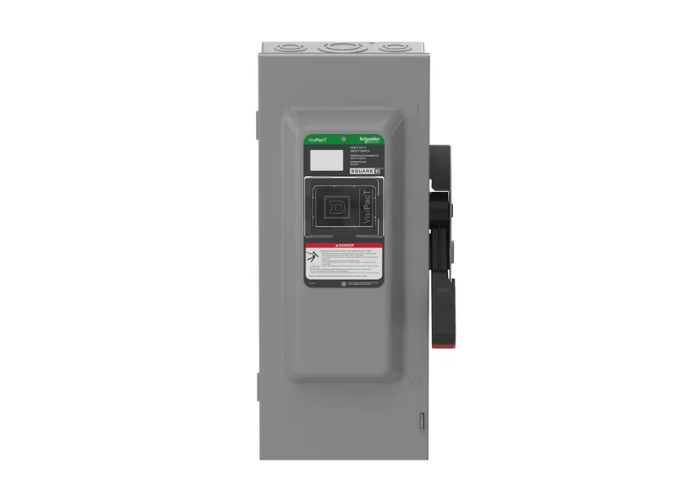

Square D VH363BGL - Fusible Disconnect Switch 600V/100A (3-Pole NEMA 1)

Square D VH363BGL is a fusible safety disconnect switch designed for industrial power distribution protection. The unit features a 600V voltage rating and 100A current capacity in a compact 3-pole configuration with Class J fuse compatibility. Its rugged NEMA 1 enclosure measures 561.42mm (H) x 112.78mm (W) x 78.49mm (D) and weighs 19.84 lb, constructed for durable three-phase operation. UL listed (file E2991), this disconnect meets stringent safety standards for electrical isolation. Typical applications include motor control centers, HVAC systems, and industrial machinery requiring reliable circuit interruption.

Key Features & Specifications

• Type: Fusible safety disconnect switch with single configuration
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 561.42mm H x 112.78mm W x 78.49mm D (22.103" x 4.44" x 3.09")
• Standards: UL listed (file E2991), NEMA 1
• Applications: Industrial power distribution, motor control centers, HVAC systems
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: J
• Wire: 3
• Weight: 19.84 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589414
• GTIN: 03606485894140
