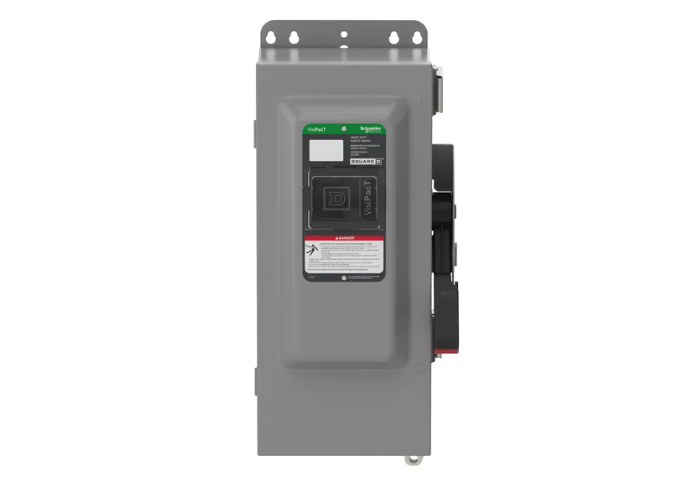

Square D VH363AWKGL is a fusible safety switch designed for providing visible load break isolation and overcurrent protection in industrial power distribution systems. It is rated for 600V AC/DC operation with a 100A current capacity and features a robust three-pole, single-configuration construction with a NEMA 12 enclosure for dust-tight and drip-tight performance. The unit accommodates wire sizes from AWG 14 to 1/0 for both aluminum and copper conductors and is compatible with H, K, R, and J fuse classes. It complies with key industry standards, including UL listing (file E2875) and EU RoHS directives. This disconnect is typically applied in motor control centers, industrial machinery, and three-phase power distribution panels where reliable circuit isolation is critical.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 12 Enclosure
  • Voltage Rating: 600V AC/DC
  • Current Rating: 100A
  • Dimensions: 20.49 in H x 8.92 in W x 7.15 in D (520.45 mm x 226.57 mm x 181.61 mm)
  • Weight: 20.9 lb
  • Standards: UL Listed (File E2875), EU RoHS Compliant
  • Applications: Industrial Motor Control, Power Distribution Panels, Machinery Isolation
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Wire: 3
  • Wire Size: AWG 12 to 1/0, AWG 14 to 1/0 (Aluminum/Copper)
  • NEMA Rating: NEMA 12
  • Fuse Class: H, K, R, J
  • Country of Origin: United States
  • Family: VH


Product Identification
  • UPC: 60648589422
  • GTIN: 03606485894225
