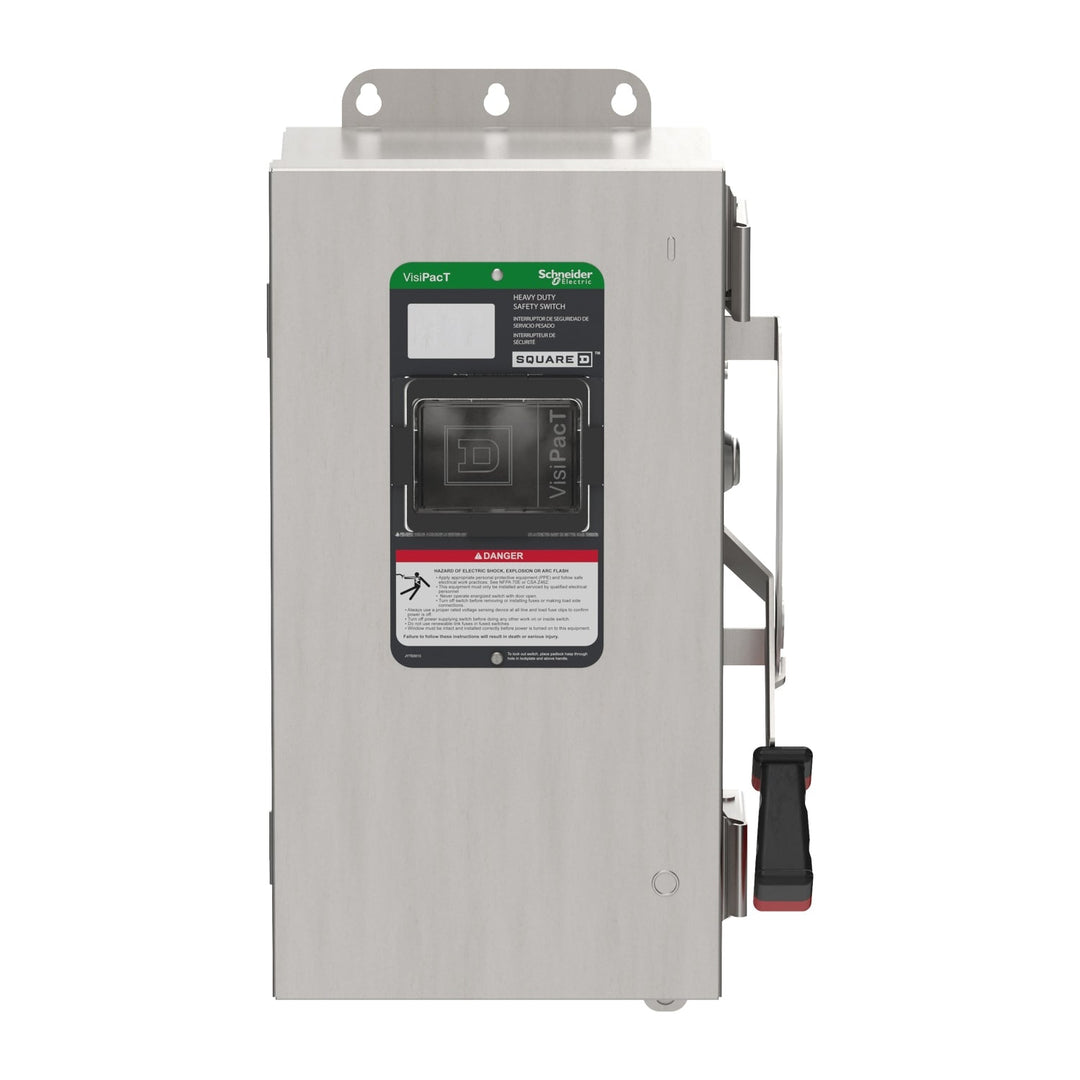

Square D VH362SSGL is a fusible safety switch designed for providing visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC and 60A, featuring a robust NEMA 4X corrosion-resistant enclosure with dimensions of 430.02 mm H x 226.57 mm W x 184.40 mm D and a weight of 20.9 lb. The switch is UL listed (file E2986) and accommodates H, K, R, and J class fuses for flexible protection, accepting copper or aluminum conductors from AWG 14 to AWG 3. Its three-pole, single-configuration design makes it suitable for use in harsh industrial environments requiring reliable circuit isolation and protection.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, NEMA 4X Enclosure
Voltage Rating: 600V AC
Current Rating: 60A
Dimensions: 430.02 mm H x 226.57 mm W x 184.40 mm D (16.93 in x 8.92 in x 7.26 in)
Weight: 20.9 lb
Standards: UL Listed (File E2986)
Applications: Industrial power distribution, motor control, main disconnect
Switch Style: Fusible
Configuration: Single
Poles: 3
Phase: 3
Fuse Class: H, K, R, J
Wire: 3
Wire Size: AWG 14 to AWG 3, AWG 12 to AWG 3 (Copper/Aluminum)
