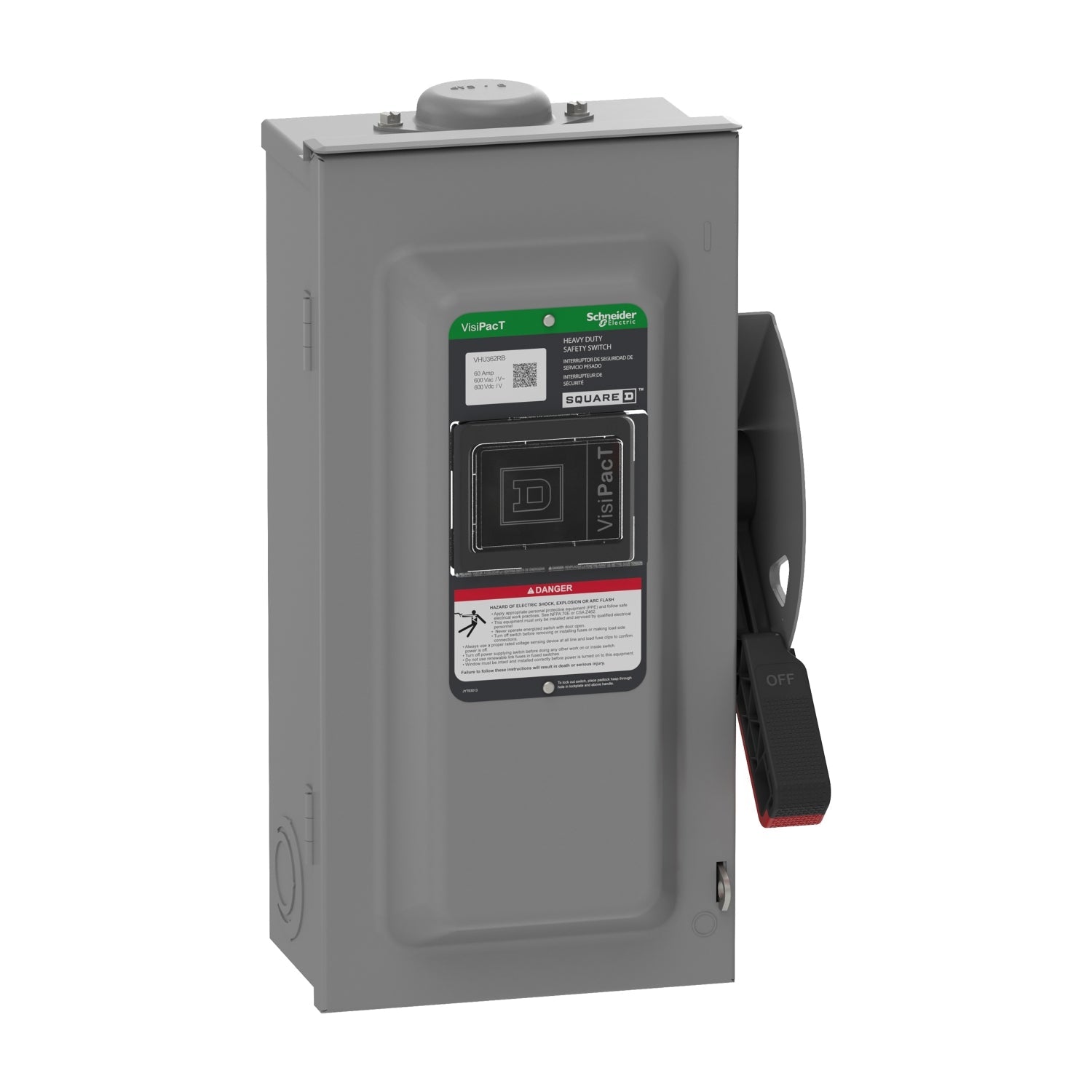

Square D VH362NRB is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial power distribution systems. It features a 600V AC/DC voltage rating and a 60A current rating, housed within a robust NEMA 3R enclosure measuring 468.8 mm H x 230.6 mm W x 178.8 mm D and weighing 16.2 lb. The switch is UL listed (file E2875) and complies with EU RoHS standards, ensuring safe operation in demanding three-phase applications such as motor control centers, HVAC systems, and industrial machinery disconnects.
Key Features & Specifications
Type: Fusible safety disconnect switch, single configuration, 3-pole
Voltage Rating: 600V AC/DC
Current Rating: 60A
Dimensions: 468.8 mm H x 230.6 mm W x 178.8 mm D (18.456 in x 9.08 in x 7.038 in)
Standards: UL Listed (File E2875), EU RoHS Compliant
Applications: Industrial power distribution, motor disconnects, HVAC, machinery
Switch Style: Fusible
Configuration: Single
Phase: 3
Poles: 3
NEMA Rating: NEMA 3R
Fuse Class: H, K, R, J
Wire: 3
Wire Size: AWG 12 to AWG 3, AWG 14 to AWG 3 (Aluminum, Copper)
Weight: 16.239 lb
Country of Origin: United States
Product Identification
UPC: 060648589394
GTIN: 03606485893945
Same-day Shipping Available
Same-day Delivery Availabile
24/7 Customer Support
Square D VH362NRB - Fusible Safety Switch 600V 60A 3-Pole
