Square D VH362DSGL - Fusible Safety Switch 60A 600V (NEMA 4X)

Price
Regular price $1,836.14
Regular price $2,771.00 Sale price $1,836.14
Save $934.86
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

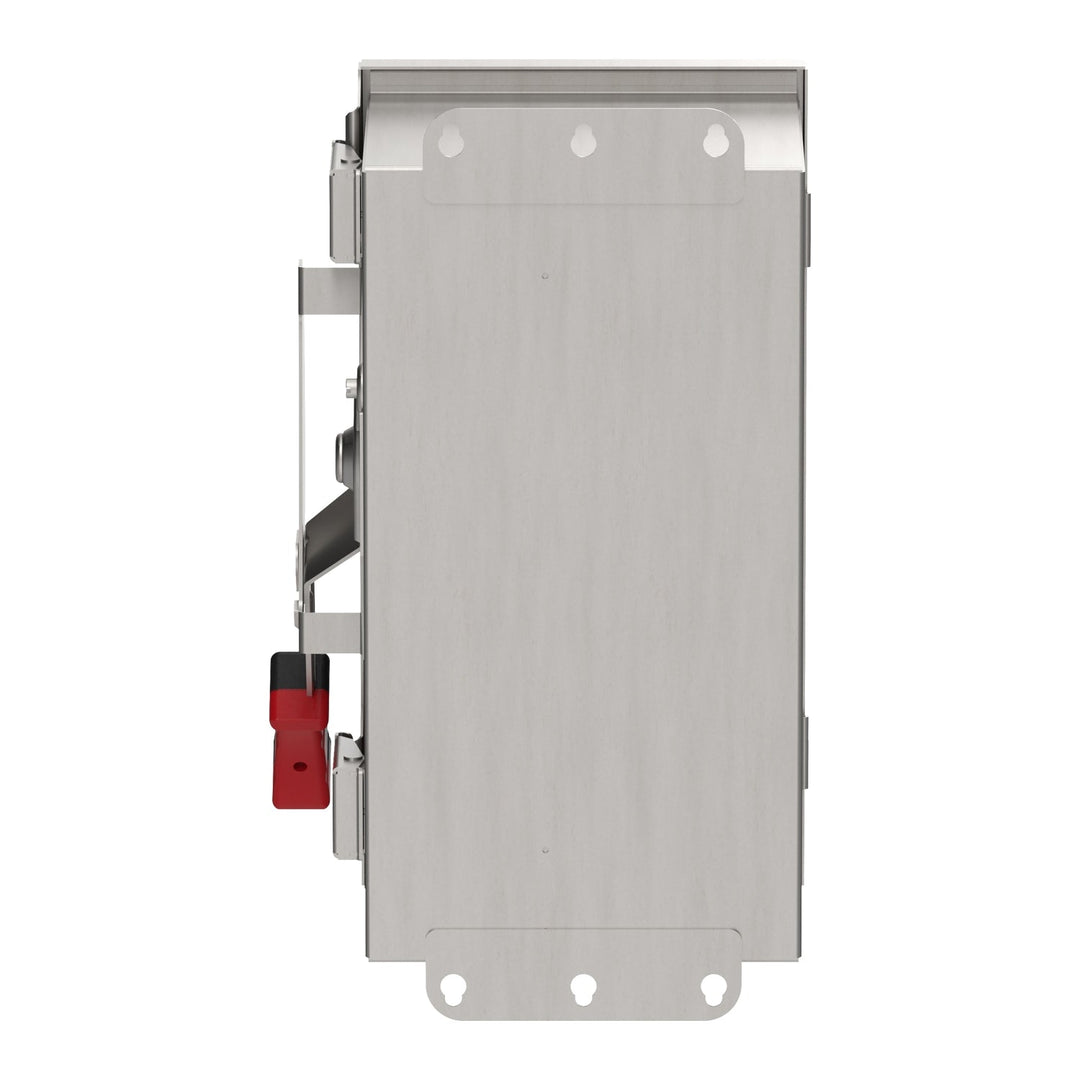

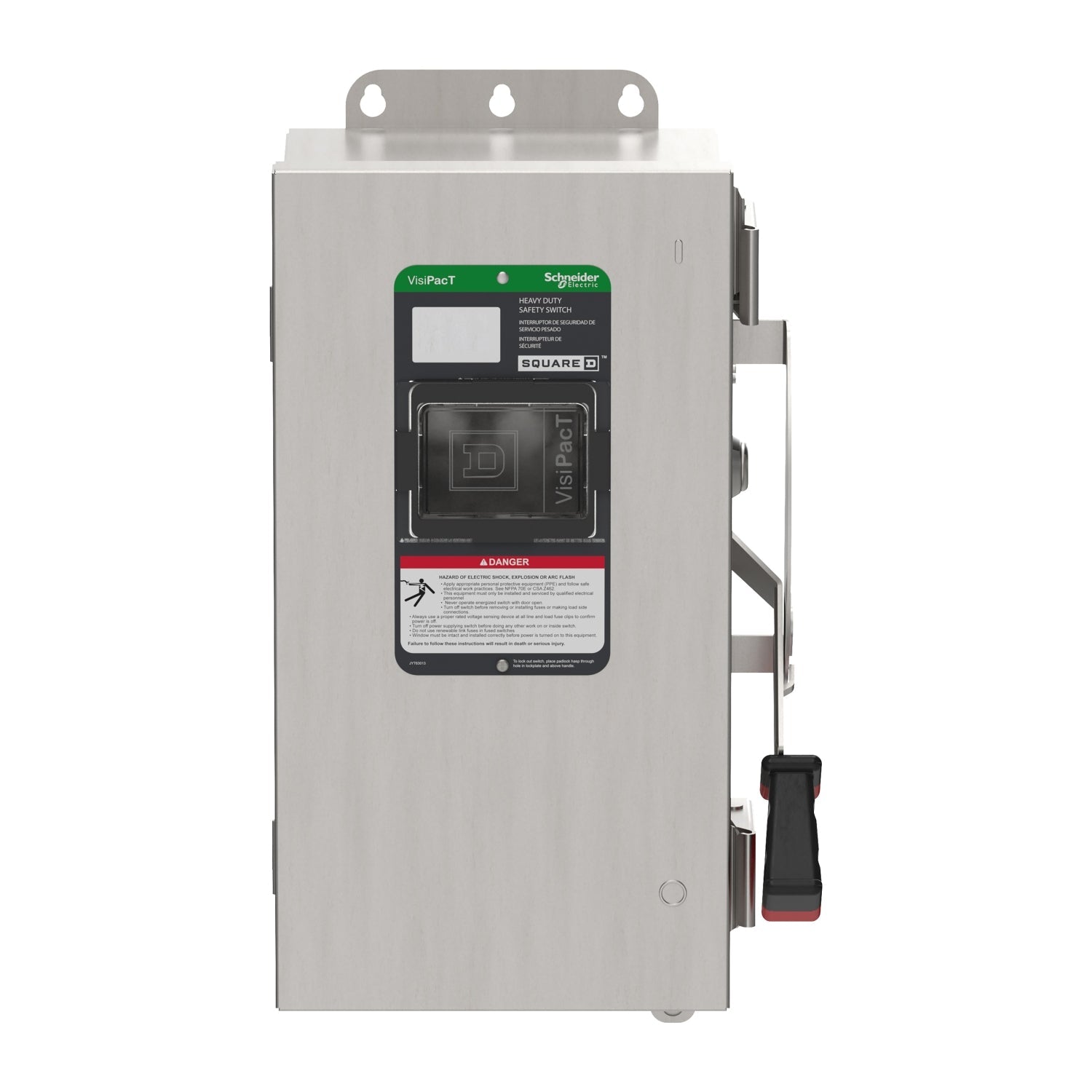

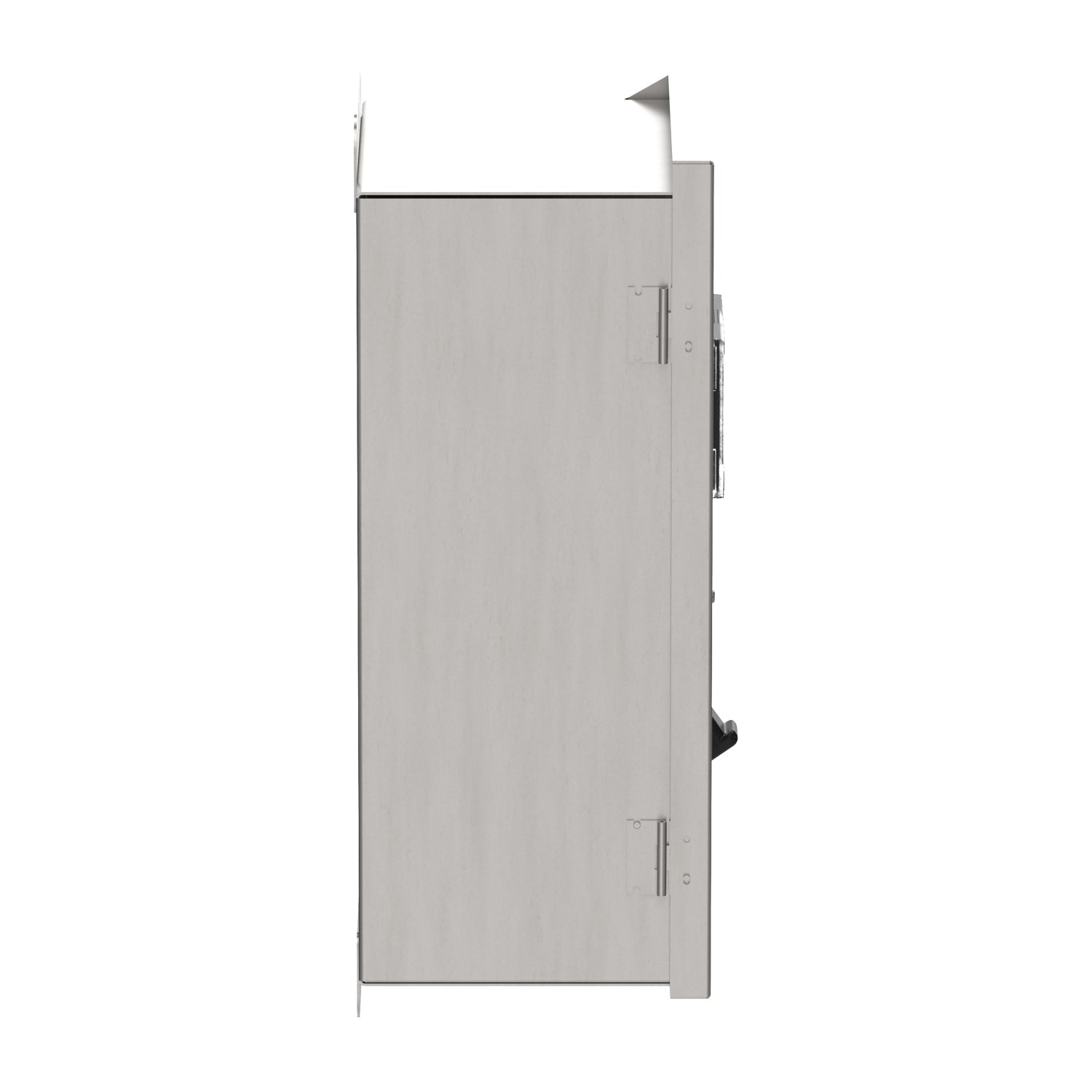

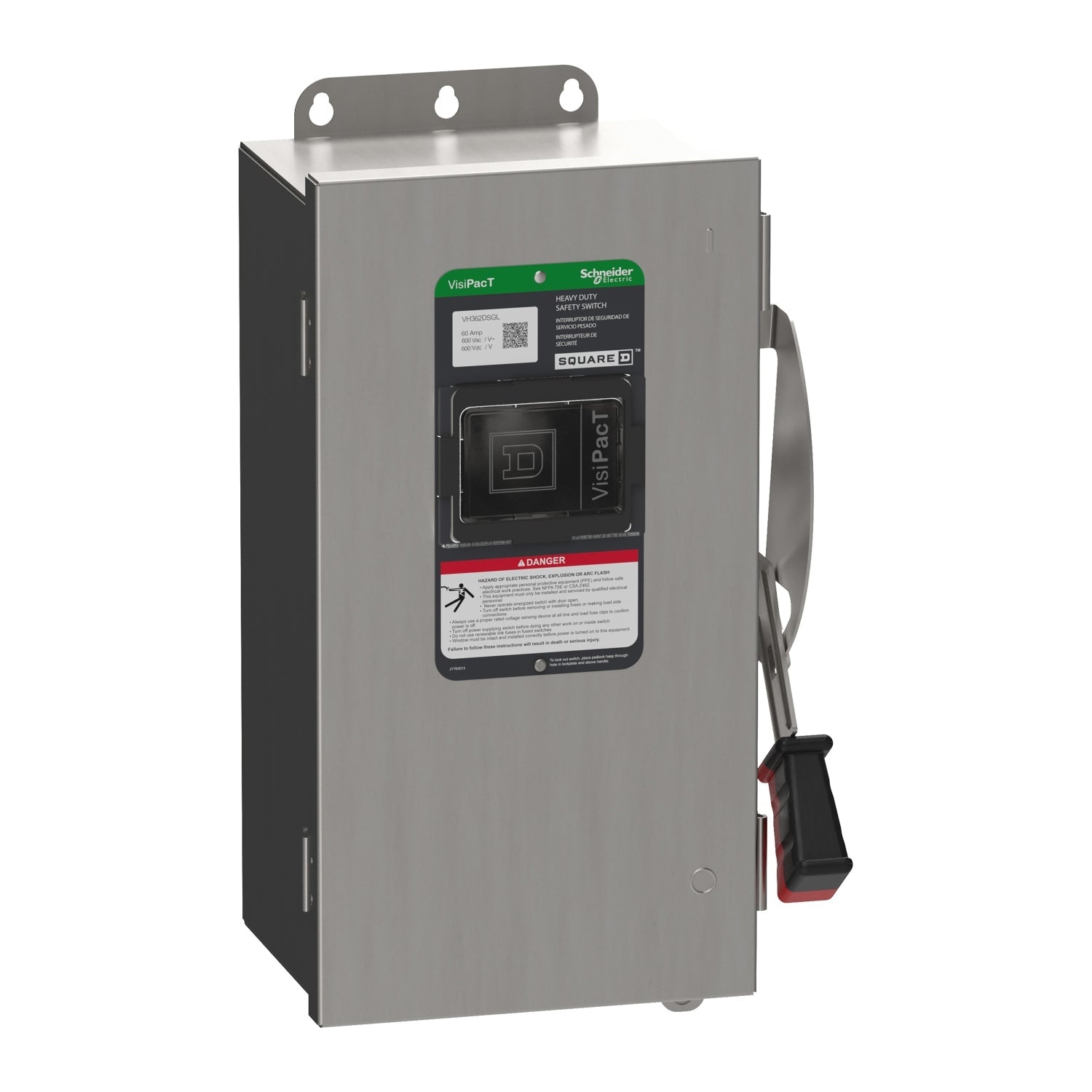

Square D VH362DSGL is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial power distribution. It features a 600V AC/DC voltage rating and a 60A current rating for robust circuit isolation. The unit is constructed with a durable NEMA 4X enclosure measuring 430.02 mm H x 226.57 mm W x 184.40 mm D and weighing 20.9 lb, ensuring protection against corrosion and weather. It complies with EU RoHS and is UL listed (file E2875), meeting stringent safety standards. This three-pole, three-wire switch is typically applied in motor control centers, HVAC systems, and industrial machinery where reliable fused protection is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Single Configuration
  • Voltage Rating: 600V AC/DC
  • Current Rating: 60A
  • Dimensions: 430.02 mm H x 226.57 mm W x 184.40 mm D (16.93 in x 8.92 in x 7.26 in)
  • Weight: 20.9 lb
  • Standards: EU RoHS, UL Listed (File E2875)
  • Applications: Industrial Power Distribution, Motor Control Centers, HVAC Systems
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Wire: 3
  • Wire Size: AWG 14 to AWG 3 (Copper), AWG 12 to AWG 3 (Aluminum)
  • Fuse Class: H, K, R, J
  • NEMA Rating: NEMA 4X
  • Country of Origin: United States
  • Family: VH


Product Identification
  • UPC: 060648589407
  • GTIN: 03606485894072
