Square D VH324NR - Fusible Safety Switch, 200A 3P 240V AC (NEMA 3R)
Square D VH324NR - Fusible Safety Switch, 200A 3P 240V AC (NEMA 3R)
Square D VH324NR - Fusible Safety Switch, 200A 3P 240V AC (NEMA 3R)
Square D VH324NR - Fusible Safety Switch, 200A 3P 240V AC (NEMA 3R)
VH324NR Square D Disconnect 240V ACV 200A Fusible Switch - Essential Electric Supply
Square D VH324NR - Fusible Safety Switch, 200A 3P 240V AC (NEMA 3R)
Square D VH324NR - Fusible Safety Switch, 200A 3P 240V AC (NEMA 3R)
Square D VH324NR - Fusible Safety Switch, 200A 3P 240V AC (NEMA 3R)
Square D VH324NR - Fusible Safety Switch, 200A 3P 240V AC (NEMA 3R)

Square D VH324NR - Fusible Safety Switch, 200A 3P 240V AC (NEMA 3R)

Square D
Price
Save $563.92
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

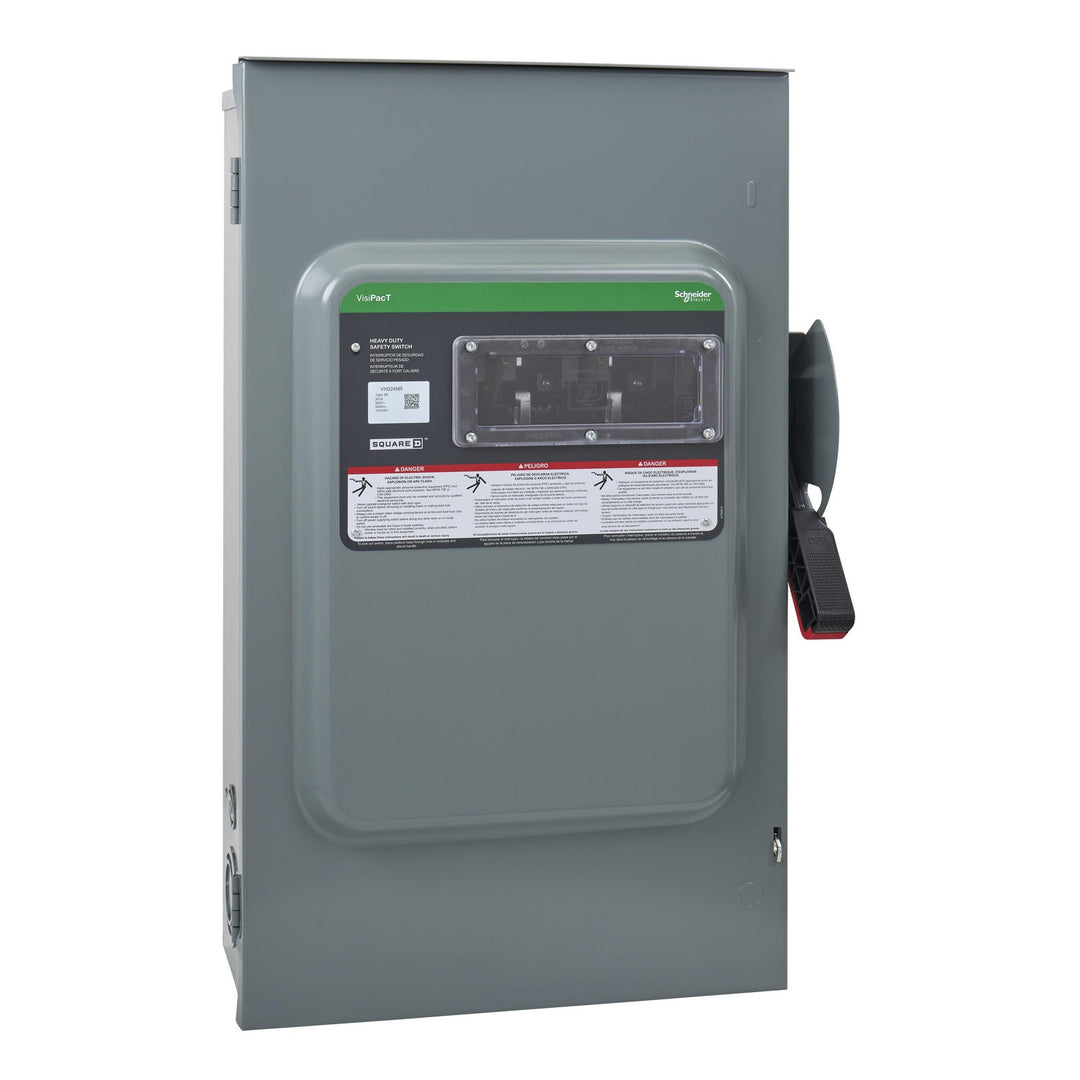

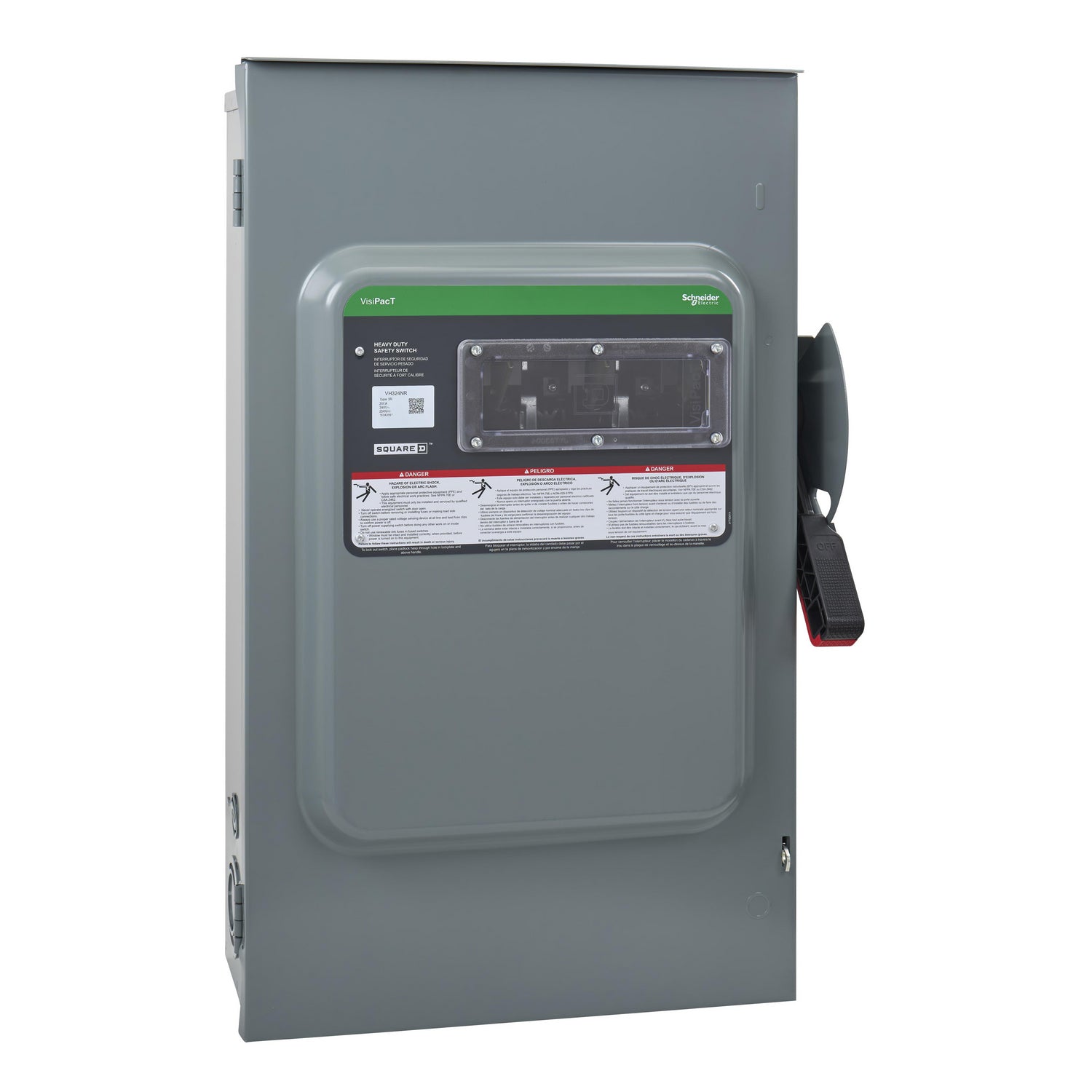

Square D VH324NR is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power distribution systems. It is rated for 240V AC operation with a 200A current capacity, housed in a robust NEMA 3R enclosure measuring 735.08 mm H x 432.21 mm W x 216.05 mm D and weighing 54.5 lb. The switch is UL listed (file E2875) and EU RoHS compliant, ensuring adherence to rigorous safety and environmental standards. Its three-pole, single-configuration design with a fusible switch style accommodates H, K, R, and J-class fuses, making it suitable for protecting motors, feeders, and branch circuits where a reliable, visible break is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 3R Enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Phase: 3
  • Configuration: Single
  • Poles: 3
  • Fuse Class: H, K, R, J
  • Wire Size: AWG 6 to 250 KCMil (Copper/Aluminum)
  • Dimensions: 735.08 mm H x 432.21 mm W x 216.05 mm D (28.94 in x 17.016 in x 8.506 in)
  • Weight: 54.5 lb
  • Standards & Certification: UL Listed (File E2875), EU RoHS
  • Country of Origin: United States


Product Identification
  • UPC: 060648589367
  • GTIN: 03606485893679
