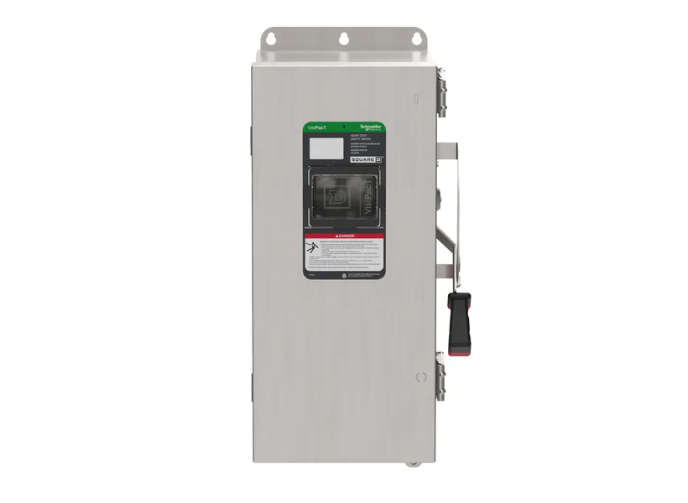

Square D VH323DSGL - Fusible Safety Switch 100A 240V 3-Pole

Price
Regular price $6,591.30
Regular price $5,346.00 Sale price $6,591.30
Save $-1,245.30
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D VH323DSGL is a fusible safety switch designed for providing visible disconnect and overcurrent protection in three-phase industrial power systems. It features a 100A current rating and a 240V voltage rating for robust circuit isolation. The switch is constructed with a durable NEMA 4X enclosure measuring 20.73 in (526.54 mm) H x 9.336 in (237.134 mm) W x 7.2 in (182.9 mm) D and weighing 24.03 lb, built to withstand harsh environments with an operating temperature range of -25 to 70 °C. It is UL listed (file E2939) and accepts a wide range of wire sizes from AWG 14 to 1/0 for both aluminum and copper conductors. This disconnect is typically applied in industrial control panels, motor control centers, and machinery requiring a reliable, code-compliant means of disconnecting power.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, 3-Pole, Single Configuration
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 20.73 in H x 9.336 in W x 7.2 in D (526.54 mm x 237.13 mm x 182.9 mm)
  • Weight: 24.03 lb
  • Standards: UL Listed (File E2939), NEMA 4X Enclosure Rating
  • Applications: Industrial power disconnection, motor control, panelboards
  • Phase: 3
  • Poles: 3
  • Wire Size: AWG 12 to 1/0, AWG 14 to 1/0 (Aluminum, Copper)
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Configuration: Single
  • Switch Style: Fusible
  • Country of Origin: United States


Product Identification
  • UPC: 060648589365
  • GTIN: 03606485893655
