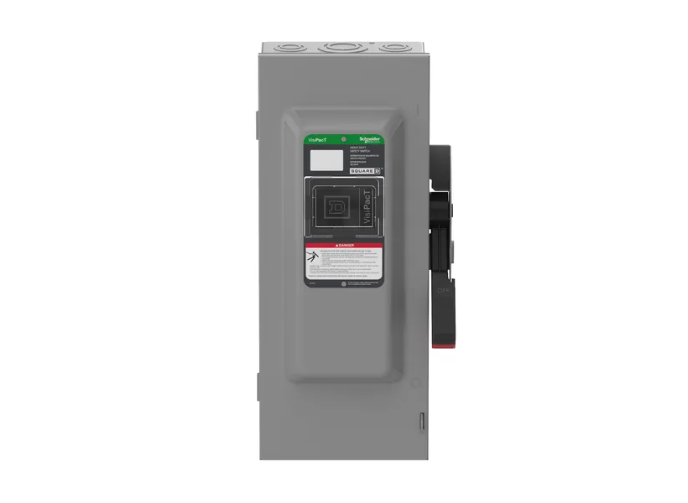

Square D VH323BGL - Fusible Disconnect Switch 100A 3-Pole (240V NEMA 1)

Square D VH323BGL is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This 3-pole switch operates at 240V AC with a 100A current rating, providing robust electrical control in three-phase systems. The unit features a compact NEMA 1 enclosure measuring 561.42 mm height × 112.78 mm width × 78.49 mm depth and weighs 19.84 lb, constructed for durable industrial service. It carries UL certification (file E2937) and complies with industry safety standards for disconnect switches. Typical applications include motor control centers, industrial machinery, and electrical distribution systems requiring Class J fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch with 3-pole configuration
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 561.42 mm H × 112.78 mm W × 78.49 mm D
• Standards: UL listed (file E2937), NEMA 1 rated
• Applications: Industrial machinery, motor control centers, electrical distribution systems
• Switch Type: Fusible disconnect
• Configuration: Single
• Phase: 3-phase
• Poles: 3
• Fuse Class: J
• Wire: 3-wire
• Enclosure: NEMA 1
• Weight: 19.84 lb
• Country of Origin: United States
• Family: VH series

Product Identification

• UPC: 060648589360
• GTIN: 03606485893600
