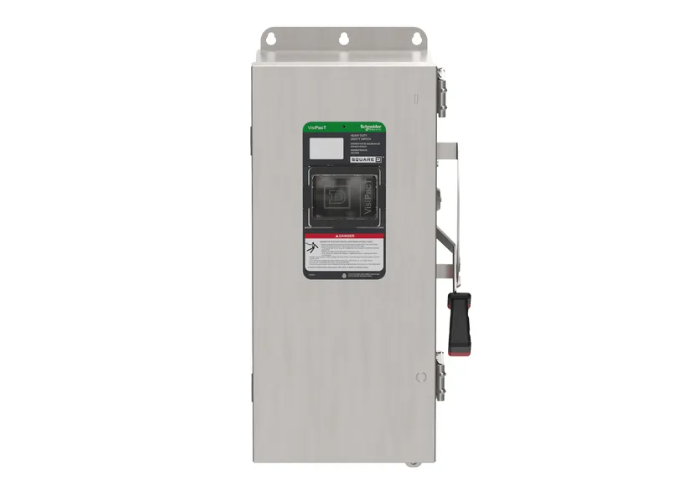

Square D VH323BDSGL - Fusible Disconnect Switch 100A 3-Pole (NEMA 4X Enclosure)

Square D VH323BDSGL is a fusible safety disconnect switch designed for reliable circuit protection in demanding industrial environments. This 3-pole switch operates at 240V AC with a 100A current rating, providing robust electrical isolation capabilities. The unit features a compact design measuring 554.74 mm height × 112.78 mm width × 78.49 mm depth and weighs 24.03 lb, constructed with NEMA 4X rated enclosure for protection against corrosion, moisture, and dust. UL listed under file E2936, this disconnect switch meets rigorous safety standards for industrial electrical systems. Typical applications include motor control centers, industrial machinery, and three-phase power distribution systems requiring Class J fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch with 3-pole configuration
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 554.74 mm H × 112.78 mm W × 78.49 mm D
• Weight: 24.03 lb
• Standards: UL Listed (File E2936)
• Applications: Industrial machinery, motor control centers, three-phase power distribution
• Switch Type: Fusible disconnect
• Configuration: Single unit
• Phase: 3-phase
• Poles: 3
• Fuse Class: J
• Wire: 3-wire configuration
• NEMA Rating: 4X (corrosion, moisture, and dust resistant)
• Enclosure: NEMA 4X rated
• Certification: UL listed
• Country of Origin: United States
• Family: VH series

Product Identification

• UPC: 060648589363
• GTIN: 03606485893631
