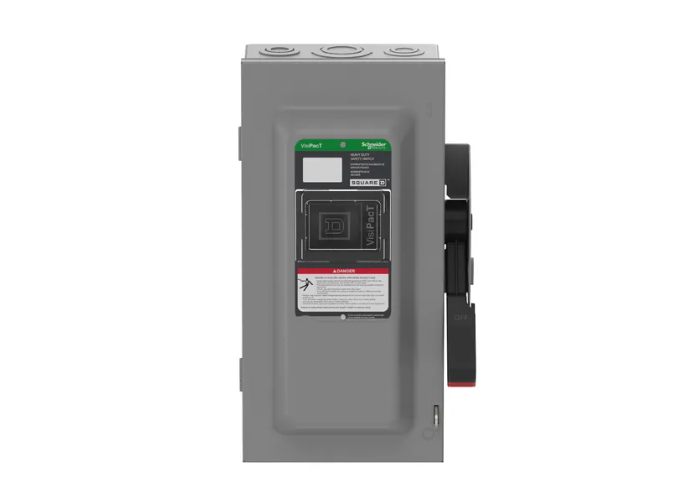

Square D VH322BGL - Fusible Safety Switch 60A 240V 3-Pole
Square D VH322BGL - Fusible Safety Switch 60A 240V 3-Pole
Square D VH322BGL - Fusible Safety Switch 60A 240V 3-Pole
VH322BGL Square D VH Disconnect 240VV 60A Fusible Switch - Essential Electric Supply
Square D VH322BGL - Fusible Safety Switch 60A 240V 3-Pole
Square D VH322BGL - Fusible Safety Switch 60A 240V 3-Pole
Square D VH322BGL - Fusible Safety Switch 60A 240V 3-Pole

Square D VH322BGL - Fusible Safety Switch 60A 240V 3-Pole

Square D
Price
Save $-173.92
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D VH322BGL is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 240V AC and 60A, constructed with a rugged NEMA 1 enclosure measuring 370.08 mm H x 161.54 mm W x 129.79 mm D and weighing 8.15 lb. The switch is UL listed (file E2927) and is configured as a single-unit, three-pole disconnect that accepts Class J fuses for coordinated protection, making it suitable for motor control centers, HVAC systems, and industrial machinery.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 1 Enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 14.57 in (370.08 mm) H x 6.36 in (161.54 mm) W x 5.11 in (129.79 mm) D
  • Weight: 8.15 lb
  • Standards: UL Listed (File E2927)
  • Applications: Motor Control Centers, Industrial Machinery, HVAC Systems
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Fuse Class: J
  • Wire: 3
  • Nema Rating: NEMA 1
  • Country of Origin: United States
  • Family: VH


Product Identification
  • UPC: 060648589350
  • GTIN: 03606485893501
