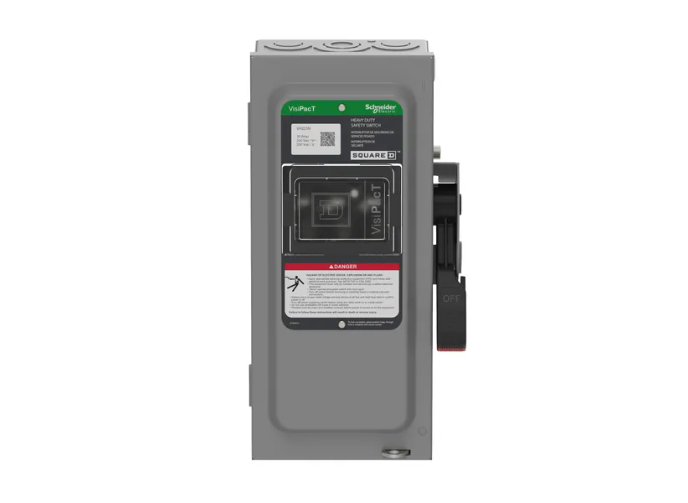

Square D VH321N - Fusible Safety Switch 30A 240V 3-Pole

Price
Regular price $189.95
Regular price $314.00 Sale price $189.95
Save $124.05
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D VH321N is a fusible safety switch designed for providing visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 30A at 240V AC and features a robust NEMA 1 enclosure with dimensions of 370.08 mm H x 161.54 mm W x 129.79 mm D and a weight of 8.8 lb. The switch is UL listed (file E2875) and complies with EU RoHS standards, ensuring reliable operation and safety compliance. Its 3-pole, single-configuration design with a fusible switch style accommodates H, K, R, and J class fuses and accepts aluminum or copper wire from AWG 14 to AWG 6, making it suitable for motor control and feeder disconnect applications.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 1 Enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 14.57 in (370.08 mm) H x 6.36 in (161.54 mm) W x 5.11 in (129.79 mm) D
  • Weight: 8.8 lb
  • Standards: UL Listed (File E2875), EU RoHS
  • Applications: Industrial motor control, feeder disconnects, three-phase power distribution
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Fuse Class: H, K, R, J
  • Wire Size: AWG 12 to AWG 6, AWG 14 to AWG 6 (Aluminum/Copper)
  • Wire: 3
  • Switch Style: Fusible
  • NEMA Rating: NEMA 1
  • Country of Origin: United States


Product Identification
  • UPC: 060648589336
  • GTIN: 03606485893365
