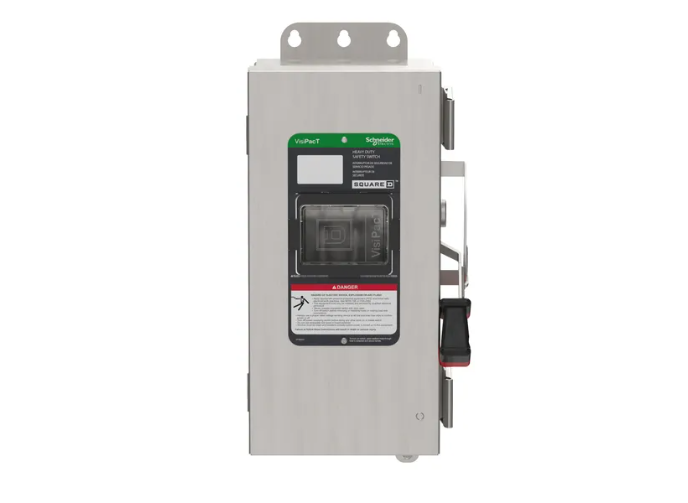

Square D VH321DSGL is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 240V AC and 30A, featuring a robust construction with dimensions of 379.22 mm H x 183.39 mm W x 136.75 mm D and a weight of 13.358 lb. The switch is UL listed (file E2919) and carries a NEMA 4X rating for corrosion and weather resistance, making it suitable for demanding applications such as motor control centers, industrial machinery, and HVAC systems.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, 3-pole, single configuration
Voltage Rating: 240V AC
Current Rating: 30A
Dimensions: 14.93 in (379.22 mm) H x 7.22 in (183.39 mm) W x 5.384 in (136.754 mm) D
Standards: UL Listed (File E2919), NEMA 4X Enclosure Rating
Applications: Industrial motor control, machinery, HVAC systems
Switch Style: Fusible
Configuration: Single
Phase: 3
Poles: 3
Wire: 3
Wire Size: AWG 12 to AWG 6, AWG 14 to AWG 6 (Aluminum/Copper)
Country of Origin: United States
Weight: 13.358 lb
Product Identification
UPC: 060648589345
GTIN: 03606485893457
