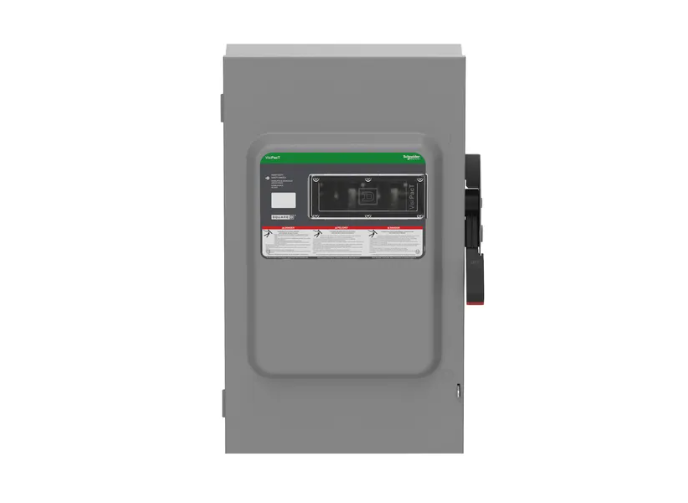

Square D VH224NR is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 200A at 240V AC in a single-phase configuration, featuring a robust NEMA 3R enclosure with dimensions of 735.08 mm H x 432.206 mm W x 216.052 mm D and a weight of 45 lb for durable outdoor or indoor use. The switch is UL listed (file E2875) and EU RoHS compliant, ensuring adherence to rigorous safety and environmental standards. Its typical applications include service entrance equipment, motor control centers, and industrial machinery where reliable isolation and protection for H, K, R, or J class fuses are required.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch
Voltage Rating: 240V AC
Current Rating: 200A
Configuration: Single
Poles: 2
Phase: 1
Fuse Class: H, K, R, J
Wire: 3
Wire Size: AWG 6 to 250 KCMil, Copper/Aluminum
NEMA Rating: NEMA 3R
Dimensions: 28.94 in (735.08 mm) H x 17.016 in (432.206 mm) W x 8.506 in (216.052 mm) D
