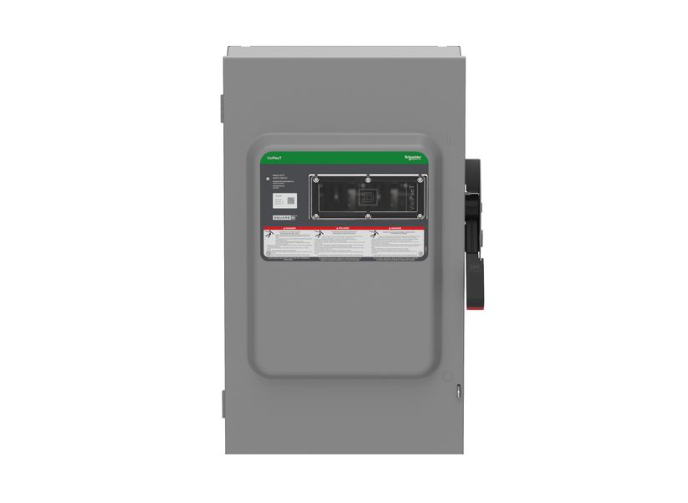

Square D VH224N - Fusible Safety Switch 200A 240V AC
Square D VH224N - Fusible Safety Switch 200A 240V AC
Square D VH224N - Fusible Safety Switch 200A 240V AC
Square D VH224N - Fusible Safety Switch 200A 240V AC
VH224N Square D VH Disconnect 240V ACV 200A Fusible Switch - Essential Electric Supply
Square D VH224N - Fusible Safety Switch 200A 240V AC
Square D VH224N - Fusible Safety Switch 200A 240V AC
Square D VH224N - Fusible Safety Switch 200A 240V AC
Square D VH224N - Fusible Safety Switch 200A 240V AC

Square D VH224N - Fusible Safety Switch 200A 240V AC

Square D
Price
Save $411.47
/
Title
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
Square D VH224N is a fusible safety switch designed for providing visible circuit isolation and overcurrent protection in industrial and commercial applications. It is rated for 200A at 240V AC in a single-phase configuration, featuring a robust NEMA 1 enclosure with dimensions of 734.82 mm H x 421.89 mm W x 218.4 mm D and a weight of 54.5 lb. The switch is UL listed (file E2875) and EU RoHS compliant, constructed for reliable operation within a temperature range of -25 to 70 °C. Its design supports a wide range of fuse classes (H, K, R, J) and accommodates copper or aluminum conductors from AWG 6 to 250 kcmil, making it suitable for service entrance, motor control centers, and main distribution panels.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 1 Enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Configuration: Single Phase, 2 Pole
  • Dimensions: 734.82 mm H x 421.89 mm W x 218.4 mm D (28.93 in x 16.61 in x 8.6 in)
  • Weight: 54.5 lb
  • Standards: UL Listed (File E2875), EU RoHS Compliant
  • Applications: Service Entrance, Motor Control, Main Distribution
  • Fuse Class: Compatible with H, K, R, J
  • Wire Size: AWG 6 to 250 kcmil (Copper/Aluminum)
  • Terminal Connection: 3-Wire
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)


Product Identification
  • UPC: 060648589326
  • GTIN: 03606485893266
