Square D VH223NDSGL - Fusible Safety Switch 240V 100A (NEMA 4X)

Price
Regular price $4,484.71
Regular price $5,351.00 Sale price $4,484.71
Save $866.29
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

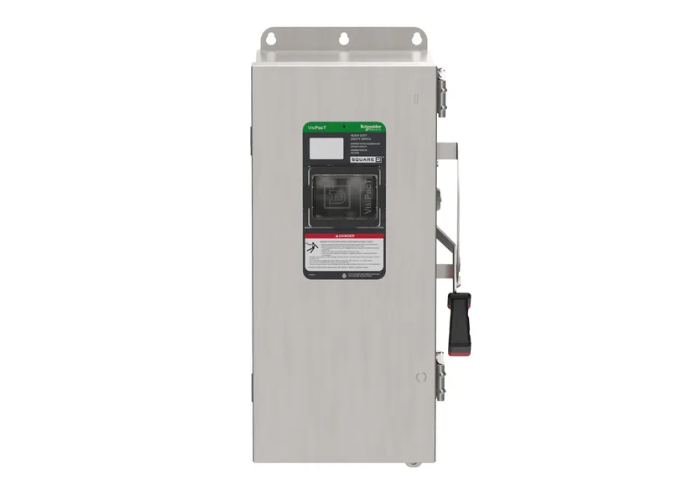

Square D VH223NDSGL is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power circuits. It is rated for 240V AC and 100A, featuring a robust, corrosion-resistant NEMA 4X enclosure with dimensions of 526.54 mm H x 237.13 mm W x 182.9 mm D and a weight of 22.333 lb. The switch is UL listed (file E2903) and constructed as a 2-pole, single-phase, 3-wire fusible disconnect for reliable operation. Its design is suitable for applications requiring a secure means to isolate machinery, motor loads, and distribution panels for maintenance and safety.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 526.54 mm H x 237.13 mm W x 182.9 mm D (20.73 in x 9.336 in x 7.2 in)
  • Standards: UL Listed (File E2903), NEMA 4X Enclosure Rating
  • Applications: Industrial motor control, machinery isolation, panel disconnects
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • Wire: 3
  • Weight: 22.333 lb
  • Country of Origin: United States
  • Family: VH


Product Identification
  • UPC: 060648589319
  • GTIN: 03606485893198
