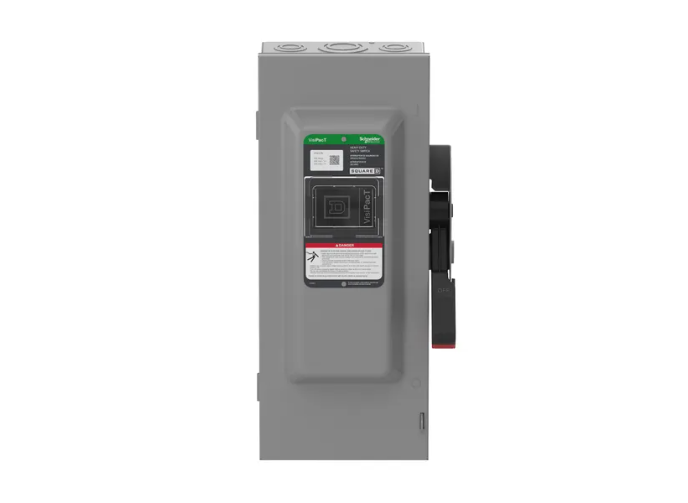

Square D VH223N is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial and commercial single-phase applications. It is rated for 240V AC and 100A, featuring a robust NEMA 1 enclosure with dimensions of 21.84 in (H) x 8.91 in (W) x 7.04 in (D) (554.74 mm x 226.31 mm x 178.82 mm) and a weight of 17.311 lb. The switch is UL listed (file E2875) and complies with EU RoHS standards, ensuring safe operation and material restrictions. Its two-pole, single-configuration design with a 3-wire setup and compatibility with H, K, R, and J class fuses makes it suitable for protecting motor circuits, HVAC systems, and industrial machinery where a secure isolation point is required.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, NEMA 1 Enclosure
Voltage Rating: 240V AC
Current Rating: 100A
Configuration: Single
Poles: 2
Phase: 1
Fuse Class: H, K, R, J
Wire: 3
Wire Size: AWG 12 to AWG 1/0, AWG 14 to AWG 1/0 (Aluminum/Copper)
Dimensions: 21.84 in x 8.91 in x 7.04 in (554.74 mm x 226.31 mm x 178.82 mm)
Weight: 17.311 lb
Standards: UL Listed (File E2875), EU RoHS
Switch Style: Fusible
Nema Rating: NEMA 1
Country of Origin: United States
Product Identification
UPC: 060648589316
GTIN: 03606485893167
