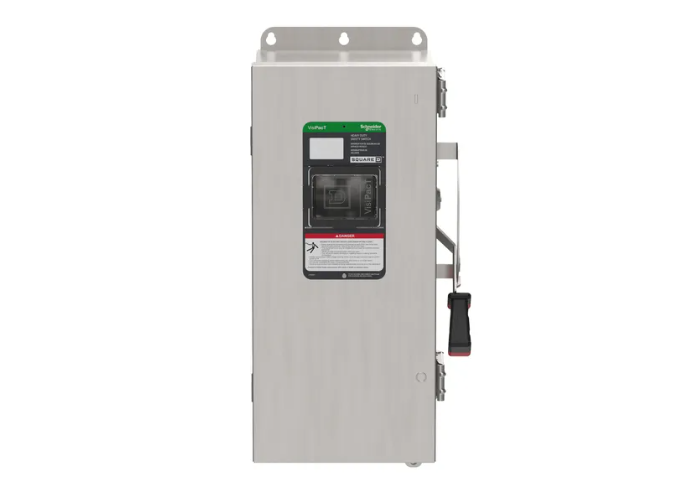

Square D VH223DSGL - Fusible Safety Switch 240V 100A (NEMA 4X)

Price
Regular price $4,461.36
Regular price $5,094.00 Sale price $4,461.36
Save $632.64
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D VH223DSGL is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial and commercial electrical systems. It is rated for 240V AC and 100A, featuring a robust NEMA 4X enclosure for corrosion and weather resistance in demanding environments. The switch is constructed with a 2-pole, single-phase configuration, accepts wire sizes from AWG 14 to 1/0 for both copper and aluminum conductors, and operates reliably within a temperature range of -25 to 70 °C. It complies with UL Standard 98 (file E2900), ensuring safe isolation for maintenance and protection of motors, HVAC equipment, and industrial machinery.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 4X Enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 526.54 mm H x 237.13 mm W x 182.9 mm D (20.73 in x 9.336 in x 7.2 in)
  • Weight: 24.03 lb
  • Standards: UL Listed (File E2900)
  • Applications: Motor disconnects, HVAC, industrial machinery protection
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire: 3
  • Wire Size: AWG 12 to 1/0, AWG 14 to 1/0 (Aluminum, Copper)
  • Nema Rating: NEMA 4X
  • Certification: UL listed file E2900
  • Country of Origin: United States


Product Identification
  • UPC: 060648589325
  • GTIN: 03606485893259
