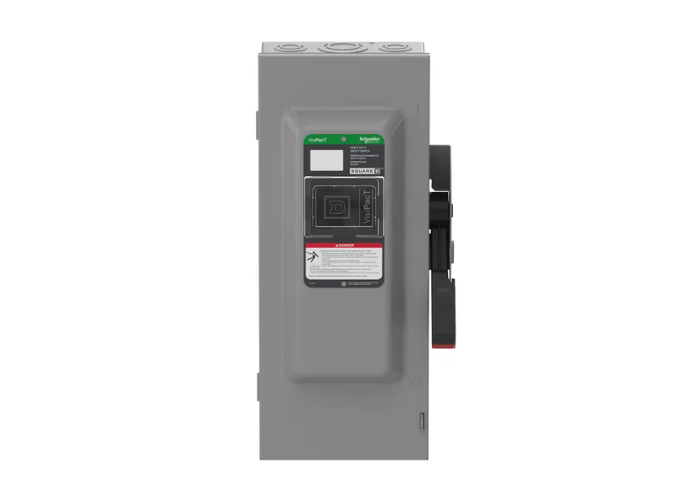

Square D VH223BGL is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial and commercial electrical systems. It is rated for 240V AC and 100A, featuring a robust two-pole, single-phase configuration with Class J fuse compatibility for high-interrupting capacity protection. The unit is constructed with a durable NEMA 1 enclosure, measuring 554.74 mm H x 226.31 mm W x 178.82 mm D and weighing 19.8 lb, and is UL listed (file E2898) for safety compliance. This disconnect switch is engineered for reliable service in motor control centers, HVAC equipment, and industrial machinery applications where a secure and visible means of isolation is required.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch
Voltage Rating: 240V AC
Current Rating: 100A
Dimensions: 554.74 mm H x 226.31 mm W x 178.82 mm D (21.84 in x 8.91 in x 7.04 in)
Standards: UL Listed (File E2898)
Applications: Motor Control Centers, HVAC, Industrial Machinery
Switch Style: Fusible
Configuration: Single
Poles: 2
Phase: 1
Fuse Class: J
Wire: 3
Nema Rating: NEMA 1
Weight: 19.8 lb
Country of Origin: United States
Product Identification
UPC: 060648589320
GTIN: 03606485893204
