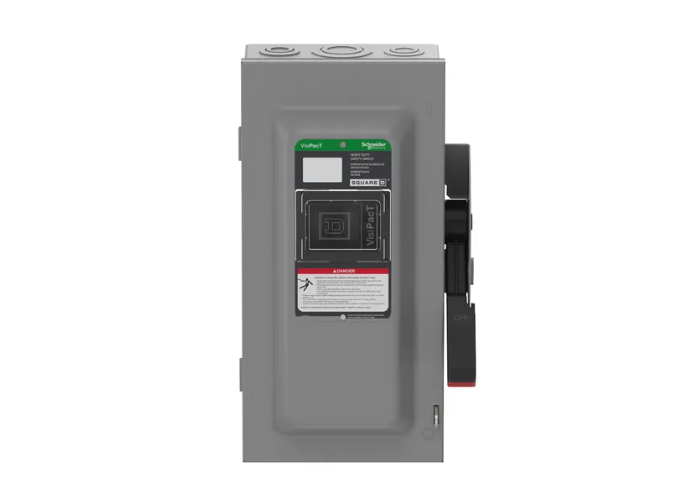

Square D VH222N - Fusible Safety Switch 60A 240V (2-Pole)
Square D VH222N - Fusible Safety Switch 60A 240V (2-Pole)
Square D VH222N - Fusible Safety Switch 60A 240V (2-Pole)
VH222N Square D VH Disconnect 240V ACV 60A Fusible Switch - Essential Electric Supply
Square D VH222N - Fusible Safety Switch 60A 240V (2-Pole)
Square D VH222N - Fusible Safety Switch 60A 240V (2-Pole)
Square D VH222N - Fusible Safety Switch 60A 240V (2-Pole)

Square D VH222N - Fusible Safety Switch 60A 240V (2-Pole)

Square D
Price
Save $151.97
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D VH222N is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial and commercial electrical systems. It is rated for 240V AC and 60A, featuring a robust NEMA 1 enclosure with dimensions of 370.08 mm H x 161.54 mm W x 129.79 mm D and a weight of 8.8 lb. The switch is UL listed (file E2875) and EU RoHS compliant, constructed to accept H, K, R, and J class fuses for flexible protection. Its two-pole, single-phase configuration with terminals for AWG 14 to 3 copper or aluminum wiring makes it suitable for motor control and feeder circuit applications.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, NEMA 1 enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Configuration: Single, 2-pole
  • Phase: 1
  • Fuse Class: H, K, R, J
  • Wire Size: AWG 14 to AWG 3, AWG 12 to AWG 3, Copper/Aluminum
  • Terminals: 3-wire
  • Dimensions: 14.57 in (370.08 mm) H x 6.36 in (161.54 mm) W x 5.11 in (129.79 mm) D
  • Weight: 8.8 lb
  • Standards: UL Listed (File E2875), EU RoHS
  • Country of Origin: United States


Product Identification
  • UPC: 060648589306
  • GTIN: 03606485893068
