Square D VH222BAWKGL - Fusible Disconnect 240V 60A 2-Pole
Square D VH222BAWKGL - Fusible Disconnect 240V 60A 2-Pole
Square D VH222BAWKGL - Fusible Disconnect 240V 60A 2-Pole
Square D VH222BAWKGL - Fusible Disconnect 240V 60A 2-Pole
VH222BAWKGL Square D VH Disconnect 240VV 60A Fusible Switch - Essential Electric Supply
Square D VH222BAWKGL - Fusible Disconnect 240V 60A 2-Pole
Square D VH222BAWKGL - Fusible Disconnect 240V 60A 2-Pole
Square D VH222BAWKGL - Fusible Disconnect 240V 60A 2-Pole
Square D VH222BAWKGL - Fusible Disconnect 240V 60A 2-Pole

Square D VH222BAWKGL - Fusible Disconnect 240V 60A 2-Pole

Square D
Price
Save $-432.40
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

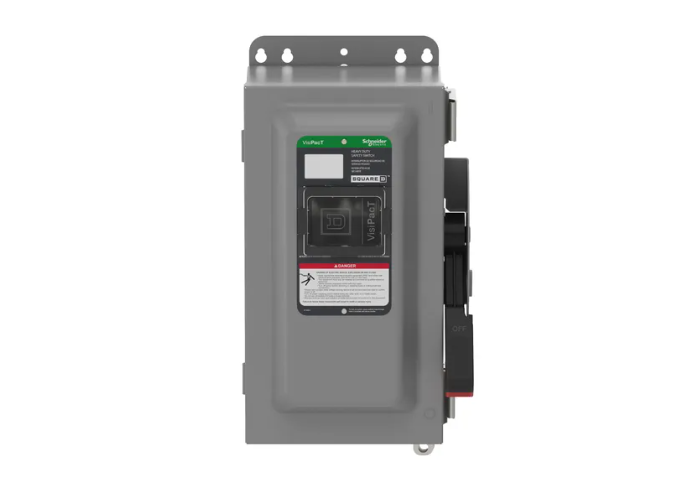

Square D VH222BAWKGL is a fusible safety disconnect switch designed for providing visible circuit isolation and overcurrent protection in industrial control panels. It is rated for 240V AC, 60A operation in single-phase applications, featuring a robust two-pole, three-wire configuration. The unit is constructed with a NEMA 12 rated enclosure measuring 370.08 mm H x 164.59 mm W x 131.95 mm D and weighs 11.02 lb, and it is UL listed (file E2886) for safety compliance. This disconnect is typically applied to protect motors, machinery, and feeder circuits using Class J fuses.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 12 Enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 14.57 in (370.08 mm) H x 6.48 in (164.59 mm) W x 5.195 in (131.95 mm) D
  • Standards: UL Listed (File E2886)
  • Applications: Industrial motor and machinery protection, feeder circuit isolation
  • Switch Style: Fusible
  • Configuration: Single
  • Phase: 1
  • Poles: 2
  • Wire: 3
  • Fuse Class: J
  • Nema Rating: NEMA 12
  • Weight: 11.02 lb
  • Country of Origin: United States


Product Identification
  • UPC: 060648589312
  • GTIN: 03606485893129
