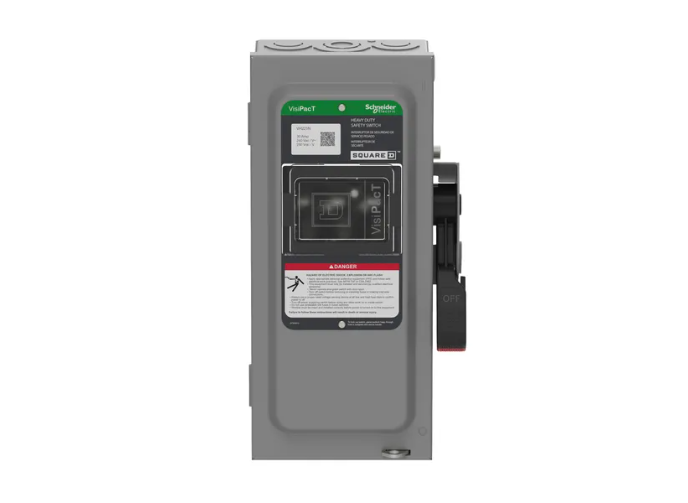

Square D VH221N is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial and commercial electrical systems. It is rated for 30A at 240V AC in a single-phase configuration, featuring a robust NEMA 1 enclosure with dimensions of 370.08 mm H x 161.54 mm W x 129.79 mm D and a weight of 8.8 lb. The switch is constructed to operate reliably across a temperature range of -25 to 70 °C and is certified to EU RoHS and UL standards (file E2875). Its typical applications include motor control and power distribution where a secure isolation point is required for H, K, R, or J class fuses, accommodating aluminum or copper wire from AWG 14 to AWG 6.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, NEMA 1 enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Configuration: Single phase, 2 poles
  • Dimensions: 370.08 mm H x 161.54 mm W x 129.79 mm D (14.57 in x 6.36 in x 5.11 in)
  • Weight: 8.8 lb
  • Wire Size: AWG 14 to AWG 6, Aluminum/Copper compatible
  • Fuse Class: H, K, R, J
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Standards: UL Listed (File E2875), EU RoHS compliant
  • Applications: Industrial motor control, power distribution panels


Product Identification
  • UPC: 060648589296
  • GTIN: 03606485892962
