VH221DSGL Square D VH Disconnect 240V ACV 30A Fusible Switch - Essential Electric Supply
Square D VH221DSGL - Fusible Safety Switch, 30A 240V 2-Pole
Square D VH221DSGL - Fusible Safety Switch, 30A 240V 2-Pole
Square D VH221DSGL - Fusible Safety Switch, 30A 240V 2-Pole
VH221DSGL Square D VH Disconnect 240V ACV 30A Fusible Switch - Essential Electric Supply
Square D VH221DSGL - Fusible Safety Switch, 30A 240V 2-Pole
Square D VH221DSGL - Fusible Safety Switch, 30A 240V 2-Pole
Square D VH221DSGL - Fusible Safety Switch, 30A 240V 2-Pole

Square D VH221DSGL - Fusible Safety Switch, 30A 240V 2-Pole

Square D
Price
Save $373.96
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

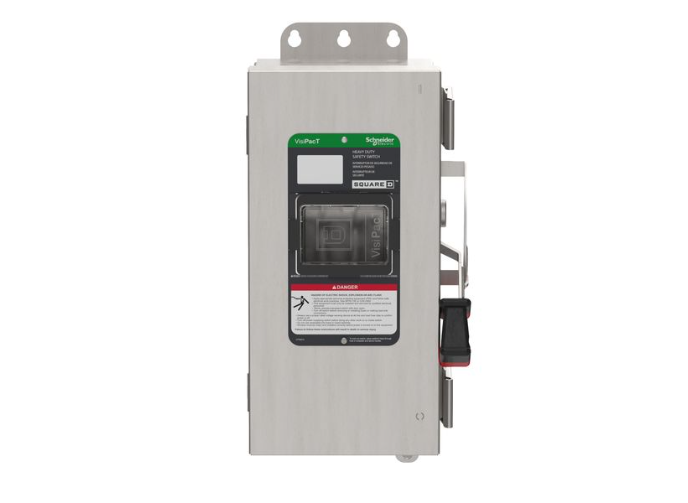

Square D VH221DSGL is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial and commercial applications. It is rated for 30A at 240V AC in a single-phase configuration and features a robust NEMA 4X enclosure measuring 379.22 mm H x 183.39 mm W x 136.75 mm D with a weight of 13.2 lb. The switch is UL listed (file E2875) and EU RoHS compliant, ensuring adherence to key safety and environmental standards. Its 2-pole, fusible design with a 3-wire capacity and compatibility with H, K, R, and J class fuses makes it suitable for motor control and power distribution panels.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 4X Enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Configuration: Single Phase, 2-Pole
  • Dimensions: 14.93 in (379.22 mm) H x 7.22 in (183.39 mm) W x 5.384 in (136.754 mm) D
  • Weight: 13.2 lb
  • Wire Size: Accepts AWG 12 to 6 or AWG 14 to 6, Aluminum/Copper
  • Fuse Class: Compatible with H, K, R, J
  • Standards: UL Listed (File E2875), EU RoHS
  • Applications: Industrial motor control, power distribution, panel disconnects


Product Identification
  • UPC: 060648589305
  • GTIN: 03606485893051
