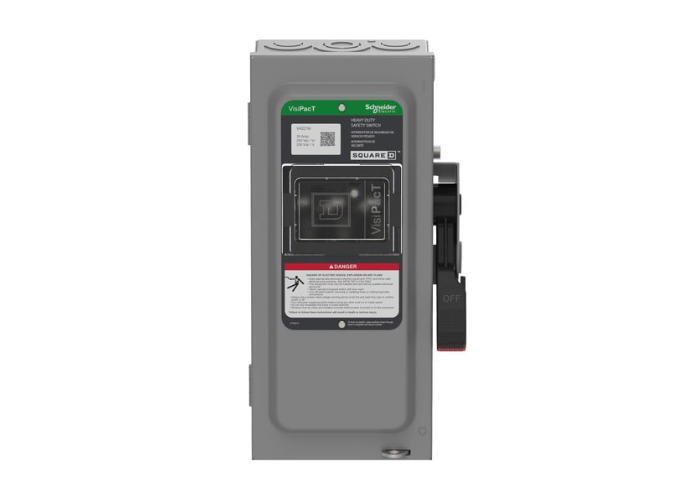

Square D VH221BGL is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial and commercial electrical systems. It is rated for 30A at 240V AC in a single-phase configuration, featuring a robust NEMA 1 enclosure with dimensions of 14.57 in (370.08 mm) H x 6.36 in (161.54 mm) W x 5.11 in (129.79 mm) D and a weight of 7.961 lb. The switch is UL listed (file E2878) and constructed for use with Class J fuses, ensuring reliable protection and compliance with industry safety standards for applications such as motor control and feeder circuit isolation.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, 2-pole, single configuration
Voltage Rating: 240V AC
Current Rating: 30A
Dimensions: 14.57 in (370.08 mm) H x 6.36 in (161.54 mm) W x 5.11 in (129.79 mm) D
Standards: UL Listed (File E2878)
Applications: Industrial motor control, feeder circuit isolation, commercial electrical systems
Switch Style: Fusible
Configuration: Single
Phase: 1
Poles: 2
Fuse Class: J
NEMA Rating: NEMA 1
Wire: 3
Weight: 7.961 lb
Family: VH
Country of Origin: United States
Product Identification
UPC: 060648589300
GTIN: 03606485893006
