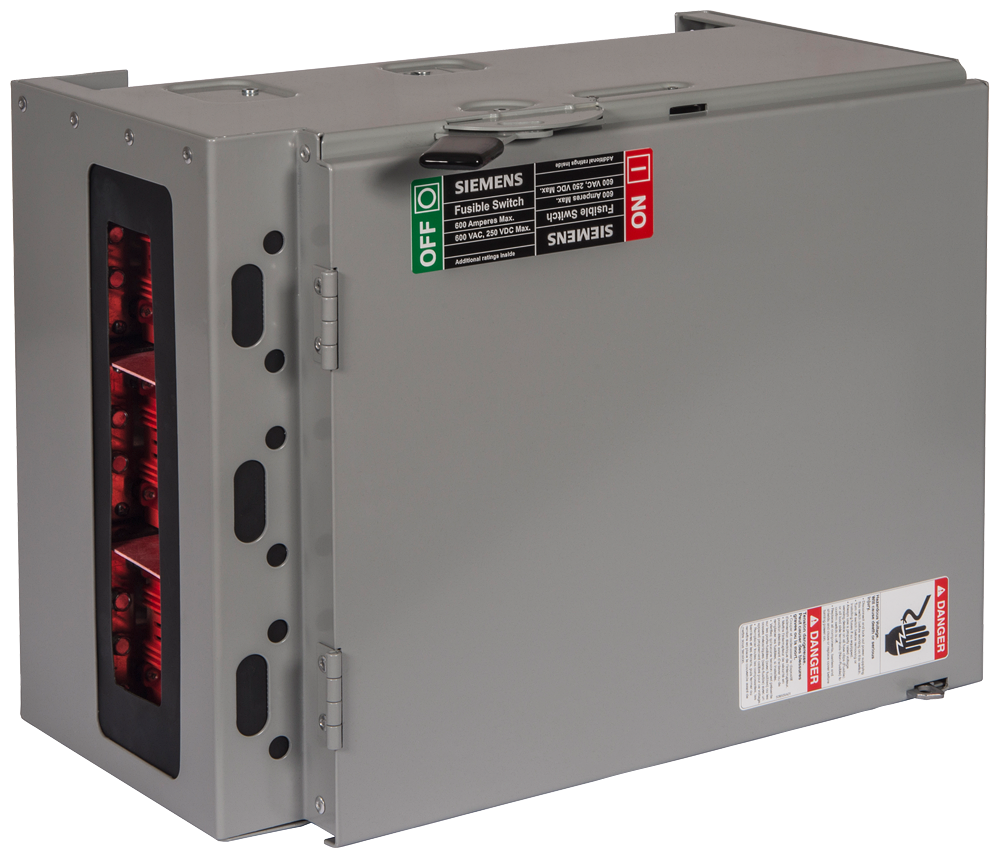

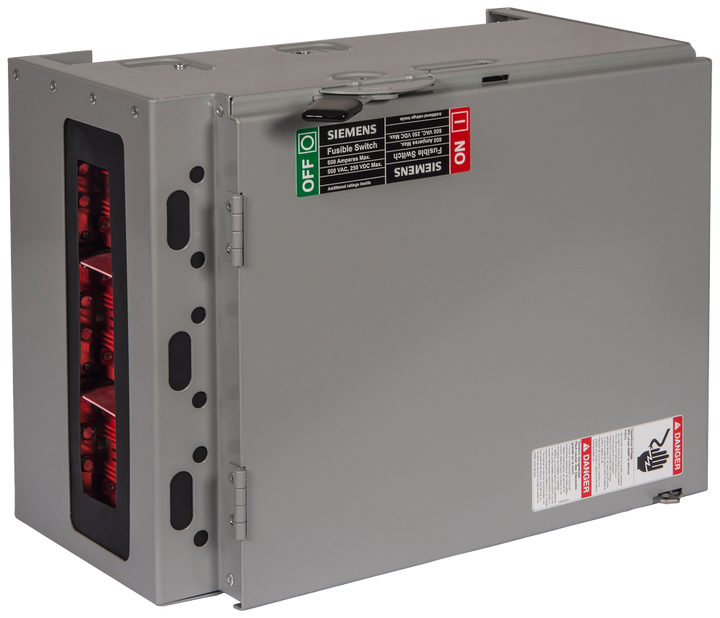

Siemens V7H3605A - Fusible Safety Switch 400A 600V (200kA AIC)

Siemens
Price
Save $6,912.12
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens V7H3605A is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution systems. It features a 600V AC voltage rating and a 400A current rating, housed within a robust NEMA 1 enclosure measuring 21.26 x 17.717 x 14.961 inches and weighing 44.092 lb. The switch is part of the Vacu-Break family and is engineered to meet industry standards, offering an interrupting capacity of 200kA at 480V for use with R, H, and K class fuses. Its three-pole, single-configuration design is typically applied in three-phase systems for main feeder and branch circuit protection in manufacturing and commercial facilities.

Key Features & Specifications
  • Type: V7H Fusible Safety Switch, Panel Mount
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Dimensions: 21.26 x 17.717 x 14.961 inch
  • Standards: NEMA 1 Enclosure Rating
  • Applications: Industrial main feeder and branch circuit protection
  • Switch Type: Fusible
  • Configuration: Single
  • Phase: 3
  • AIC rating: 200kA@480V
  • Poles: 3
  • Fuse Class: R, H, K
  • Compatible Frames: PLP
  • Weight: 44.092 lb


Product Identification
  • UPC: 804766686269
  • GTIN: 00804766686269
