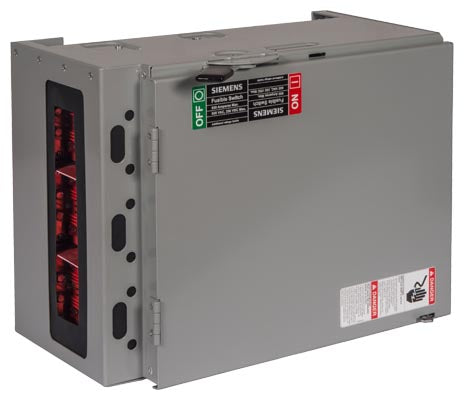

Siemens V7H3206A - Fusible Safety Switch 600A 240V (200kA AIC)

Siemens
Price
Save $-3,972.06
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens V7H3206A is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution systems. It is rated for 600A at 240V AC in a three-phase configuration and features a 200kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed with a NEMA 1 enclosure measuring 21.26 x 17.717 x 14.961 inches and a weight of 44.092 lb, built to the Vacu-Break family standards for arc interruption. It complies with industry standards for fusible switches and is compatible with PLP frames, H, R, J, and T class fuses. Typical applications include main service disconnects, feeder circuits, and motor control centers in commercial and industrial facilities.

Key Features & Specifications
  • Type: V7H fusible safety switch, panel-mounted, Vacu-Break arc interruption
  • Voltage Rating: 240V AC
  • Current Rating: 600A
  • Dimensions: 21.26 x 17.717 x 14.961 inch
  • Standards: NEMA 1 enclosure rating
  • Applications: Main disconnects, feeder protection, industrial power distribution
  • Switch Type: Fusible Safety Switch
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC rating: 200kA@240V
  • Fuse Class: H, R, J, T
  • Compatible Frames: PLP
  • Nema Rating: 1
  • Country of Origin: Mexico
  • Weight: 44.092 lb


Product Identification
  • UPC: 804766686238
  • GTIN: 00804766686238
