Siemens V7F3604 - Fusible Safety Switch 200A 600V (200kA AIC)

Price
Regular price $1,150.93
Regular price $4,726.00 Sale price $1,150.93
Save $3,575.07
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

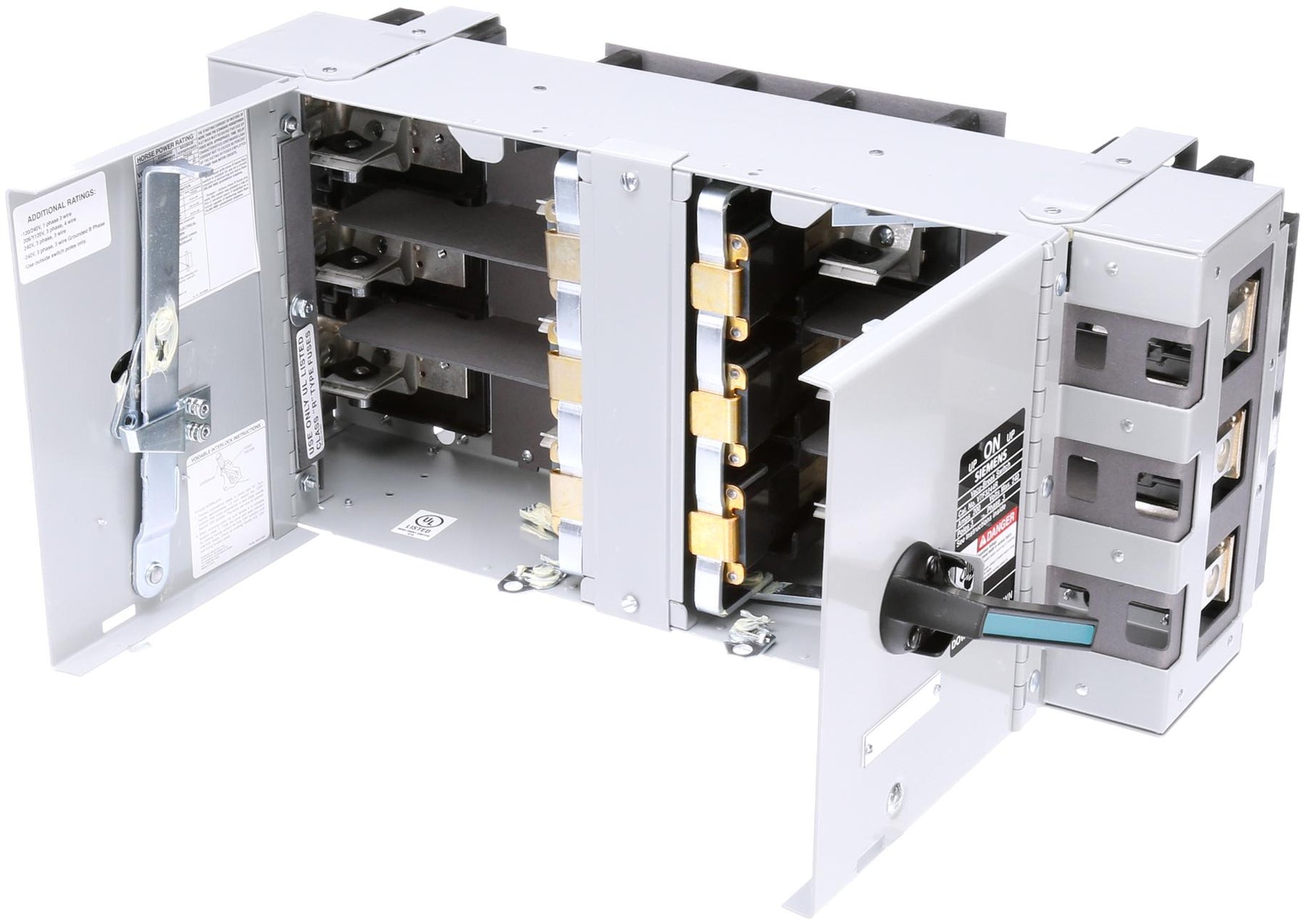

Siemens V7F3604 is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution systems. It features a 600V AC voltage rating and a 200A current rating, housed within a robust NEMA 1 enclosure measuring 23.622 x 12.992 x 10.63 inches and weighing 37.368 lb. The switch is UL-certified and engineered to interrupt high fault currents with an AIC rating of 200kA at 480V, utilizing its Vacu-Break technology for safe arc quenching. Typical applications include main service disconnects, motor control center feeder disconnects, and branch circuit protection in commercial and industrial facilities.

Key Features & Specifications
  • Type: V7F Fusible Safety Switch, Vacu-Break design for arc interruption
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 23.622 x 12.992 x 10.63 inch (600 x 330 x 270 mm)
  • Standards: UL Certified
  • Applications: Main disconnects, MCC feeders, branch circuit protection
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC rating: 200kA @ 480V
  • Wire Size: 6 AWG to 250 kcmil Aluminum/Copper
  • Fuse Class: R, H, K
  • Nema Rating: 1
  • Compatible Frames: PLP
  • Weight: 37.368 lb (16.95 kg)
  • Country of Origin: Mexico


Product Identification
  • UPC: 078364323300
  • GTIN: 00783643233003
