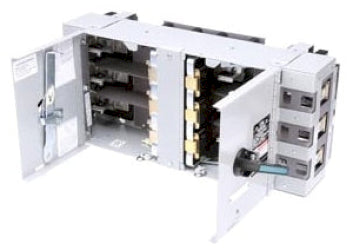

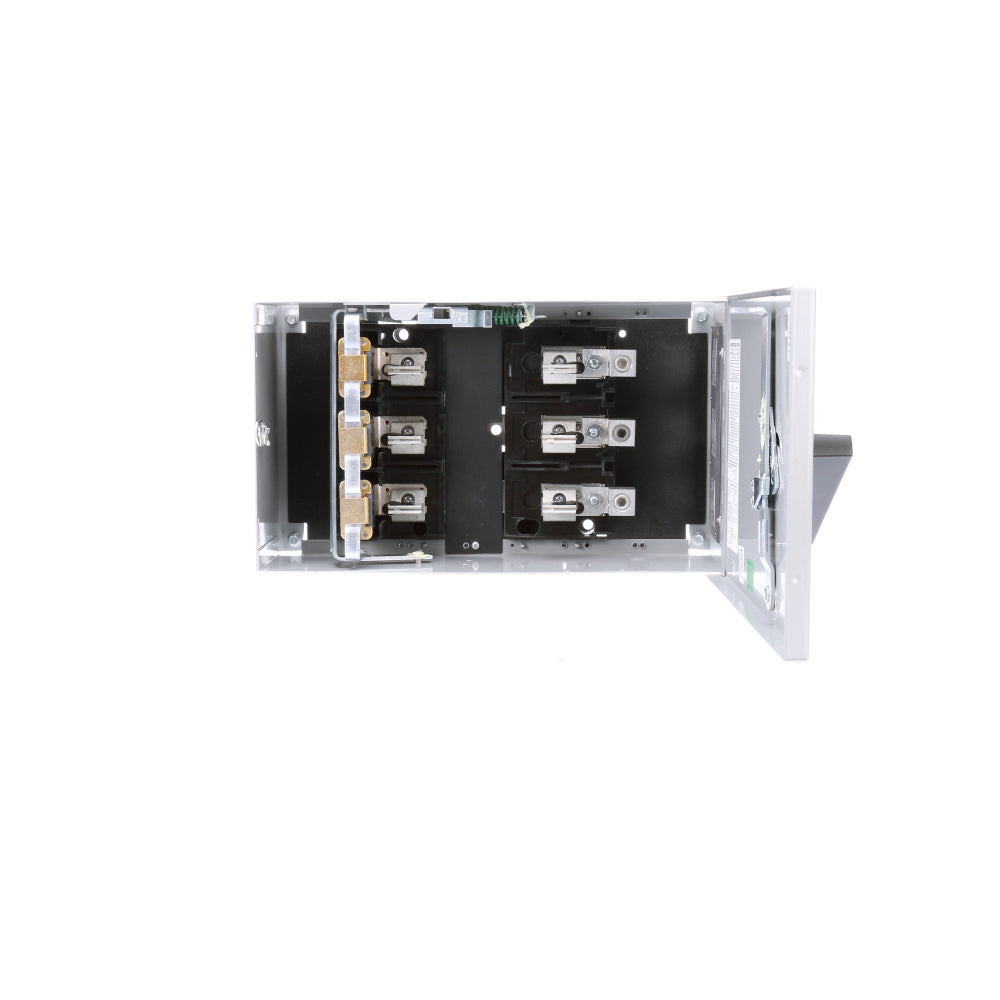

Siemens V7F3204 is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution. It features a 240V AC voltage rating and a 200A current rating, housed within a robust NEMA 1 enclosure measuring 20.079 x 12.992 x 10.236 inches and weighing 22.95 lb. The switch is UL-certified, operates within a temperature range of -25 to 70 °C, and is constructed for compatibility with PLP frames. Its typical applications include protecting three-phase motor circuits and feeder lines in industrial facilities, utilizing R, H, or K class fuses to achieve a 200kA interrupting rating at 240V for high-fault current protection.
Key Features & Specifications
Type: V7F Vacu-Break fusible safety switch, panel mount
Voltage Rating: 240V AC
Current Rating: 200A
Dimensions: 20.079 x 12.992 x 10.236 inch (510 x 330 x 260 mm)
Standards: UL Certified
Applications: Industrial power distribution, motor circuit protection
Switch Type: Fusible
Configuration: Single
Temp Rating: -25 to 70 °C (-13 to 158 °F)
Phase: 3
AIC rating: 200kA @ 240V
Connection: Wire Size 14 to 1/0 AWG (Copper/Aluminum)
