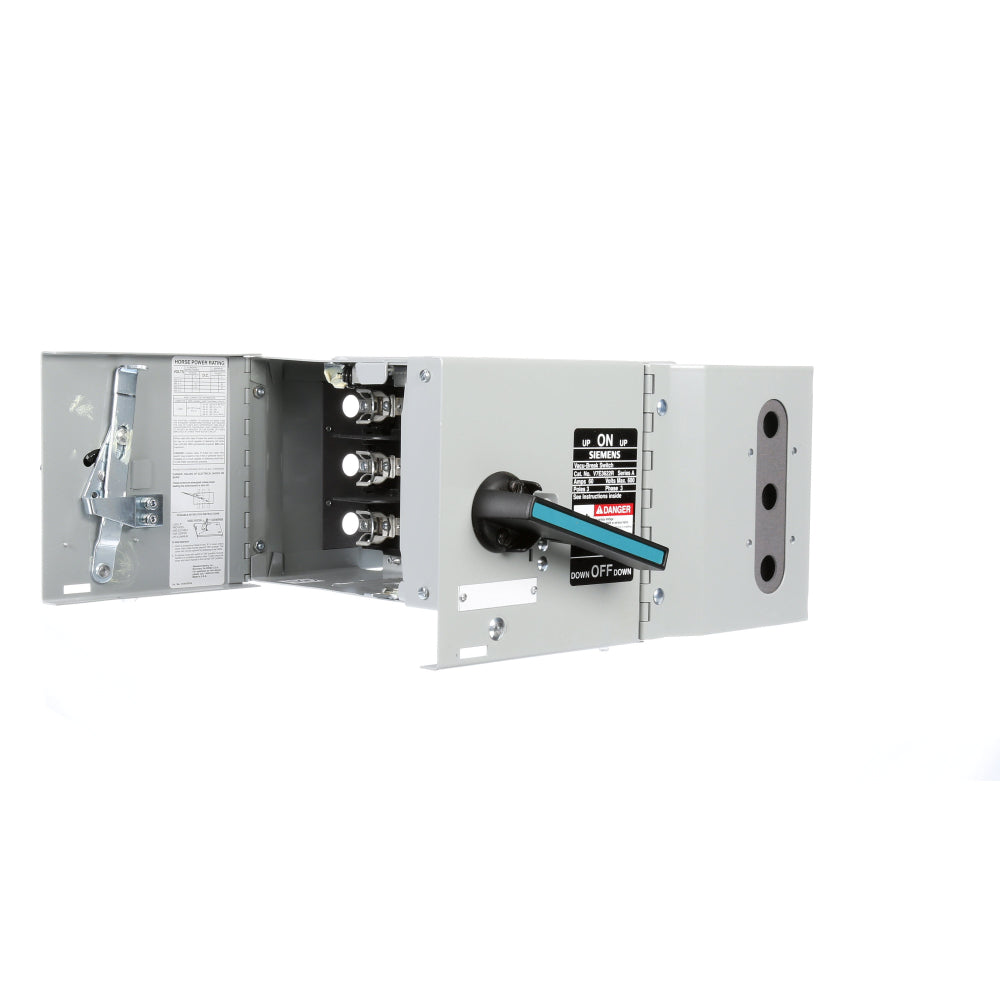

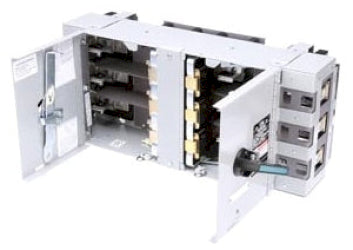

Siemens V7E3622R - Fusible Safety Switch 600V 60A 3-Pole

Siemens
Price
Save $3,022.89
/
Title
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price
Siemens V7E3622R is a panel-mounted, fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution systems. It features a 600V AC voltage rating and a 60A current rating, housed within a robust NEMA 1 enclosure measuring 20.866 x 10.236 x 10.236 inches and weighing 21.848 lb. The switch is UL-certified and operates effectively across a temperature range of -25 to 70 °C (-13 to 158 °F). Its three-pole, dual/twin configuration with Class R fuses and a 200kA interrupting rating at 480V makes it suitable for protecting motor control centers, industrial machinery, and panelboards within PLP-compatible frames.

Key Features & Specifications
  • Type: V7E Vacu-Break fusible safety switch, panel mount
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 20.866 x 10.236 x 10.236 inch (530 x 260 x 260 mm)
  • Standards: UL Certified
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Type: Fusible
  • Configuration: Dual/Twin
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC rating: 200kA @ 480V
  • Poles: 3
  • Fuse Class: R
  • Nema Rating: 1
  • Compatible Frames: PLP
  • Weight: 21.848 lb (9.91 kg)


Product Identification
  • UPC: 783643103887
  • GTIN: 00783643103887
