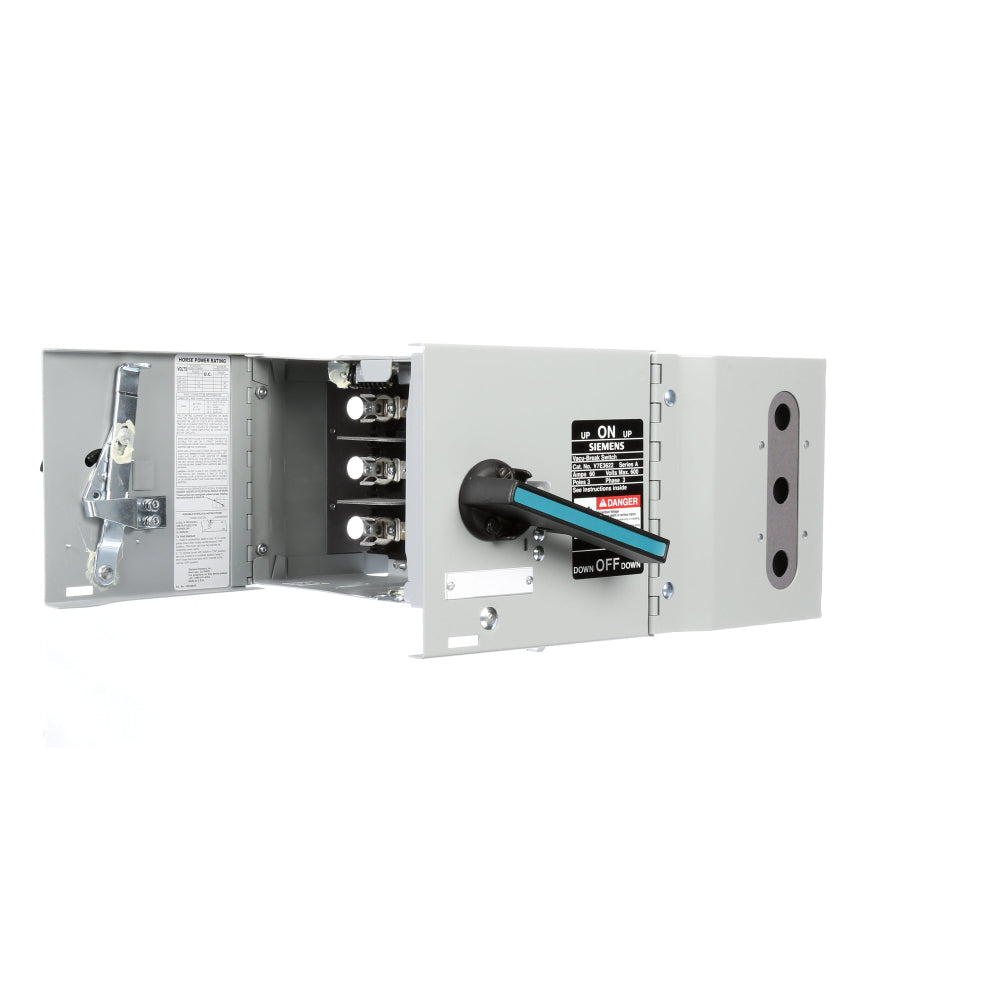

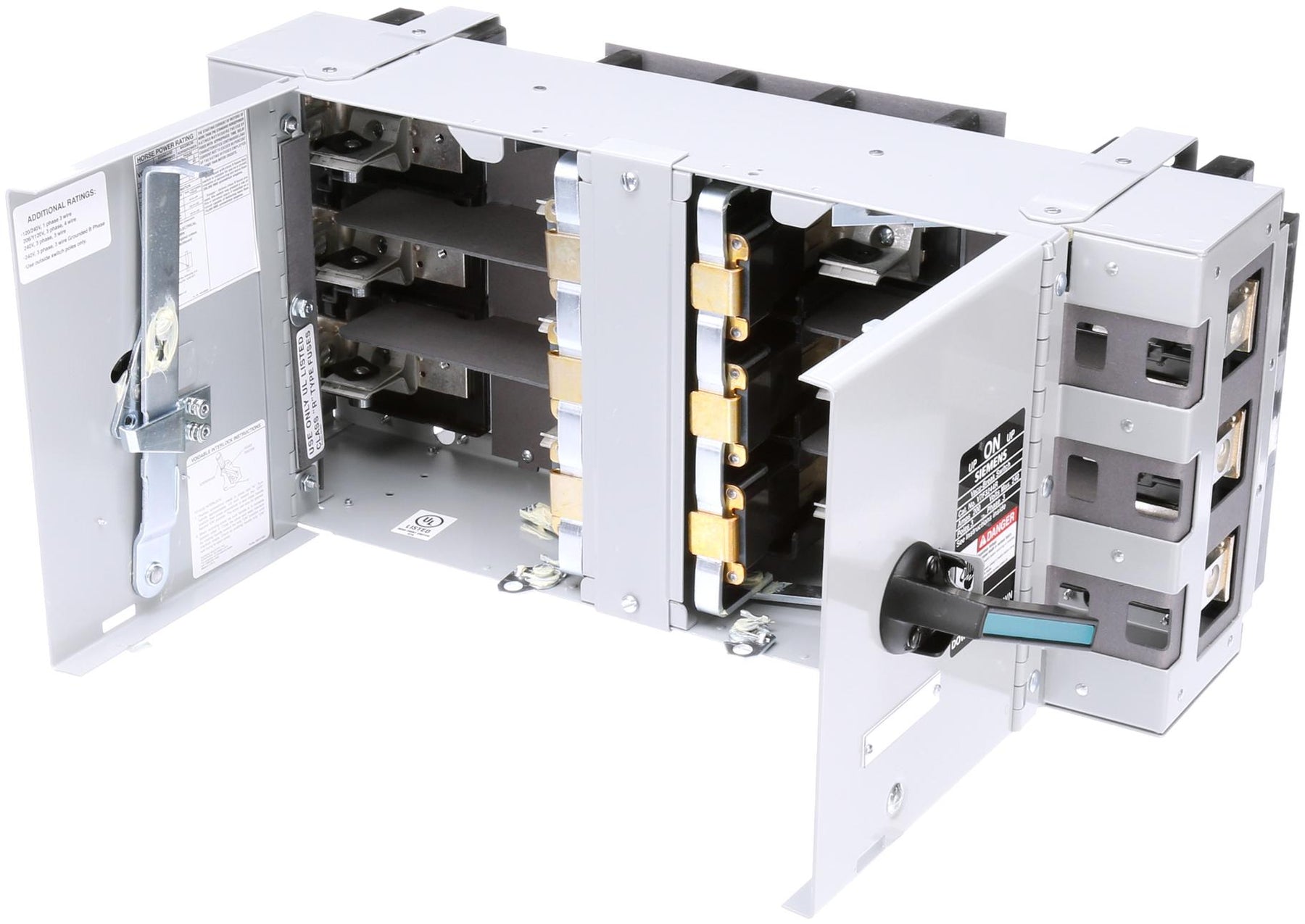

Siemens V7E3622 - Fusible Safety Switch 600V/60A (200kA AIC @480V)

Siemens V7E3622 is a fusible safety switch designed for industrial power distribution and circuit protection. This 600V-rated switch handles 60A current with a 200kA interrupting capacity at 480V, featuring a rugged NEMA 1 enclosure measuring 10.236" x 20.472" x 11.024" (260 x 520 x 280mm) and weighing 37 lb. Compliant with UL standards, the Vacu-Break series switch utilizes R/H/K class fuses in a dual/twin configuration for three-phase systems, compatible with PLP frames for panel mounting in commercial and industrial facilities.

Key Features & Specifications

• Type: Fusible safety switch, Vacu-Break series, NEMA 1 enclosure
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 10.236" x 20.472" x 11.024" (260 x 520 x 280mm)
• Weight: 37 lb (16.8 kg)
• Standards: UL listed
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Dual/Twin
• Poles: 3
• Phase: 3-phase
• AIC rating: 200kA@480V
• Fuse Class: R, H, K
• Compatible Frames: PLP
• Nema Rating: 1

Product Identification

• UPC: 783643236066
• GTIN: 00783643236066
