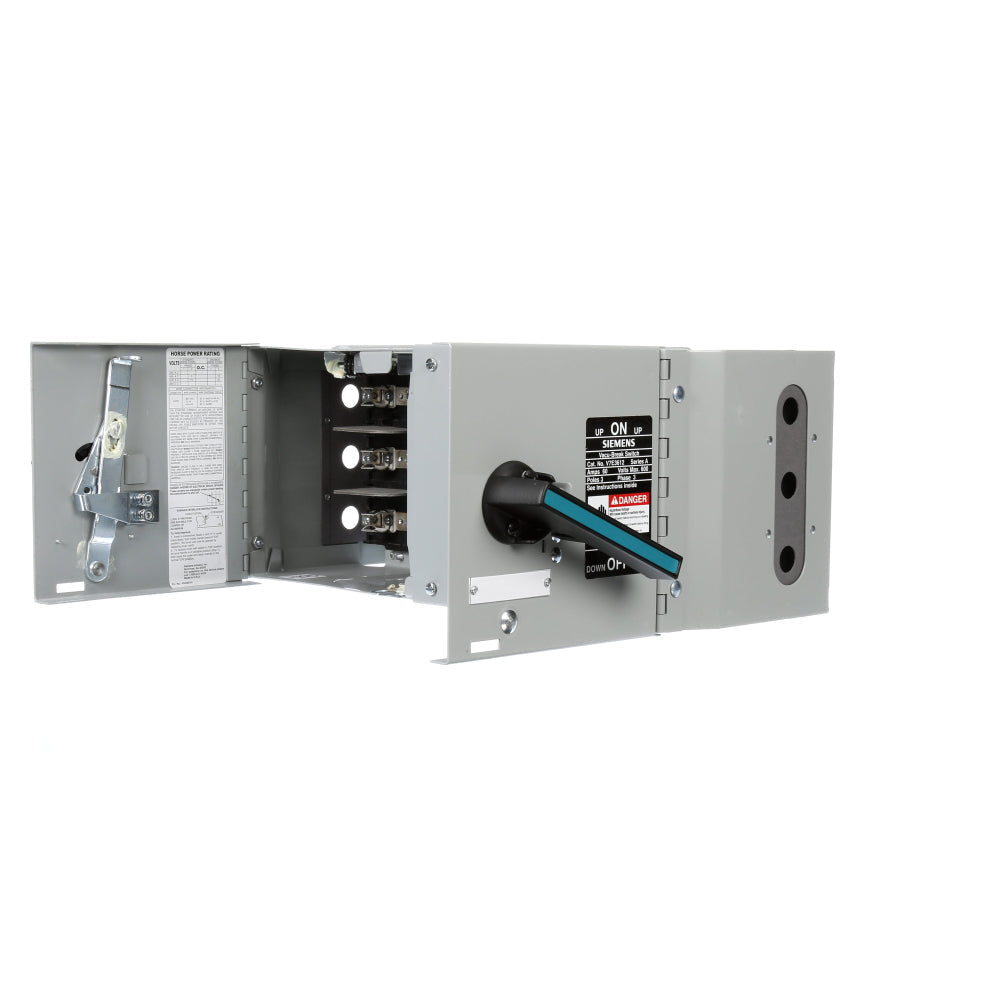

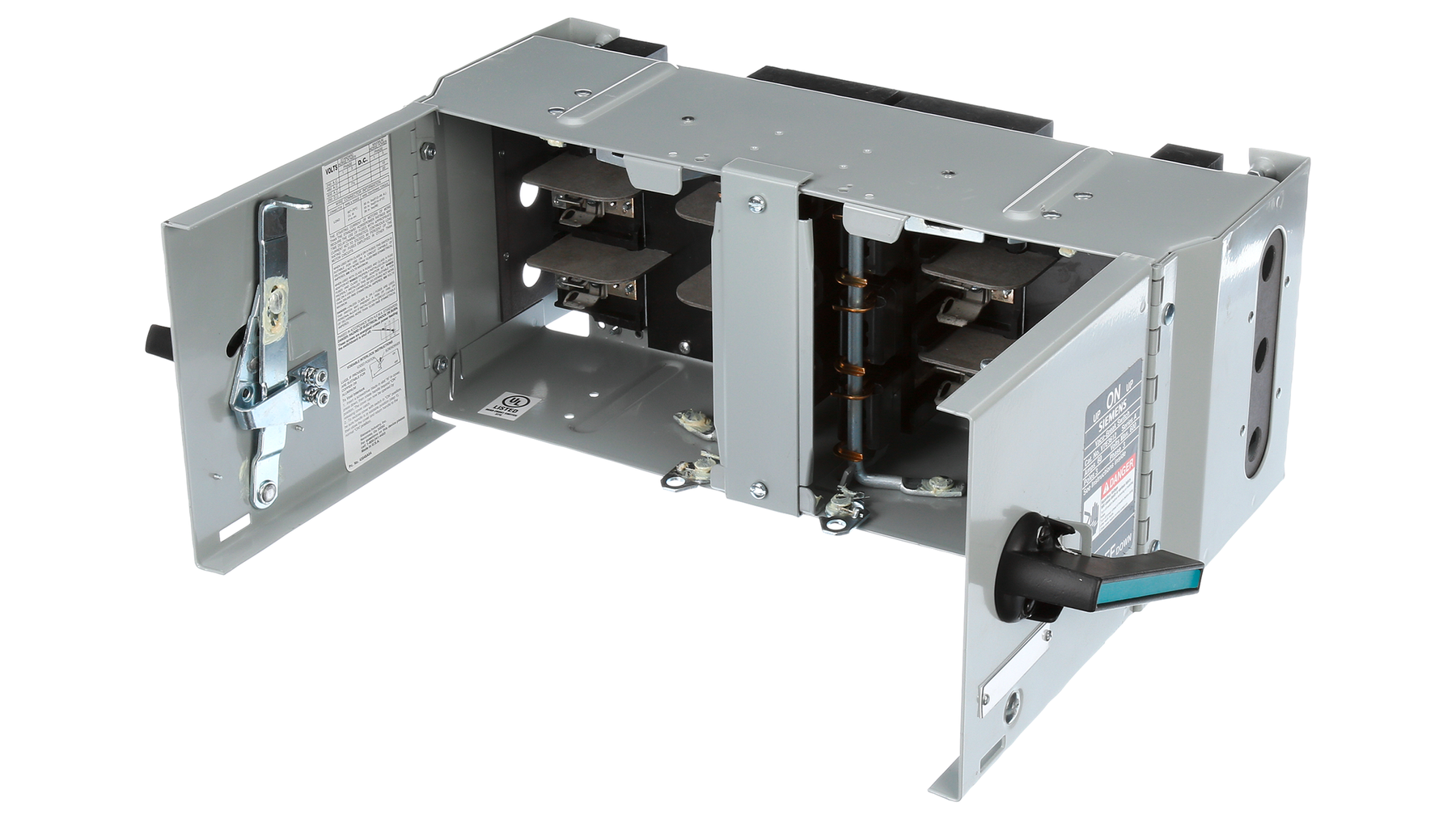

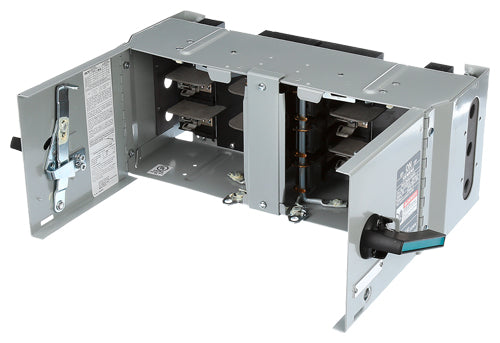

Siemens V7E3612 is a panel-mounted fusible safety switch designed for reliable circuit protection and isolation in industrial power distribution. It features a 600V AC voltage rating and a 60A current rating, housed in a robust NEMA 1 enclosure measuring 20.472" x 10.236" x 10.63" and weighing 22.156 lb. This Vacu-Break family switch is UL-certified and operates within a temperature range of -25 to 70 °C, engineered for three-phase systems with a 200kA interrupting capacity at 480V. Its dual/twin configuration with three poles accommodates wire sizes from 14 to 4 AWG, making it suitable for use with PLP frames and R, H, or K class fuses in demanding industrial environments.
Key Features & Specifications
Type: Panel Mount, Vacu-Break Fusible Safety Switch, V7E Type
Voltage Rating: 600V AC
Current Rating: 60A
Dimensions: 20.472 x 10.236 x 10.63 inch
Weight: 22.156 lb
Standards: UL Certified
Applications: Industrial power distribution, circuit protection and isolation
Switch Style: Fusible
Configuration: Dual/Twin
Temp Rating: -25 to 70 °C (-13 to 158 °F)
Phase: 3
AIC rating: 200kA @ 480V
Connection: Wire Size 14 to 4 AWG (Aluminum/Copper)
