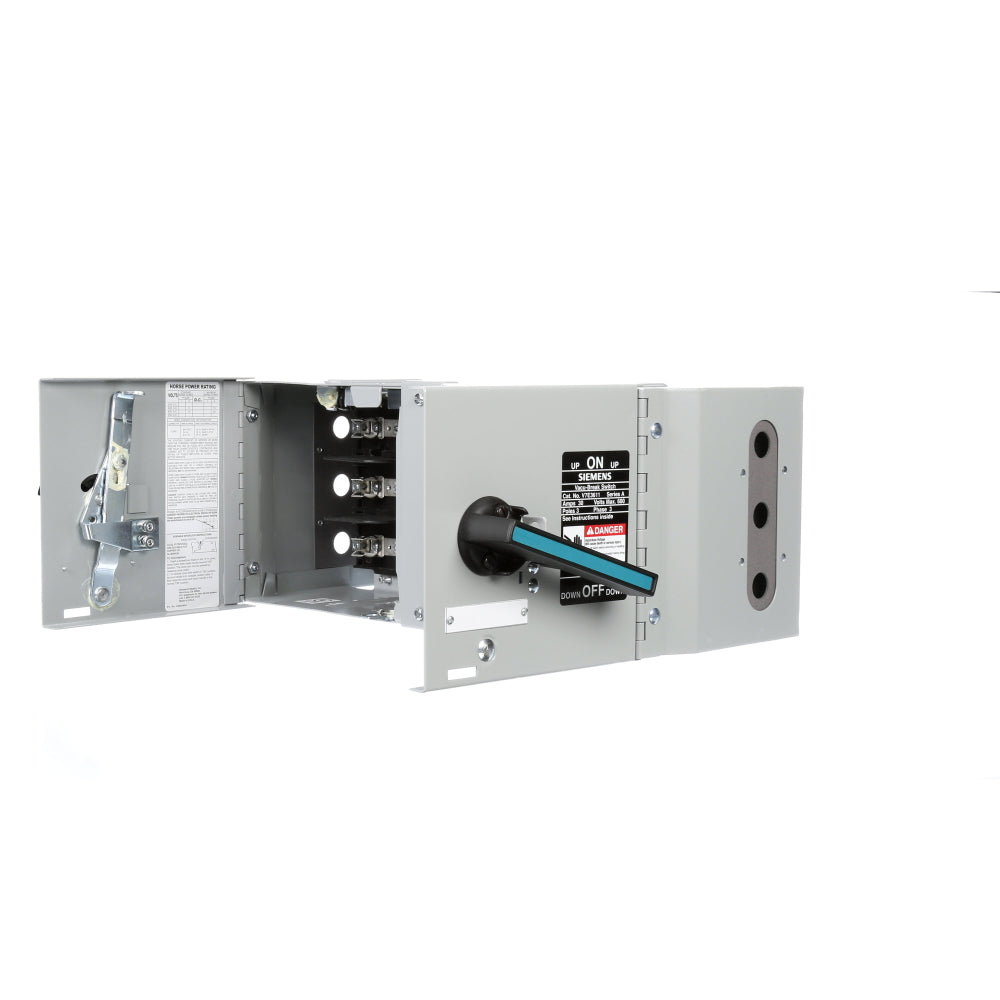

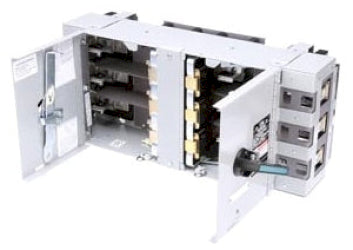

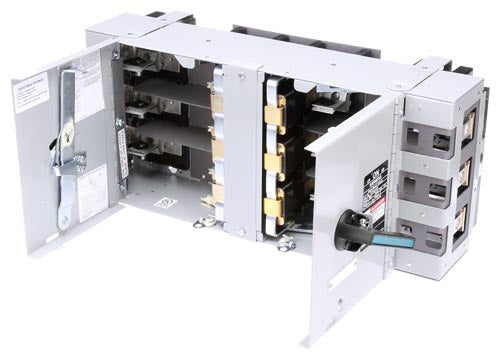

Siemens V7E3611 is a panel-mounted, fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution. It features a 600V AC voltage rating and a 30A current rating, housed within a robust NEMA 1 enclosure measuring 20.866 x 10.63 x 10.236 inches and weighing 20.591 lb. The switch is UL-certified and operates effectively across a temperature range of -25 to 70 °C, ensuring compliance with industrial safety standards for three-phase systems. Its typical applications include motor control centers, industrial machinery, and panelboards where a 200kA interrupting capacity at 480V is required for Class R, H, or K fuses.
Key Features & Specifications
Type: V7E Vacu-Break, fusible safety switch, panel mount
Voltage Rating: 600V AC
Current Rating: 30A
Dimensions: 20.866 x 10.63 x 10.236 inches
Standards: UL Certified
Applications: Industrial power distribution, motor control centers, panelboards
Switch Type: Fusible
Configuration: Dual/Twin
Temp Rating: -25 to 70 °C
Phase: 3
AIC rating: 200kA @ 480V
Connection: Wire Size 14 to 4 AWG (Aluminum/Copper)
