Siemens V7E3603 - Fusible Safety Switch 100A 600V (200kA AIC)
ITE, SIemens V7E3603 Panel Mount Switch (Fusible) - Essential Electric Supply
ITE, SIemens V7E3603 Panel Mount Switch (Fusible) - Essential Electric Supply
Siemens V7E3603 - Fusible Safety Switch 100A 600V (200kA AIC)

Siemens V7E3603 - Fusible Safety Switch 100A 600V (200kA AIC)

Siemens
Price
Save $1,642.24
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

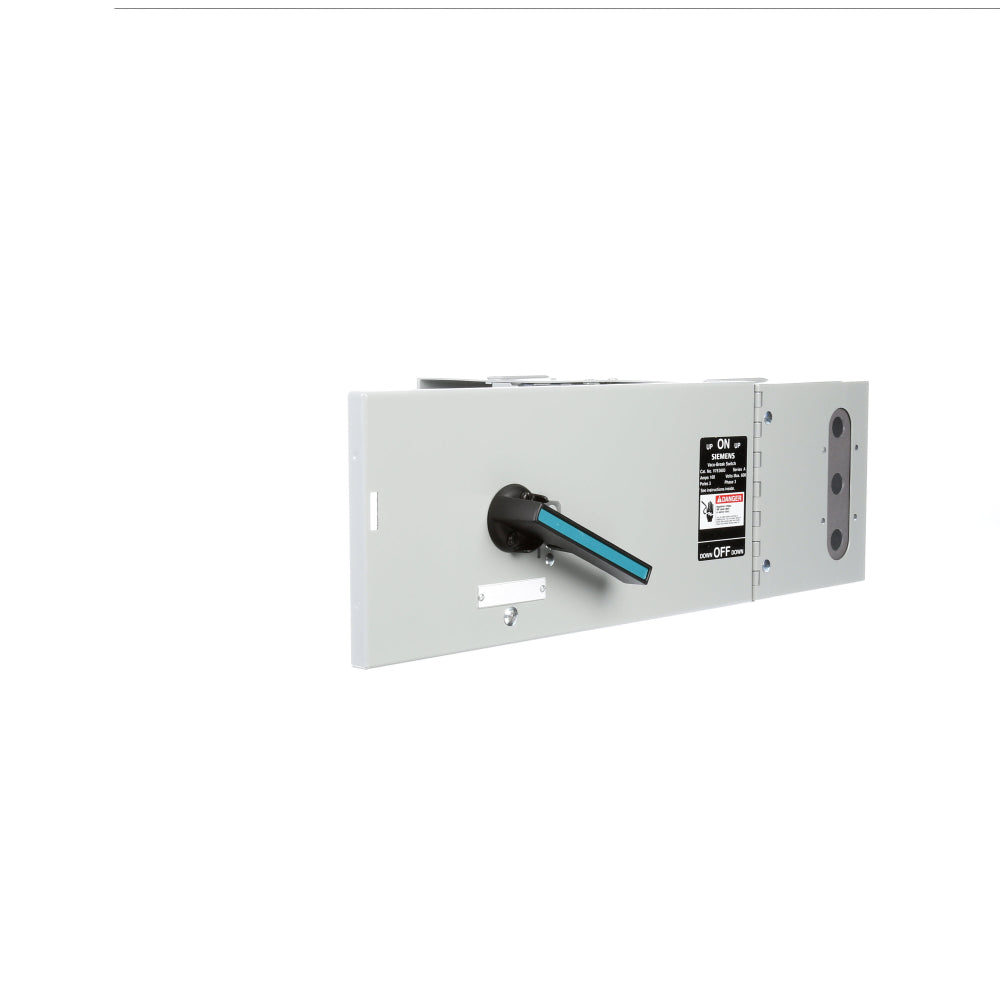

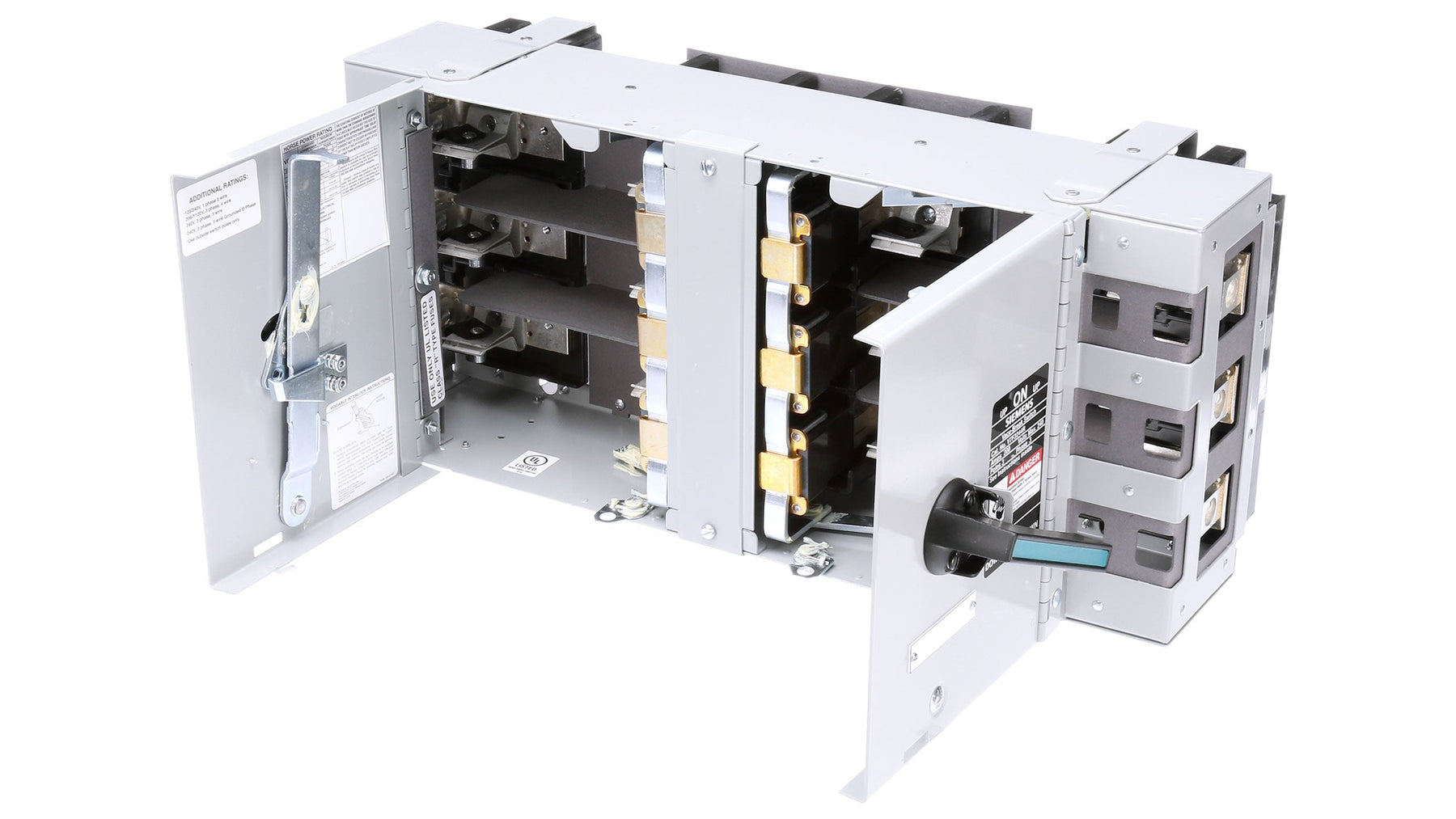

Siemens V7E3603 is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution. It features a 600V AC voltage rating and a 100A current rating, housed within a robust NEMA 1 enclosure measuring 21.26 x 10.236 x 10.63 inches and weighing 12 lb. The switch is part of the Vacu-Break family, ensuring safe arc interruption, and is compliant for use with R, H, and K class fuses, offering an interrupting capacity of 200kA at 480V. This three-phase, three-pole unit is engineered for integration into compatible FAP frames, making it suitable for applications in motor control centers, industrial machinery, and main feeder circuits where dependable disconnect and overcurrent protection are required.

Key Features & Specifications
  • Type: V7E, Panel Mount, Fusible Safety Switch, Vacu-Break Arc Interruption
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 21.26 x 10.236 x 10.63 inch (540 x 260 x 270 mm)
  • Weight: 12 lb (5.44 kg)
  • Standards: NEMA 1 Enclosure Rating
  • Applications: Industrial Power Distribution, Motor Control Centers, Main Feeder Disconnect
  • Switch Style: Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC rating: 200kA @ 480V
  • Fuse Class: R, H, K
  • Compatible Frames: FAP
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643231177
  • GTIN: 00783643231177
