Siemens V7E3203 - Fusible Safety Switch 100A 3P (200kA AIC)
Siemens V7E3203 - Fusible Safety Switch 100A 3P (200kA AIC)
Siemens V7E3203 - Fusible Safety Switch 100A 3P (200kA AIC)
ITE, SIemens V7E3203 Panel Mount Switch (Fusible) - Essential Electric Supply
ITE, SIemens V7E3203 Panel Mount Switch (Fusible) - Essential Electric Supply
Siemens V7E3203 - Fusible Safety Switch 100A 3P (200kA AIC)
Siemens V7E3203 - Fusible Safety Switch 100A 3P (200kA AIC)
Siemens V7E3203 - Fusible Safety Switch 100A 3P (200kA AIC)

Siemens V7E3203 - Fusible Safety Switch 100A 3P (200kA AIC)

Siemens
Price
Save $783.32
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

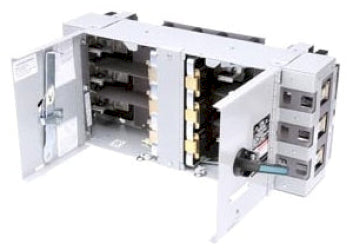

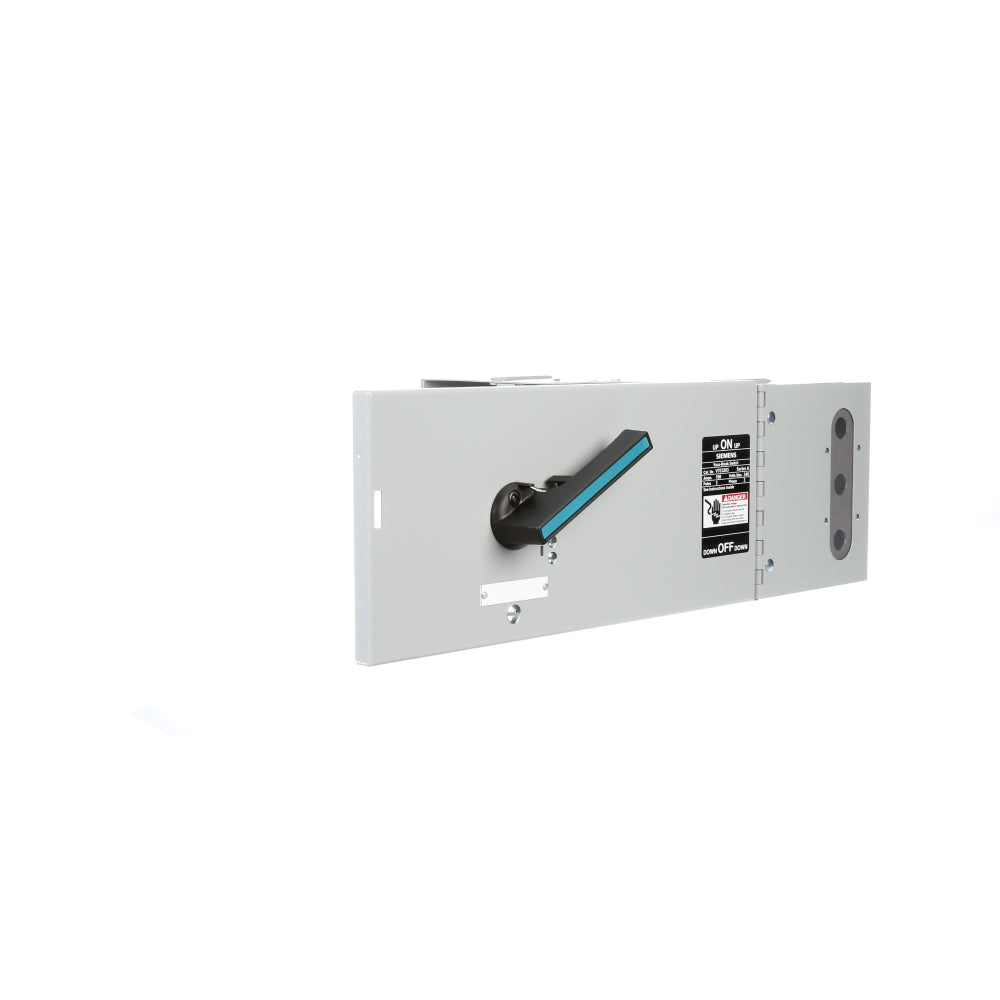

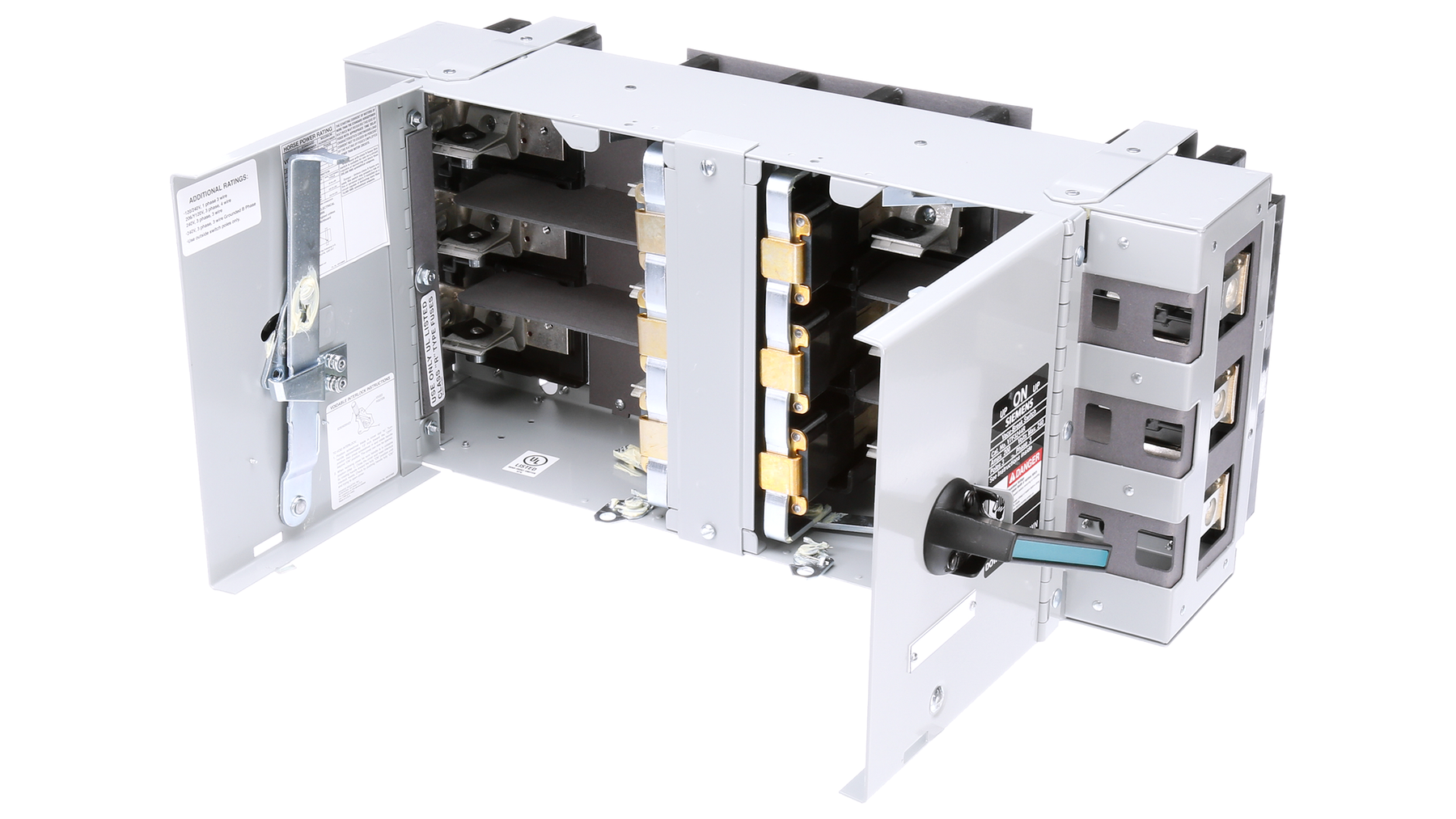

Siemens V7E3203 is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution. It is rated for 240V AC systems, handles a continuous current of 100A on a 3-phase configuration, and features a robust NEMA 1 enclosure with dimensions of 20.472" x 10.236" x 10.63" and a weight of 17.681 lb. The switch is part of the Vacu-Break family and is engineered to interrupt high fault currents with an AIC rating of 200kA at 240V, ensuring compliance with rigorous industrial safety standards for applications such as motor control centers and main feeder disconnects.

Key Features & Specifications
  • Type: V7E Fusible Safety Switch, Panel Mount, Vacu-Break Technology
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 20.472" x 10.236" x 10.63" (H x W x D)
  • Standards: NEMA 1 Enclosure Rating
  • Applications: Industrial power distribution, main disconnects, motor control centers
  • Switch Type: Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R, H, K
  • Compatible Frames: PLP
  • Weight: 17.681 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643257665
  • GTIN: 00783643257665
