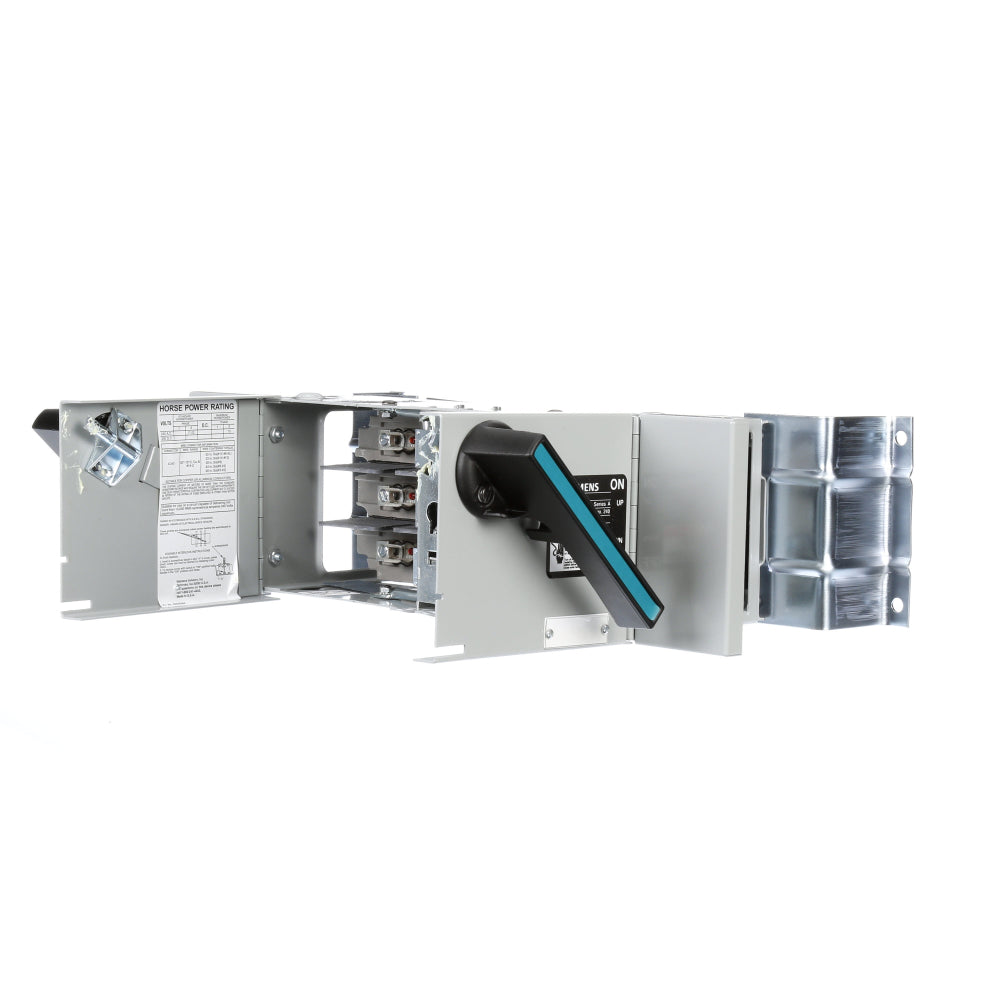

Siemens V7B3212 - Fusible Safety Switch 60A 240V (200kA AIC Vacu-Break)

Siemens V7B3212 is a panel-mounted fusible safety switch designed for reliable circuit protection and isolation in industrial applications. This 3-pole switch operates at 240V AC with a 60A current rating and features a dual/twin configuration for enhanced operational flexibility. Constructed with rugged NEMA 1 enclosure protection, the unit measures 7.874" x 19.685" x 10.63" and weighs 25 lb, incorporating Siemens' Vacu-Break technology for superior arc interruption. The switch complies with industry standards and carries a 200kA interrupting rating at 240V, ensuring robust fault protection. Typical applications include industrial power distribution, motor control centers, and main disconnect service where Class R, H, and K fuse protection is required in FAP-compatible panelboards.

Key Features & Specifications

• Type: V7B fusible safety switch with Vacu-Break technology, panel mount
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 7.874" x 19.685" x 10.63" (200mm x 500mm x 270mm)
• Standards: NEMA 1 enclosure rating
• Applications: Industrial power distribution, motor control centers, main disconnect service
• Switch Type: Safety disconnect
• Configuration: Dual/Twin
• Poles: 3
• Phase: 3-phase
• AIC rating: 200kA@240V
• Switch Style: Fusible
• Nema Rating: 1
• Fuse Class: R, H, K
• Compatible Frames: FAP
• Weight: 25 lb
• Country of Origin: United States

Product Identification

• UPC: 783643232686
• GTIN: 00783643232686
