Siemens V7B2211LR - Fusible Disconnect Switch 30A 240V (200kA AIC)

Siemens
Price
Save $-1,929.65
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

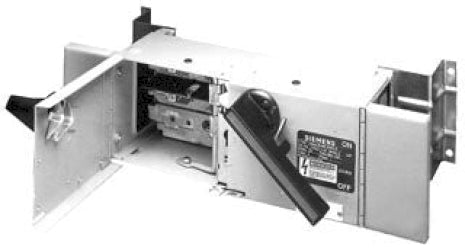

Siemens V7B2211LR is a panel-mounted, fusible disconnect switch designed for providing reliable circuit protection and isolation in industrial power distribution. It features a 240V AC voltage rating and a 30A current rating, engineered within a robust NEMA 1 enclosure measuring 19.685 x 7.874 x 10.63 inches and weighing 14.44 lb. The switch complies with industry standards for safety and performance, utilizing a Vacu-Break design for arc interruption. Its typical applications include motor control centers and panelboards where a 200kA interrupting capacity at 240V is required for Class R, H, and K fuses.

Key Features & Specifications
  • Type: V7B Fusible Disconnect Switch, Panel Mount, Vacu-Break Design
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Configuration: Dual/Twin
  • Poles: 2
  • Phase: 1
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R, H, K
  • Compatible Frames: PJP
  • NEMA Rating: 1
  • Switch Style: Fusible
  • Dimensions: 19.685 x 7.874 x 10.63 inch (500 x 200 x 270 mm)
  • Weight: 14.44 lb (6.55 kg)
  • Standards: Designed to meet applicable industrial safety standards
  • Applications: Industrial power distribution, motor control centers, panelboards


Product Identification
  • UPC: 783643232600
  • GTIN: 00783643232600
