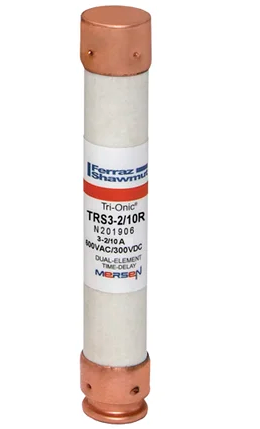

Ferraz Shawmut TRS3-2/10R - RK5 Fuse 3A 600V (200kA AIC)

Ferraz Shawmut TRS3-2/10R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class fuse features a 600V AC rating with a 3A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The single-barrel design measures 0.56" in diameter with a compact 0.2 lb construction, meeting UL/CSA standards for safety compliance. Its Tri-Onic time-delay characteristic provides optimal motor circuit protection while resisting nuisance tripping from inrush currents. Typical applications include motor branch circuits, transformers, and power distribution equipment requiring high interrupting capacity.

Key Features & Specifications

• Type: TRS time-delay current-limiting fuse (RK5 class)
• Voltage Rating: 600V AC
• Current Rating: 3A
• Interrupting Rating: 200kA at 600V
• Dimensions: 0.56" diameter
• Weight: 0.2 lb
• Standards: UL/CSA listed
• Applications: Motor circuits, transformers, power distribution
• Class Rating: RK5
• Barrels: 1
• Family: Tri-Onic

Product Identification

• UPC: 782001748692
• GTIN: 00782001748692
