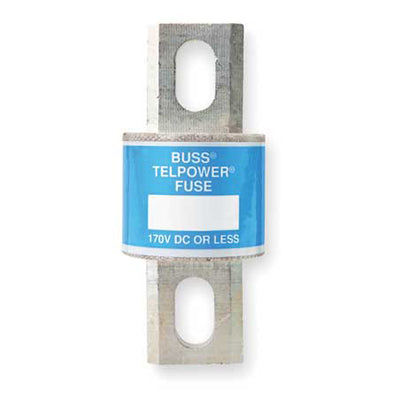

Bussmann TPL-CR - Current-Limiting Fuse 400A@170VDC (100kA AIC)

Bussmann TPL-CR is a low-voltage current-limiting fuse designed for high-interrupting-capacity DC circuit protection in industrial power systems. Rated for 170V DC operation with a 400A current rating, it provides 100kA AIC protection in a compact 3-1/2 inch bolt-on package featuring a 1.5-inch diameter ceramic barrel construction. UL Recognized and CE certified with Bellcore compliance (File E56412, Guide JFHR2), this Telpower-series fuse is engineered for telecom rectifiers, renewable energy systems, and DC power distribution applications requiring reliable fault isolation.

Key Features & Specifications

• Type: TPL-series current-limiting fuse with ceramic body
• Voltage Rating: 170V DC
• Current Rating: 400A
• Dimensions: 3-1/2 in length x 1.5 in diameter
• Standards: UL Recognized (E56412), CE, Bellcore JFHR2
• Applications: Telecom rectifiers, DC power distribution, renewable energy systems
• AIC rating: 100kA@170VDC
• Connection: Bolt-on terminal
• Barrels: 1
• Weight: 1 lb
• Certification: CE, UL Recognized, Guide JFHR2, File E56412 Bellcore

Product Identification

• UPC: 05171281388
• GTIN: 00051712813884
