General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)
General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)

General Electric TG3224R - Class R Fusible Disconnect Switch 200A @ 240V (100kA AIC)

General Electric
Price
Save $74.12
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

⚡ Product Branding Information

Some General Electric products may now ship with ABB branding due to ABB’s acquisition of GE Industrial Solutions.

Depending on the manufacturing date or production batch, the item or packaging may display either GE or ABB branding.

Unless otherwise noted, these products are considered equivalent in form, fit, function, and specifications.

Please contact our team before placing your order if brand labeling or packaging is critical for your application.

Call for Price

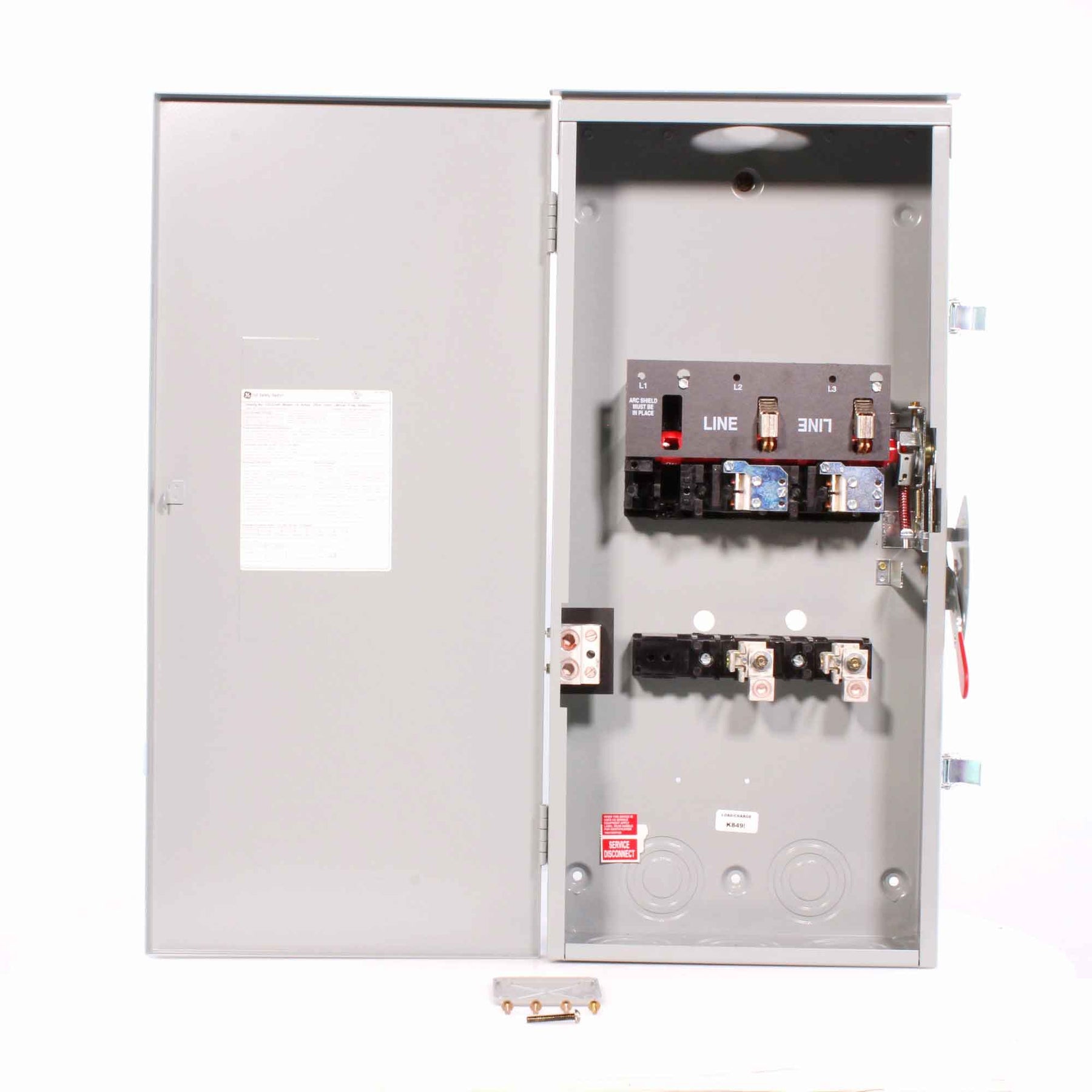

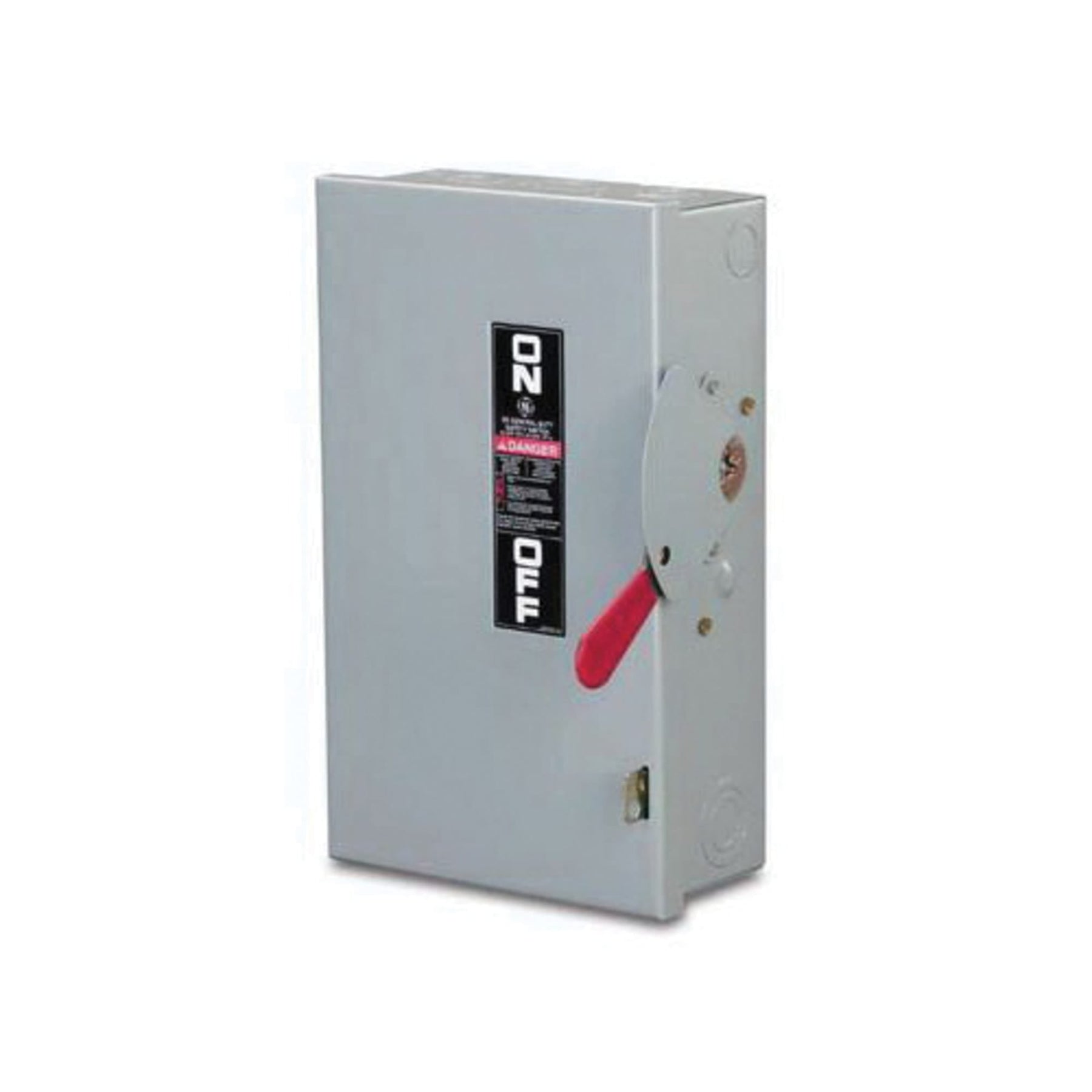

The General Electric TG3224R is a fusible safety disconnect switch designed to provide reliable circuit protection and isolation in industrial applications. This single-phase switch operates at 240V AC with a 200A current rating and features a 2-pole configuration for comprehensive circuit interruption. Constructed with a rugged NEMA 3R rated enclosure weighing 30 lb, it ensures durability in outdoor environments requiring protection against rain and sleet. The switch complies with UL Listed standards and delivers 100kA interrupting capacity at 240V for effective short-circuit protection. It is engineered for integration with ED frame systems and utilizes Class R fuses, making it suitable for industrial power distribution, motor control centers, and machinery disconnecting applications.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, Spec-Setter family, TG type
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: Compatible with ED frames
  • Standards: UL Listed, NEMA 3R
  • Applications: Industrial power distribution, motor control centers, machinery disconnecting
  • Switch Type: Fusible disconnect
  • Configuration: Single
  • Phase: 1
  • Poles: 2
  • AIC Rating: 100kA@240V
  • Fuse Class: R
  • NEMA Rating: NEMA 3R
  • Weight: 30 lb
  • Certification: UL Listed
  • Compatible Frames: ED


Product Identification
  • UPC: 783164008548
  • GTIN: 00887621872519
