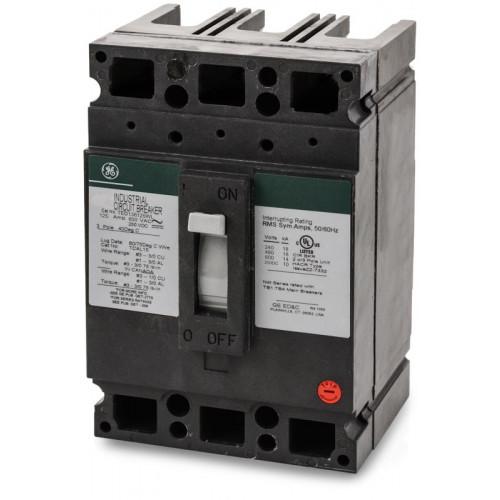

General Electric TED136125WL - Molded Case Breaker 125A 600V 3P
General Electric TED136125WL - Molded Case Breaker 125A 600V 3P

General Electric TED136125WL - Molded Case Breaker 125A 600V 3P

General Electric
Price
Save $790.74
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

⚡ Product Branding Information

Some General Electric products may now ship with ABB branding due to ABB’s acquisition of GE Industrial Solutions.

Depending on the manufacturing date or production batch, the item or packaging may display either GE or ABB branding.

Unless otherwise noted, these products are considered equivalent in form, fit, function, and specifications.

Please contact our team before placing your order if brand labeling or packaging is critical for your application.

Call for Price
General Electric TED136125WL is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 125A continuous current rating and a 600V AC voltage rating, housed within a compact 4-1/8 in x 6-5/16 in frame that weighs 3 lb. This thermal-magnetic breaker, part of the E150 Line, offers both long-time and instantaneous (LI) trip functions, is CSA Certified and UL Listed, and operates effectively in temperatures from -25°C to 70°C. Its 18kA interrupting capacity at 480V and feed-thru connection with line/load lugs make it suitable for integration into GE panelboards for main or branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Frame Size: 150A/TED
  • Poles: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Terminal Connection: Line/Load Lug
  • Phase Connection: ABC
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 4-1/8 in x 6-5/16 in
  • Weight: 3 lb
  • MCM Size: Min. 4 AWG (Al) / 6 AWG (Cu), Max. 2 AWG
  • Standards & Certification: CSA Certified, UL Listed
  • Panel Type: GE Panelboards
  • Family: E150 Line
  • Country of Origin: United States


Product Identification
  • UPC: 783164092080
  • GTIN: 00783164092080
