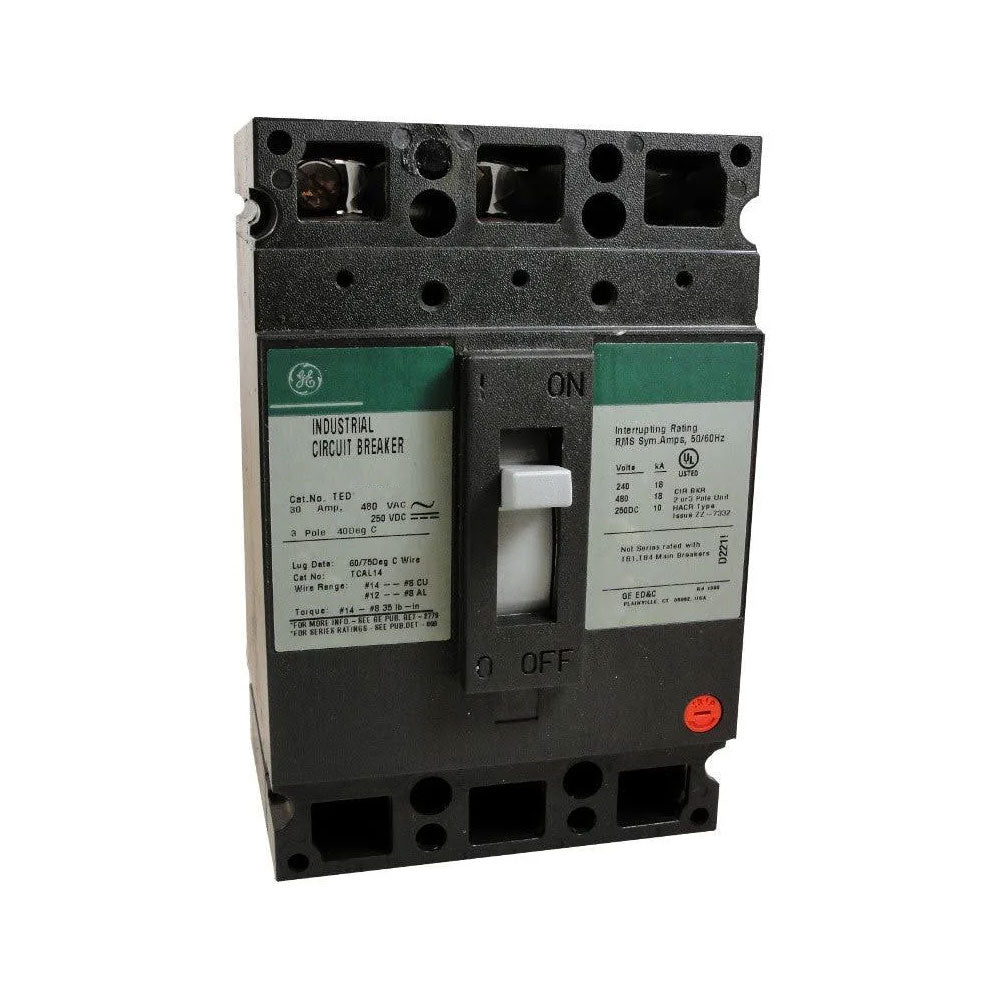

General Electric TED136045WL - Molded Case Breaker 45A 600V 3P
General Electric TED136045WL - Molded Case Breaker 45A 600V 3P

General Electric TED136045WL - Molded Case Breaker 45A 600V 3P

General Electric
Price
Save $302.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

⚡ Product Branding Information

Some General Electric products may now ship with ABB branding due to ABB’s acquisition of GE Industrial Solutions.

Depending on the manufacturing date or production batch, the item or packaging may display either GE or ABB branding.

Unless otherwise noted, these products are considered equivalent in form, fit, function, and specifications.

Please contact our team before placing your order if brand labeling or packaging is critical for your application.

Call for Price
General Electric TED136045WL is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase electrical systems. It features a 45A current rating and a 600V voltage rating, housed within a compact 150A/TED frame with a bolt-on panelboard connection for secure installation. The breaker is constructed with thermal-magnetic protection, offering both long-time and instantaneous trip functions, and operates within a temperature range of -25 to 70 °C. It complies with industry standards, being CSA Certified and UL Listed, ensuring safety and reliability. This breaker is typically applied in GE panelboards for commercial and industrial power distribution, where its 18kA interrupting rating at 480V provides robust short-circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 600V AC
  • Current Rating: 45A
  • Frame Size: 150A/TED
  • Poles: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-on Panelboard, Line/Load Lug Terminal
  • Phase Connection: 3-Phase, ABC
  • Wire Size: 8 to 6 AWG (Copper), MCM Size: Min. 4 AWG (Al) / 6 AWG (Cu), Max. 2 AWG
  • Functions: Long Time and Instantaneous Trip
  • Standards: CSA Certified, UL Listed
  • Panel Type: GE Panelboards
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Breaker Type: Standard
  • Protection: Thermal Magnetic
  • Family: E150 Line
  • Weight: 3 lb
  • Country of Origin: United States


Product Identification
  • UPC: 783164063202
  • GTIN: 00783164063202
