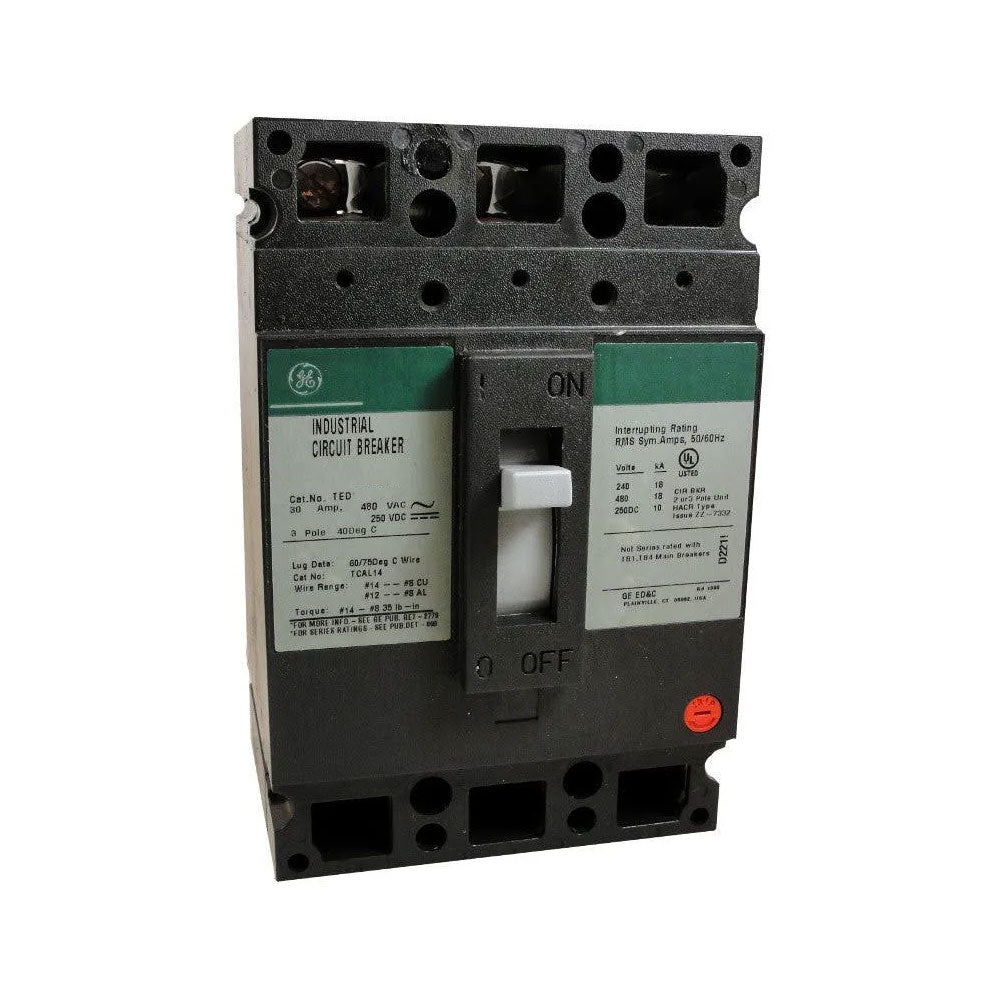

General Electric TED136030WL - 30A 3-Pole Circuit Breaker
General Electric TED136030WL - 30A 3-Pole Circuit Breaker

General Electric TED136030WL - 30A 3-Pole Circuit Breaker

General Electric
Price
Save $403.40
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon

⚡ Product Branding Information

Some General Electric products may now ship with ABB branding due to ABB’s acquisition of GE Industrial Solutions.

Depending on the manufacturing date or production batch, the item or packaging may display either GE or ABB branding.

Unless otherwise noted, these products are considered equivalent in form, fit, function, and specifications.

Please contact our team before placing your order if brand labeling or packaging is critical for your application.

Call for Price
General Electric TED136030WL is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact 4-1/8" x 6-5/16" bolt-on frame. This thermal-magnetic breaker, part of the E150 line, is CSA Certified and UL Listed for safety compliance and is engineered for operation in temperatures from -25°C to 70°C. Its 18kA interrupting rating at 480V makes it suitable for industrial panelboards, commercial buildings, and other applications requiring robust circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Frame Size: 150A/TED
  • Poles: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Bolt-on Panelboard, Line/Load Lug Terminals
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Phase Connection: 3-Phase, ABC
  • Compatible Panel Type: GE Panelboards
  • Wire Size Range: Minimum 4 AWG (Al) / 6 AWG (Cu), Maximum 2 AWG
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: CSA Certified, UL Listed
  • Dimensions: 4-1/8 in x 6-5/16 in
  • Weight: 3 lb
  • Country of Origin: United States


Product Identification
  • UPC: 783164063172
  • GTIN: 00783164063172
