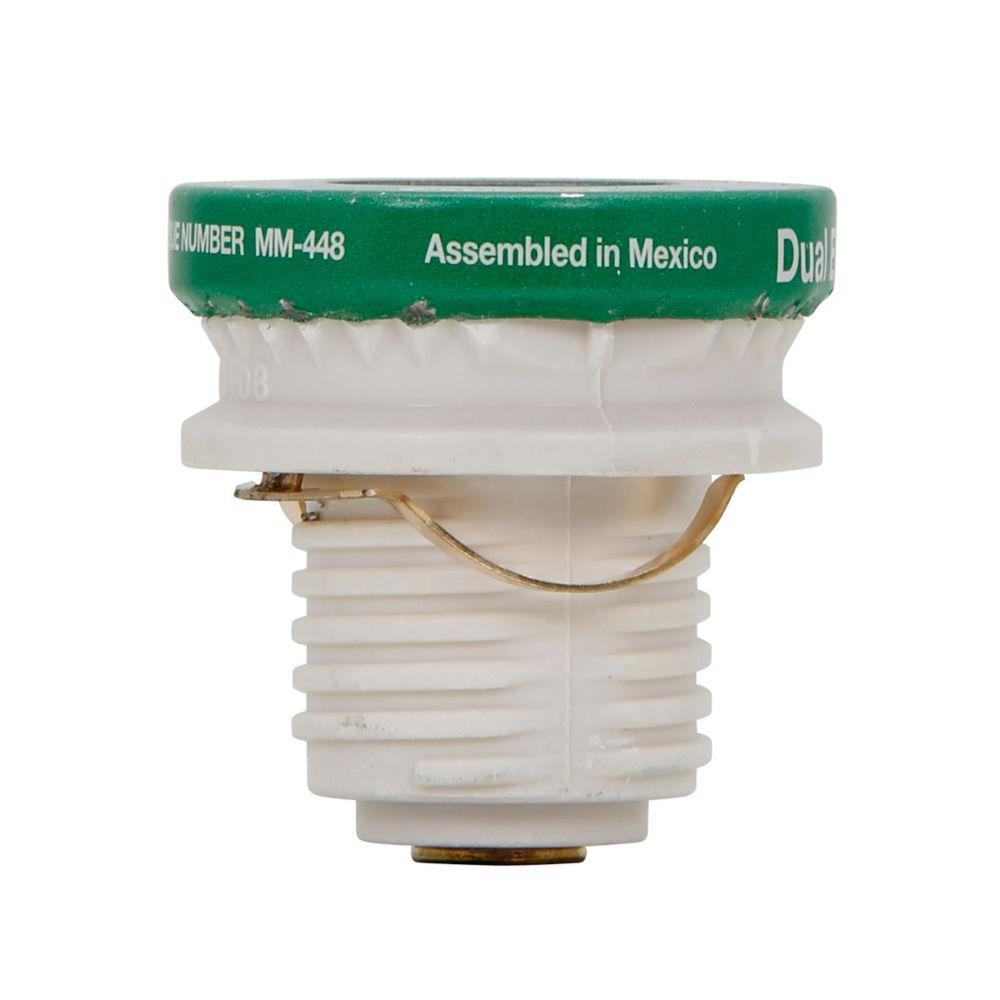

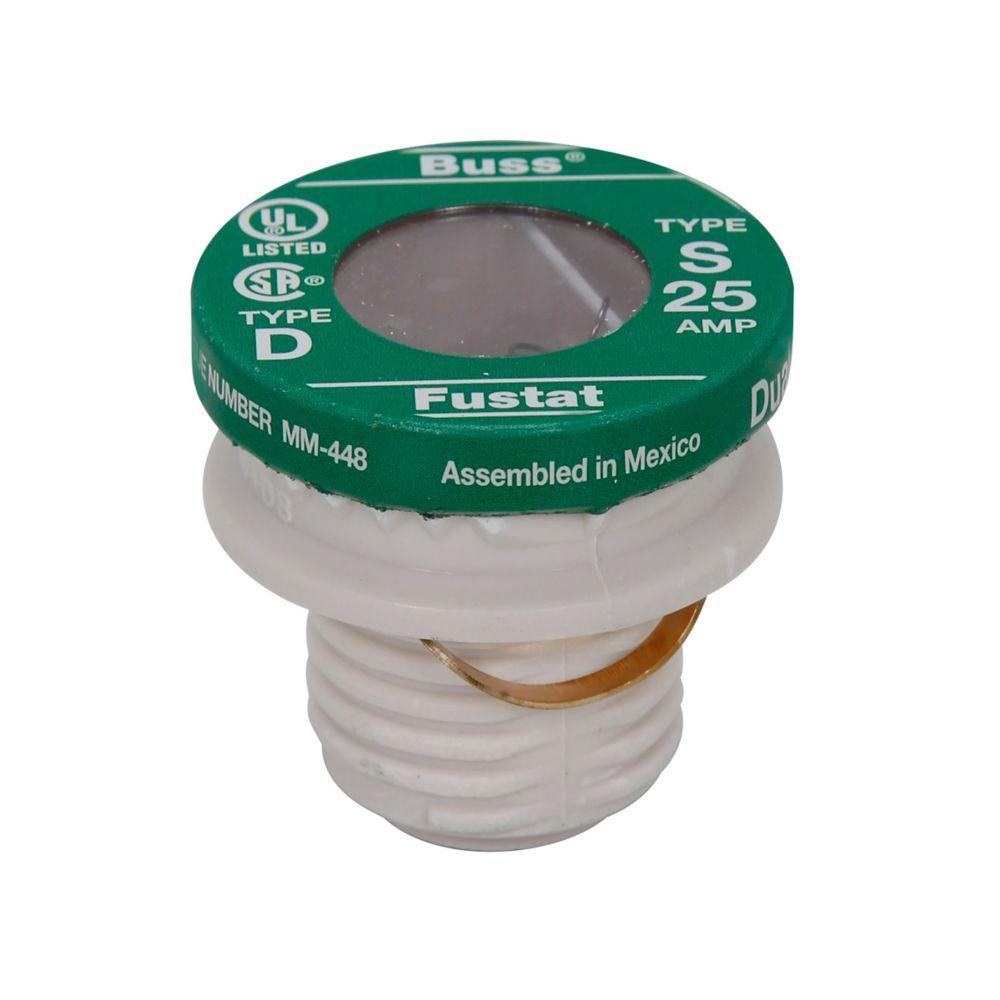

Bussmann S-25 - Class S Fuse 25A 250V (UL/CSA Certified)
Bussmann S-25 - Class S Fuse 25A 250V (UL/CSA Certified)
Bussmann S-25 - Class S Fuse 25A 250V (UL/CSA Certified)
Bussmann S-25 - Class S Fuse 25A 250V (UL/CSA Certified)

Bussmann S-25 - Class S Fuse 25A 250V (UL/CSA Certified)

Bussmann
Price
Save $-22.27
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann S-25 is a Class S fuse designed for providing branch circuit protection in industrial and commercial electrical systems, specifically engineered to prevent the installation of an overcurrent protective device with a higher ampere rating than the circuit conductors can safely handle. It features a 250V AC voltage rating and a 25A current rating, housed in a compact, non-interchangeable rejection-style base with dimensions of 1.16 in x 1.88 in x 0.72 in (L/D x H x W) and a weight of 0.4 lb. The fuse is constructed for reliable performance and complies with key industry standards including CE, UL 248-11 Guide JFHR, and CSA Class 1423-01, ensuring safe operation in demanding environments such as motor control centers, panelboards, and industrial machinery.

Key Features & Specifications
  • Type: Class S, non-interchangeable rejection base fuse
  • Voltage Rating: 250V AC
  • Current Rating: 25A
  • Dimensions: 1.16 in x 1.88 in x 0.72 in (Length/Depth x Height x Width)
  • Weight: 0.4 lb
  • Standards: CE, UL 248-11 Guide JFHR, CSA Class 1423-01
  • Applications: Branch circuit protection for panelboards, motor control centers, and industrial equipment
  • Country of Origin: Mexico


Product Identification
  • UPC: 5171210143
  • GTIN: 00051712101431
