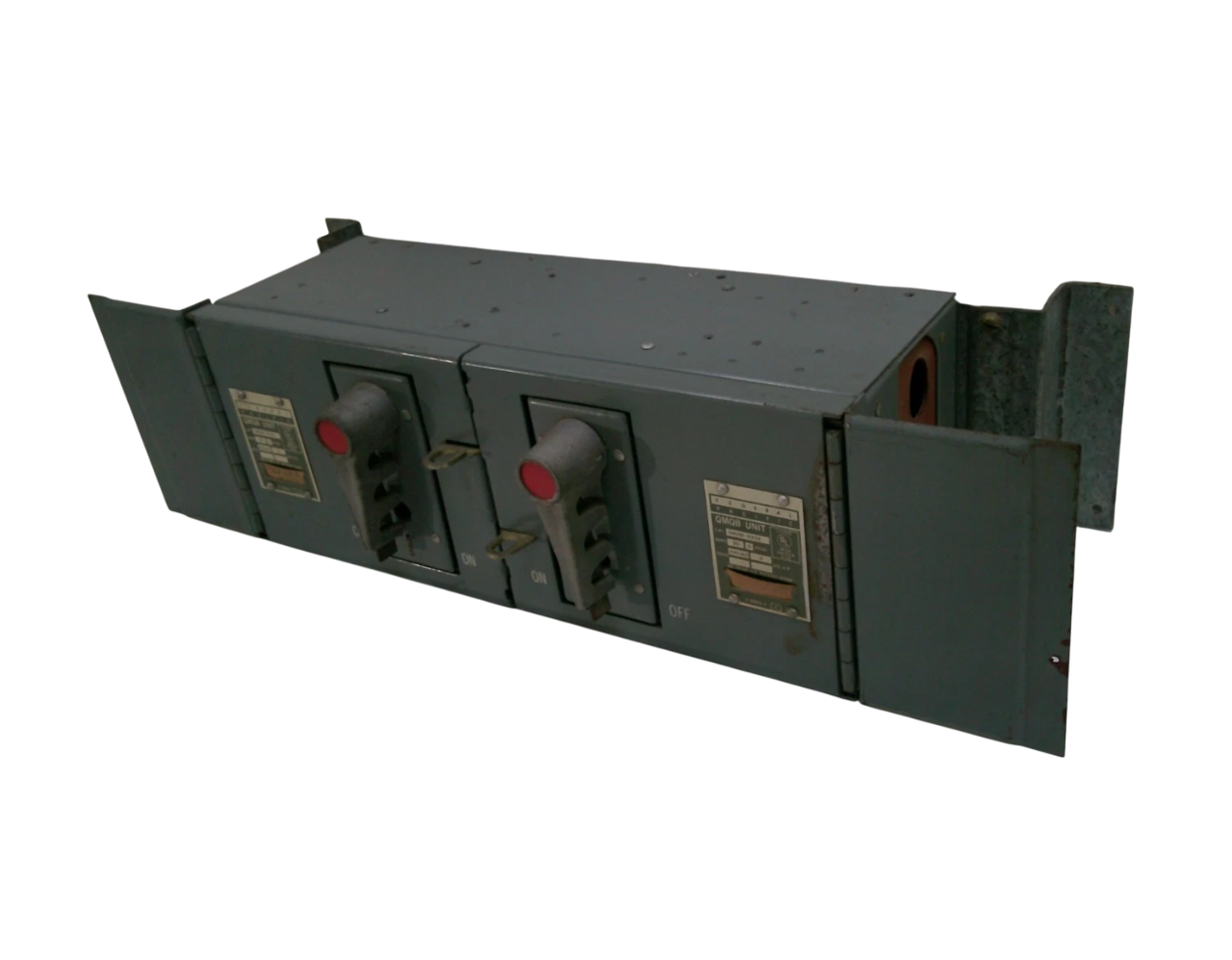

American/Federal Pacific QMQB6636R - Fusible Safety Switch 600V 60A (200kA AIC @480V)

American/Federal Pacific QMQB6636R is a panel-mounted fusible safety switch designed for industrial circuit protection and isolation. This 600V AC rated switch handles 60A current with a 200kA interrupting capacity at 480V, providing robust short-circuit protection. The dual/twin configuration features three poles in a NEMA 1 enclosure weighing 35 lb, constructed for industrial durability. It complies with industry standards for H, K, J, and R fuse classes, ensuring reliable operation in demanding environments. Typical applications include three-phase industrial power distribution, motor control centers, and electrical equipment isolation where high-fault current protection is required.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch, dual/twin configuration
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: NEMA 1 enclosure, 35 lb weight
• Standards: Compatible with H, K, J, R fuse classes
• Applications: Three-phase industrial power distribution, motor control, equipment isolation
• Switch Type: Fusible safety switch
• Configuration: Dual/Twin
• Poles: 3
• Phase: 3
• AIC rating: 200kA@480V
• Nema Rating: 1
• Fuse Class: H,K,J,R
• Item Subcategory: Panel Mount
• Family: QMQB Series

Product Identification

• GTIN: 00621037111134
