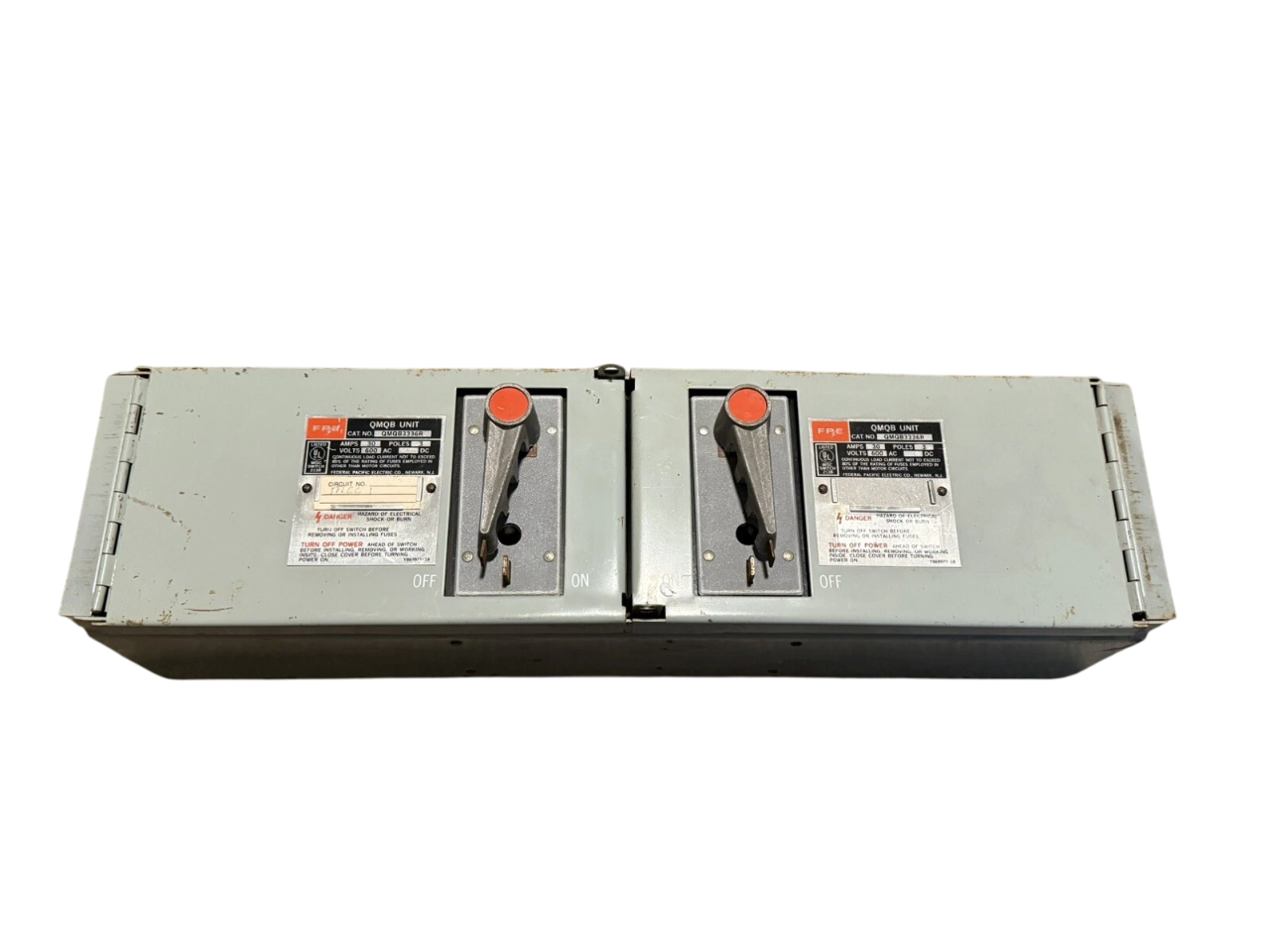

American/Federal Pacific QMQB3336 - Fusible Safety Switch 600V 30A (3-Pole Dual Configuration)

American/Federal Pacific QMQB3336 is a panel-mounted fusible safety switch designed for industrial circuit protection and isolation. This 3-pole switch operates at 600V AC with a 30A current rating and features a dual/twin configuration for enhanced electrical distribution. The robust construction includes a NEMA 1 enclosure weighing 30 lb, providing durable protection in industrial environments. It complies with industry standards for safety switches and offers 200kA interrupting capacity at 480V for reliable fault protection. Typical applications include industrial power distribution, motor control centers, and machinery protection systems where H, K, J, and R class fuses are utilized.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch, dual/twin configuration
• Voltage Rating: 600V AC
• Current Rating: 30A
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA @ 480V
• Fuse Class: H, K, J, R
• NEMA Rating: 1
• Weight: 30 lb
• Switch Style: Fusible
• Configuration: Dual/Twin
• Item Subcategory: Panel Mount
• Family: QMQB Series

Product Identification

• GTIN: 00621037033719
