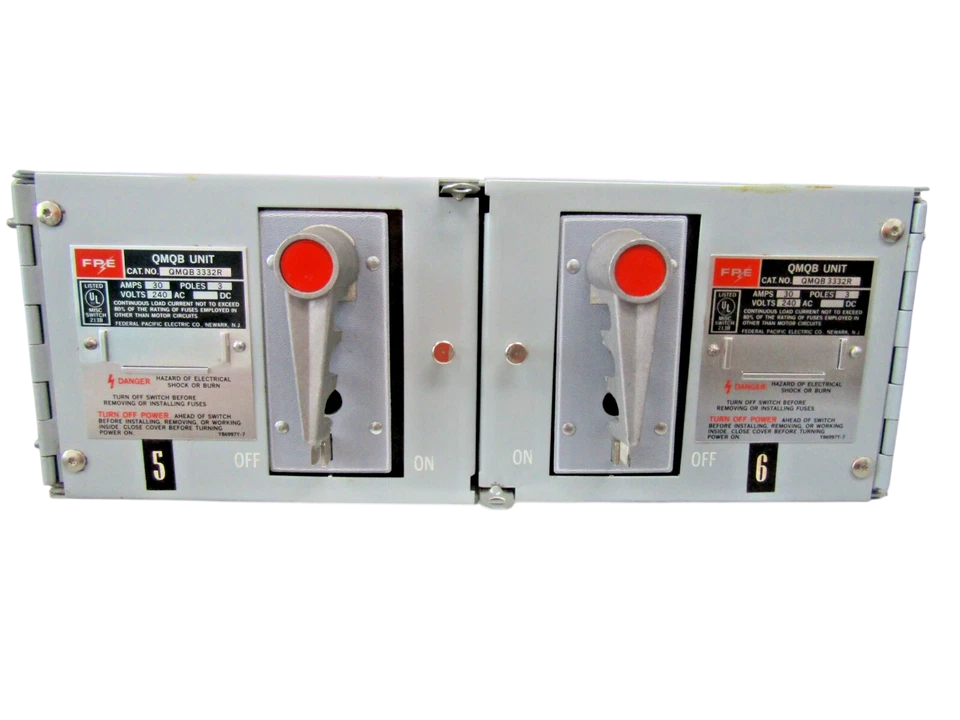

American/Federal Pacific QMQB3332R - Fusible Safety Switch 240V 30A (3-Pole, 200kA AIC)

American/Federal Pacific QMQB3332R is a panel-mounted fusible safety switch designed for industrial circuit protection and isolation. This 3-pole switch operates at 240V AC with a 30A current rating and features a dual/twin configuration for enhanced electrical protection. Constructed with a NEMA 1 enclosure weighing 30 lb, it provides robust physical durability for demanding environments. The switch complies with industry standards for H, K, J, and R fuse classes and offers an interrupting capacity of 200kA at 240V. Typical applications include industrial power distribution, motor control centers, and machinery protection systems where reliable circuit isolation is critical.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch, dual/twin configuration
• Voltage Rating: 240V AC
• Current Rating: 30A
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA @ 240V
• Fuse Class: H, K, J, R
• NEMA Rating: 1
• Weight: 30 lb
• Switch Style: Fusible
• Configuration: Dual/Twin
• Item Subcategory: Panel Mount
• Family: QMQB Series
• Manufacturer: American/Federal Pacific
