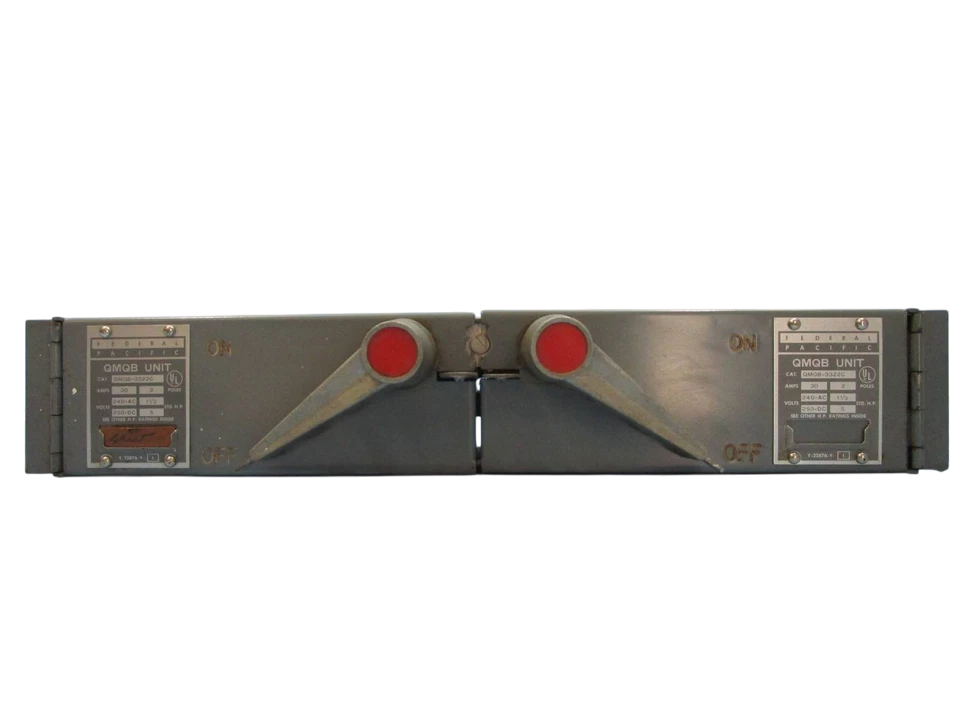

American/Federal Pacific QMQB3322C - Fusible Safety Switch 30A 240V (200kA AIC Rating)

American/Federal Pacific QMQB3322C is a panel-mounted fusible safety switch designed for industrial circuit protection and isolation. This dual-configuration switch operates at 240V AC with a 30A current rating and features 2 poles for single-phase applications. Constructed with a NEMA 1 enclosure weighing 30 lb, it provides robust physical protection in demanding environments. The switch complies with industry standards for H, K, J, and R fuse classes and offers an interrupting capacity of 200kA at 240V. Typical applications include industrial control panels, machinery disconnects, and electrical distribution systems requiring reliable circuit isolation and overload protection.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch, dual/twin configuration
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: NEMA 1 enclosure, 30 lb weight
• Standards: Compatible with H, K, J, R fuse classes
• Applications: Industrial control panels, machinery disconnects, electrical distribution systems
• Switch Type: Fusible safety switch
• Configuration: Dual/Twin
• Poles: 2
• AIC Rating: 200kA@240V
• Nema Rating: 1
• Phase: 1
• Fuse Class: H,K,J,R
• Item Subcategory: Panel Mount
• Family: QMQB
• Type: QMQB
