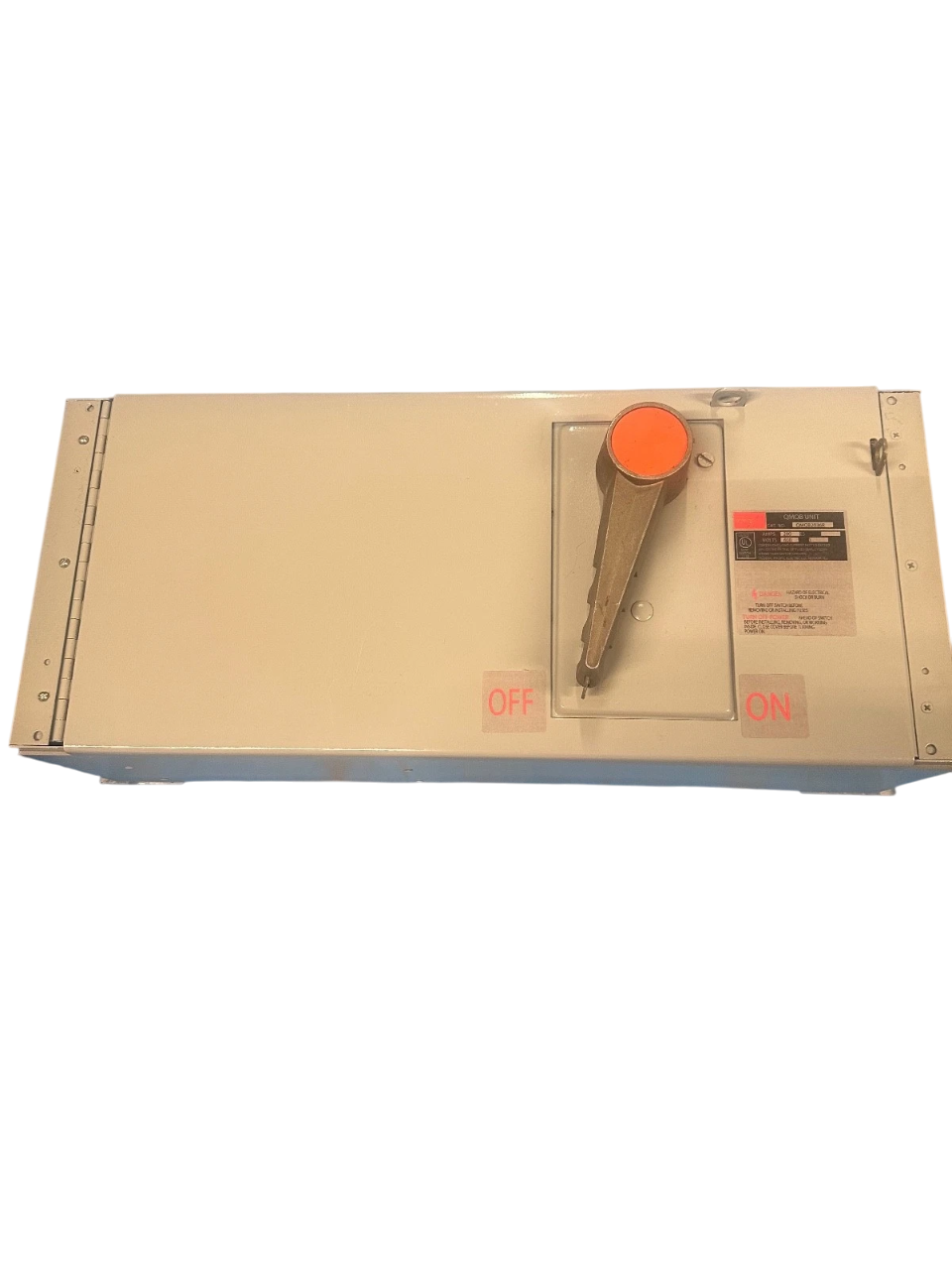

American/Federal Pacific QMQB2036H - Fusible Safety Switch 200A 600V (3-Pole NEMA 1)

American/Federal Pacific QMQB2036H is a panel-mounted fusible safety switch designed for industrial circuit protection and isolation in three-phase electrical systems. The switch operates at 600V AC with a 200A current rating and features a 200kA interrupting capacity at 480V for reliable fault protection. Its robust construction includes a NEMA 1 enclosure weighing 40 lb with three-pole single configuration compatible with SKHA frames. This unit complies with industry standards for H, K, J, and R fuse classes, making it suitable for industrial power distribution, motor control centers, and heavy machinery applications where reliable circuit protection is required.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch, QMQB family
• Voltage Rating: 600V AC
• Current Rating: 200A
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA @ 480V
• Fuse Class: H, K, J, R
• NEMA Rating: 1
• Compatible Frames: SKHA
• Weight: 40 lb
• Switch Style: Fusible
• Item Subcategory: Panel Mount

Product Identification

• GTIN: 00785901995258
