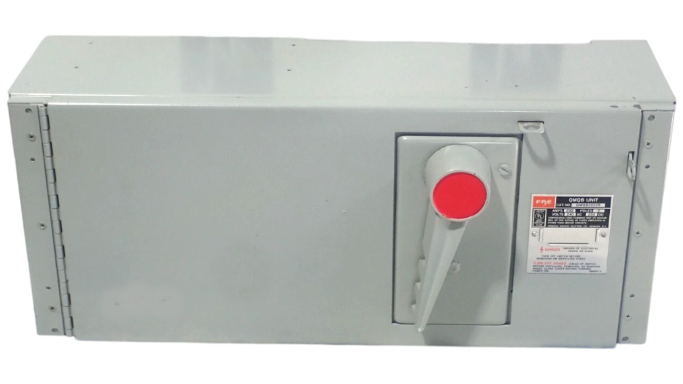

American/Federal Pacific QMQB2022R - Fusible Safety Switch 200A (240V, 200kA AIC)

American/Federal Pacific QMQB2022R is a panel-mounted fusible safety switch designed for industrial circuit protection and isolation. The switch operates at 240V AC with a 200A current rating and features a 200kA interrupting capacity at 240V for reliable fault protection. Constructed with a robust NEMA 1 enclosure weighing 40 lb, it utilizes a single configuration with 2 poles for single-phase applications. This unit complies with industry standards for H, K, J, and R fuse classes and is compatible with SGLA frames. Typical applications include industrial power distribution, motor control centers, and electrical service equipment where fused protection and visible disconnect capability are required.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch, QMQB type
• Voltage Rating: 240V AC
• Current Rating: 200A
• Configuration: Single
• Poles: 2
• Phase: 1
• AIC Rating: 200kA@240V
• Fuse Class: H, K, J, R
• NEMA Rating: 1
• Compatible Frames: SGLA
• Switch Style: Fusible
• Weight: 40 lb
• Item Subcategory: Panel Mount
• Family: QMQB
