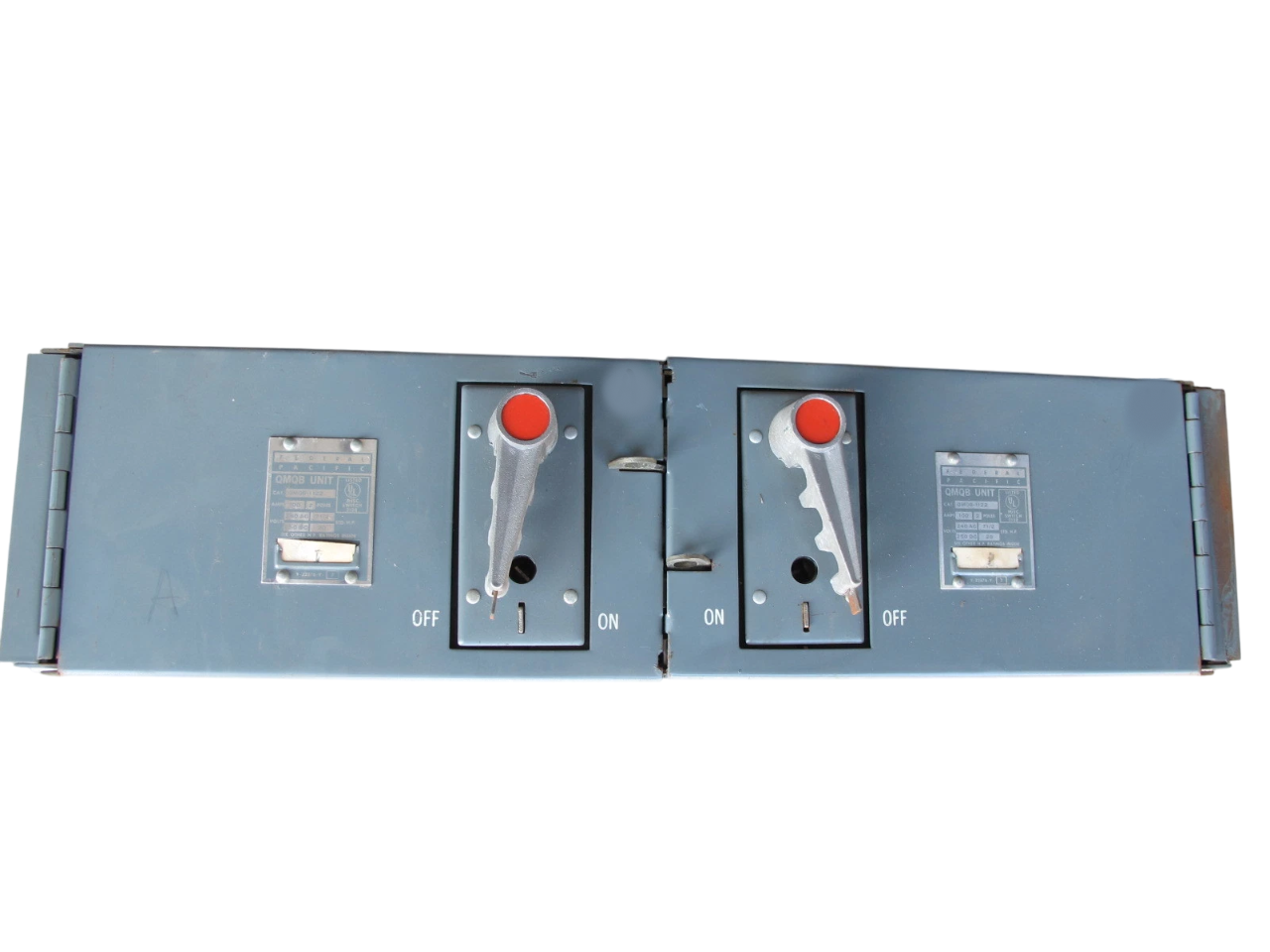

American/Federal Pacific QMQB1136HJ - Fusible Safety Switch 100A 600V (3-Pole Dual Configuration)

American/Federal Pacific QMQB1136HJ is a panel-mounted fusible safety switch designed for industrial circuit protection and isolation in three-phase electrical systems. This heavy-duty switch features a 600V voltage rating and 100A current capacity with a 200kA interrupting rating at 480V for reliable fault protection. The unit employs a dual/twin configuration with three poles and robust construction weighing 35 lb, designed for compatibility with TJK frames. It meets NEMA 1 enclosure standards and accommodates H, K, J, and R fuse classes for versatile industrial applications including motor control centers, power distribution panels, and heavy machinery protection.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch, dual/twin configuration
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: Compatible with TJK frames
• Standards: NEMA 1 enclosure rating
• Applications: Industrial power distribution, motor control centers, machinery protection
• Switch Type: Fusible safety switch
• Configuration: Dual/Twin
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA@480V
• Fuse Class: H, K, J, R
• Weight: 35 lb
• Family: QMQB Series
• Item Subcategory: Panel Mount

Product Identification

• GTIN: 00782113206004
