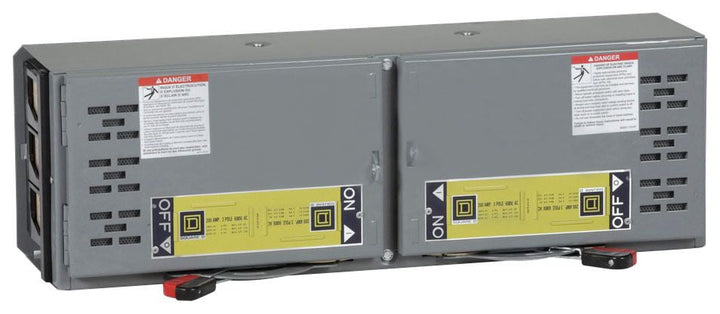

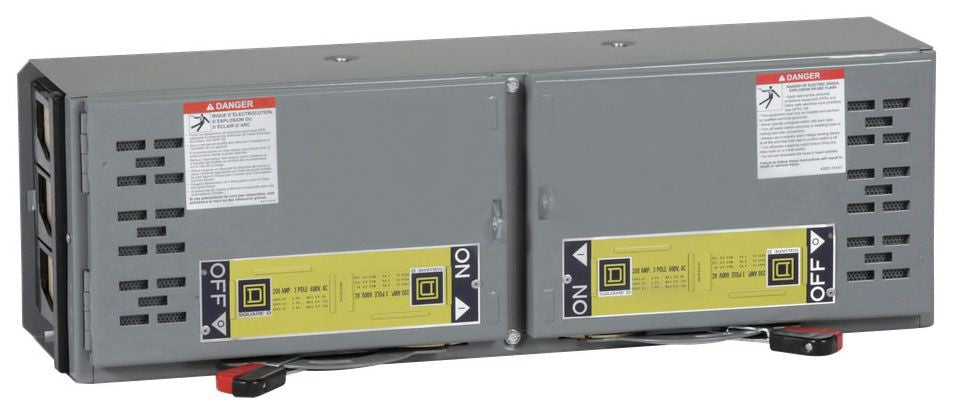

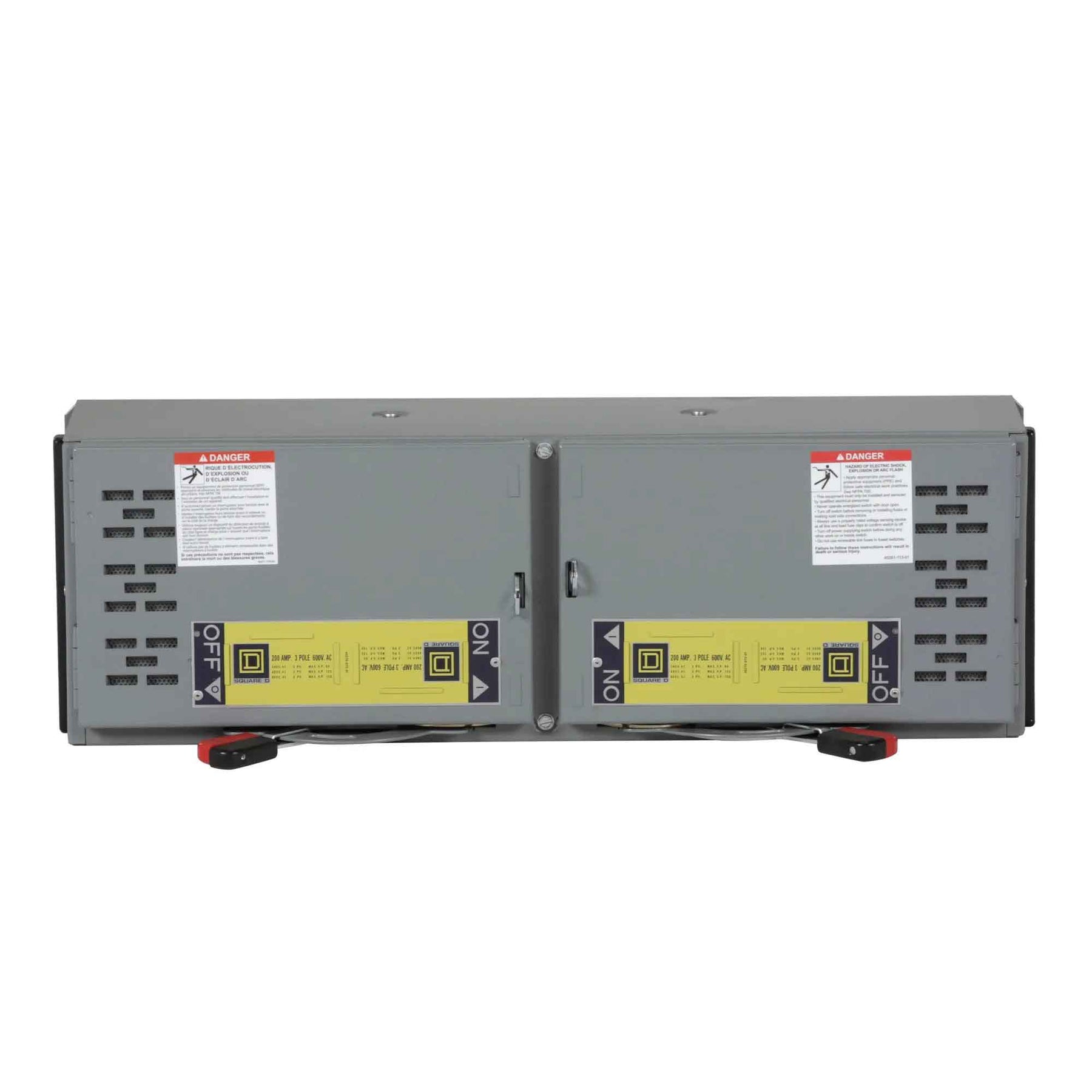

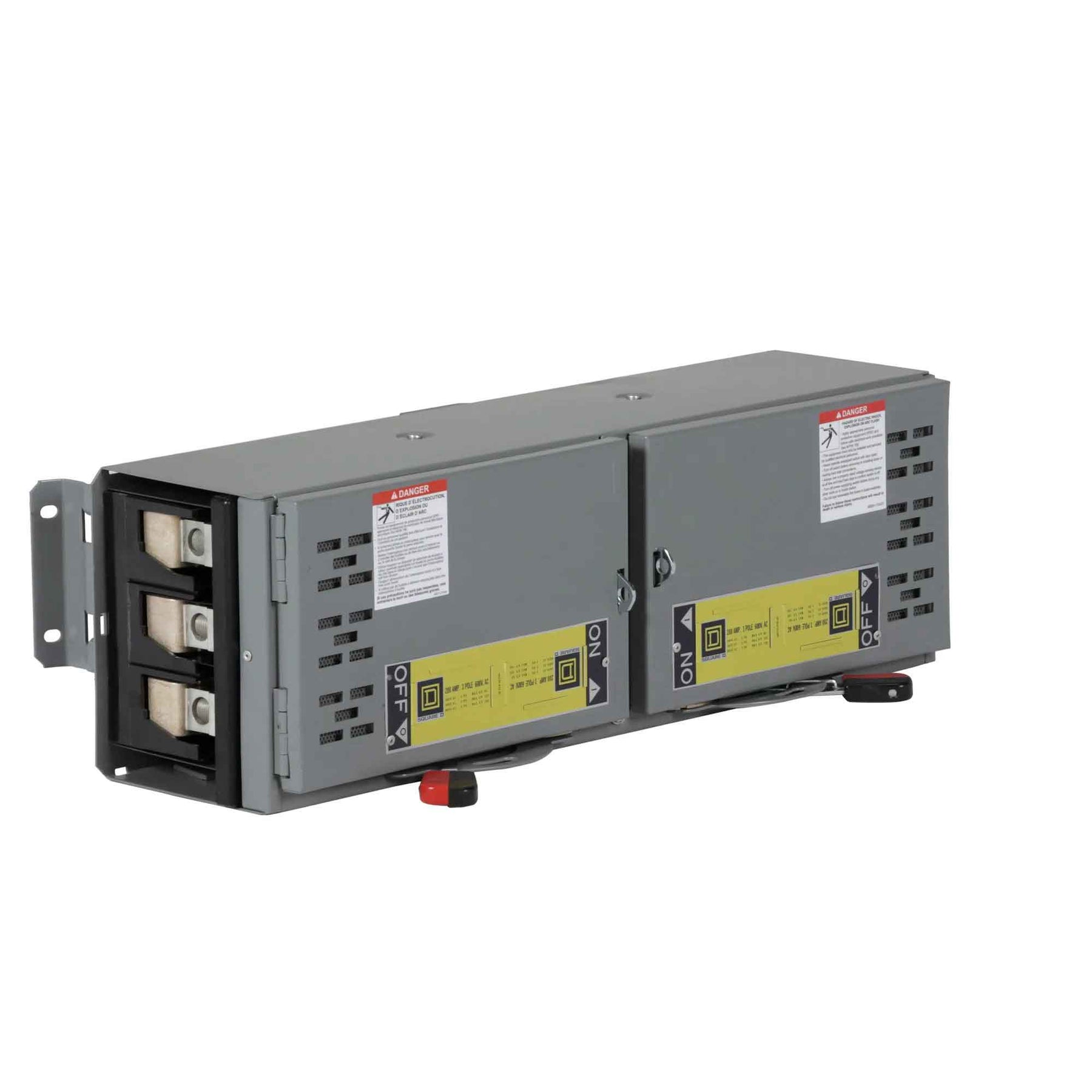

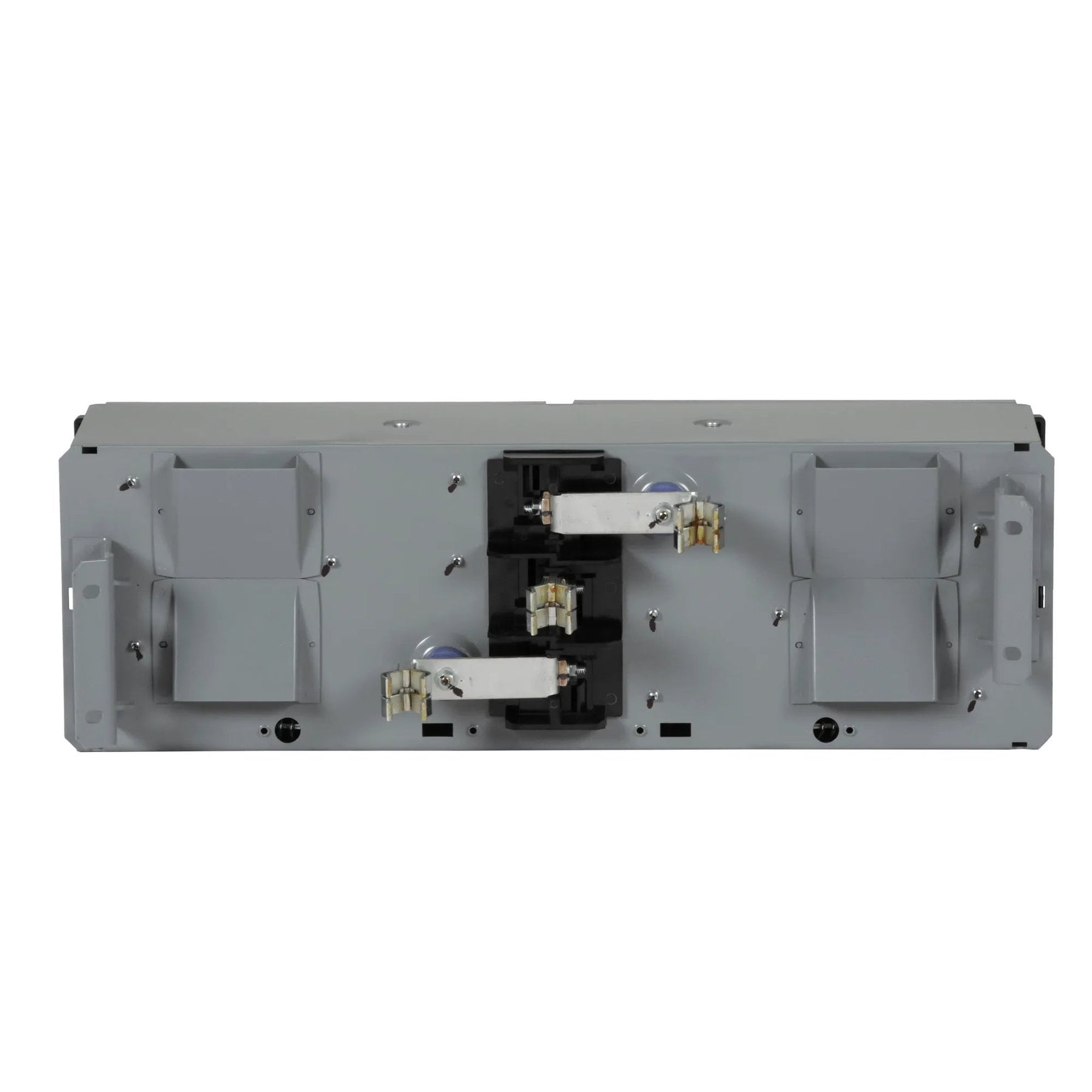

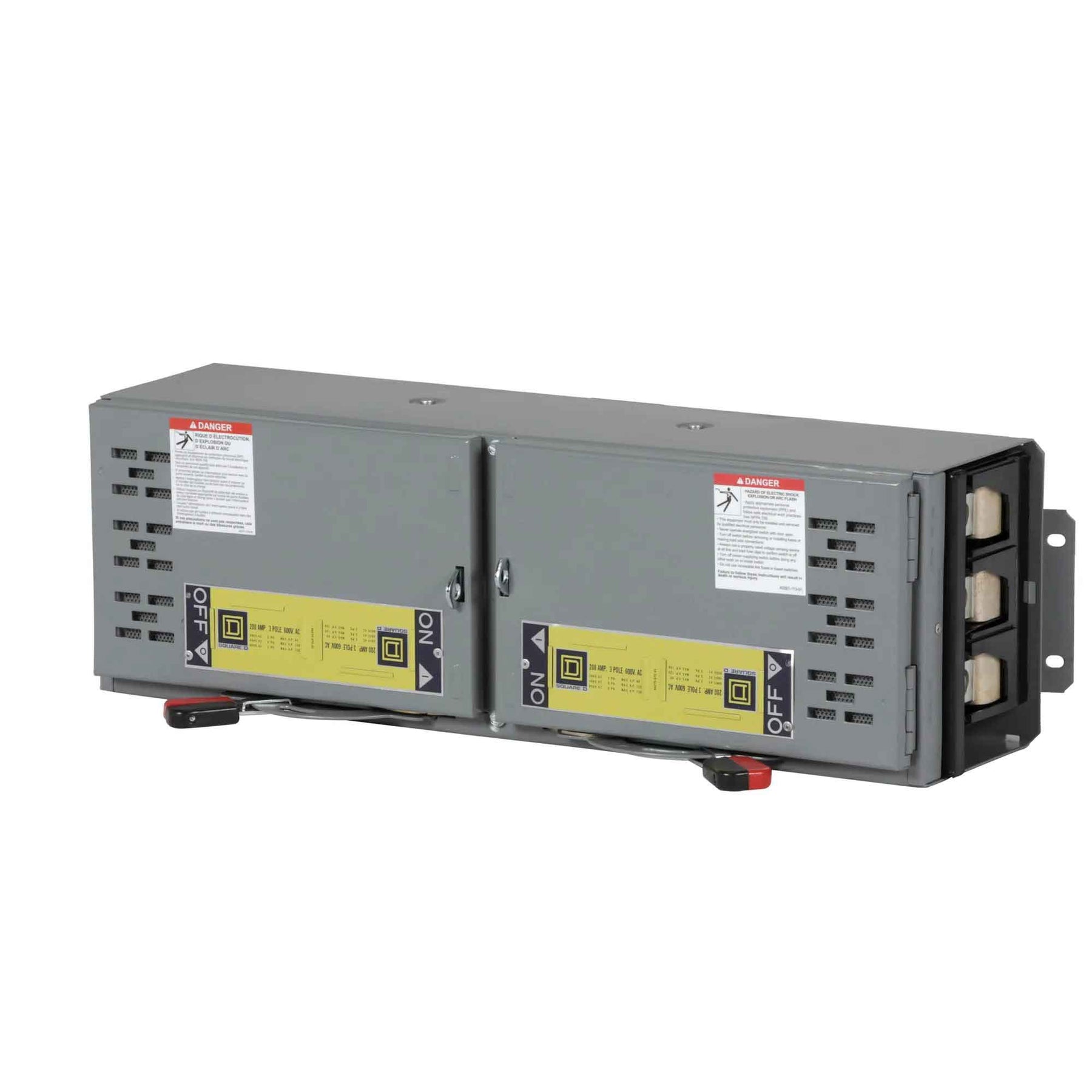

Square D QMJ364T is a fusible safety switch designed for providing reliable circuit protection and isolation in industrial three-phase power distribution systems. It features a 600V AC voltage rating and a 200A current rating, housed in a robust panel-mount enclosure measuring 229 mm H x 112.78 mm W x 78.49 mm D and weighing 45.049 lb. The switch is certified to CSA and UL standards and offers a high 200kA interrupting capacity at 480V for enhanced safety. Its design is typically applied in industrial facilities, manufacturing plants, and commercial buildings for motor control and feeder circuit protection.
Key Features & Specifications
Type: Fusible Safety Switch, Panel Mount, QMJ Type
Voltage Rating: 600V AC
Current Rating: 200A
Configuration: Dual/Twin
Poles: 3
Phase: 3
AIC Rating: 200kA @ 480V
Fuse Class: J
NEMA Rating: 1
Dimensions: 229 mm H x 112.78 mm W x 78.49 mm D (9.02 in x 4.44 in x 3.09 in)
Weight: 45.049 lb
Standards: CSA, UL
Compatible Frames: ED
Country of Origin: United States
Product Identification
UPC: 785901209027
GTIN: 00785901209027
Family: QMB Series E1-E2
Same-day Shipping Available
Same-day Delivery Availabile
24/7 Customer Support
Square D QMJ364T - Fusible Safety Switch 200A 600V 3P
